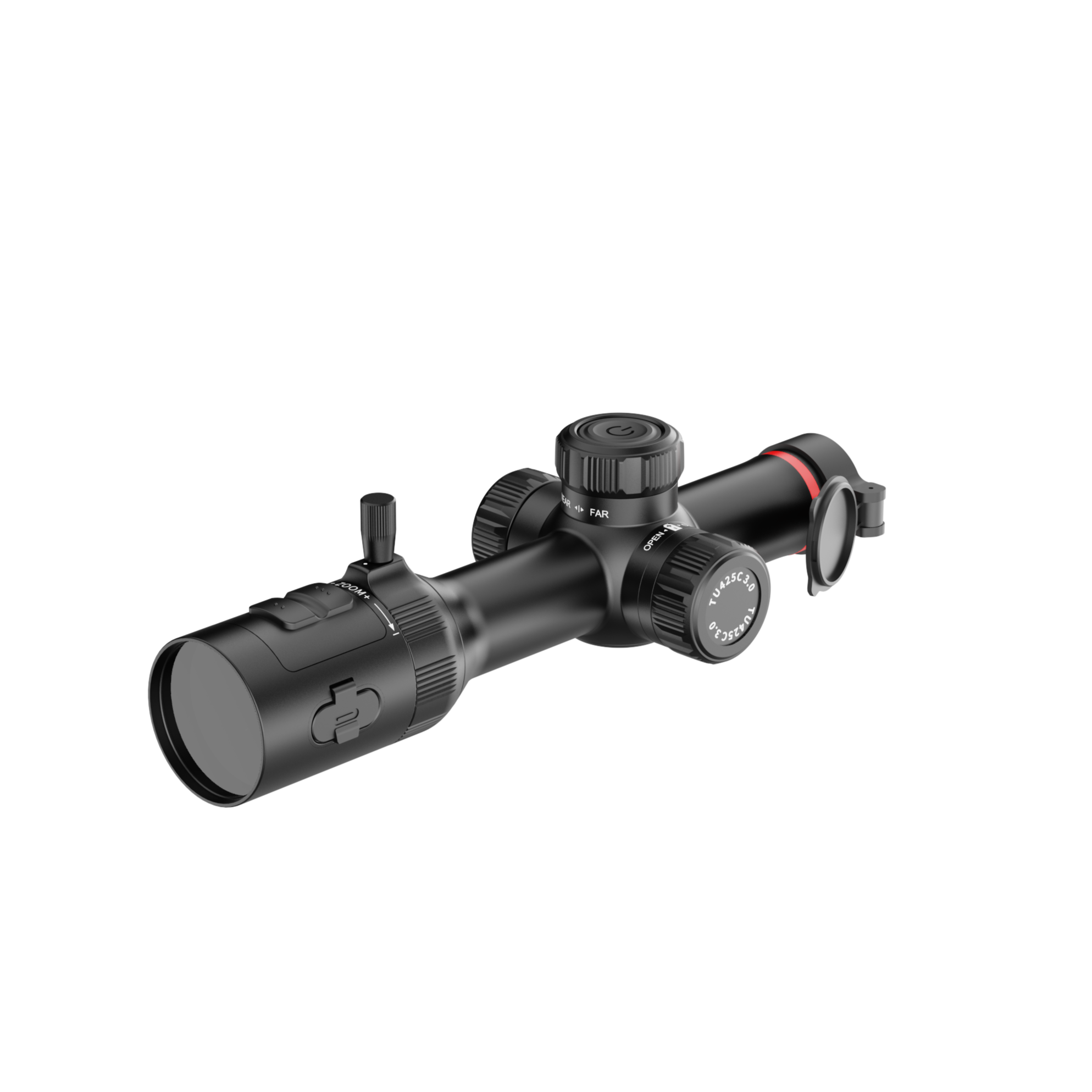

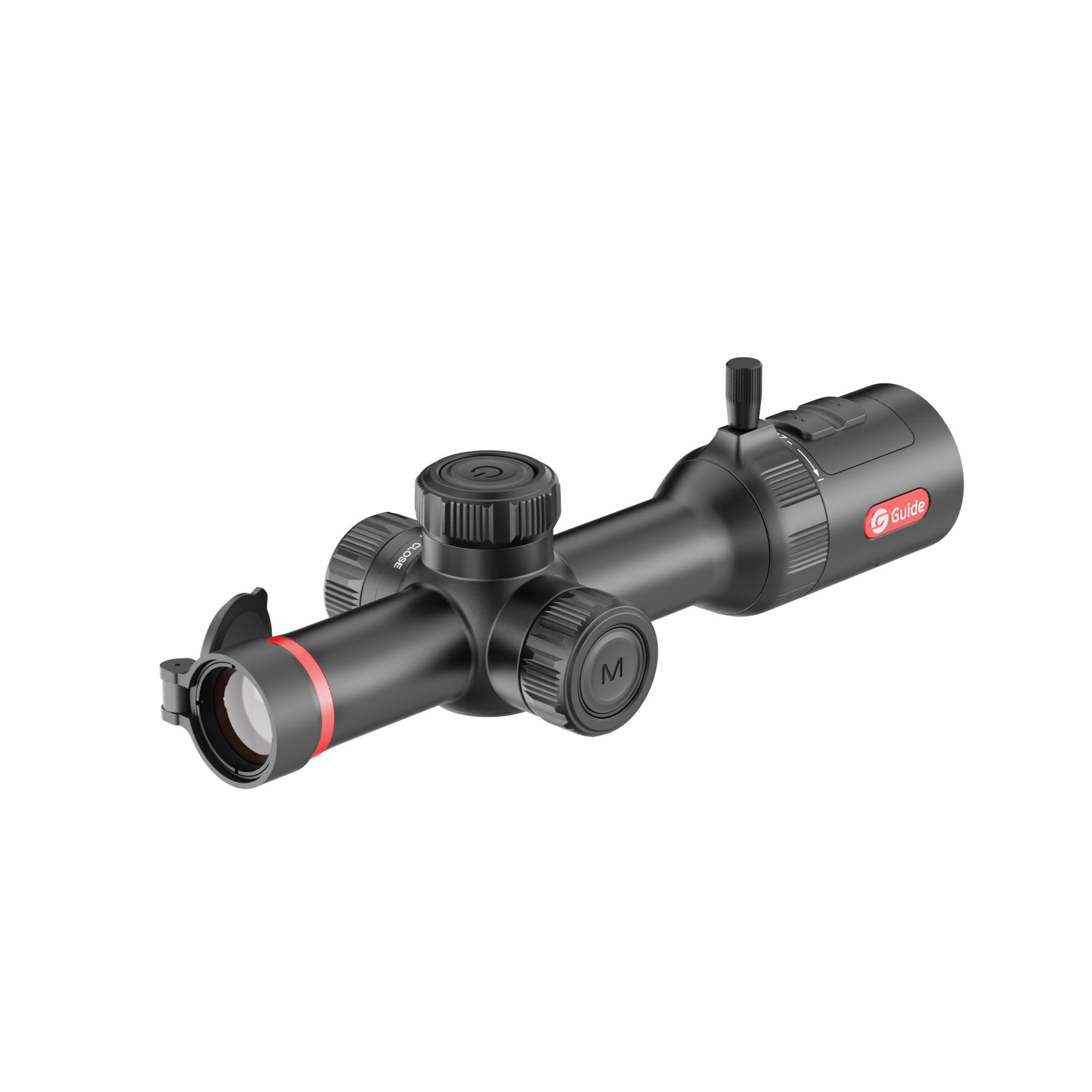

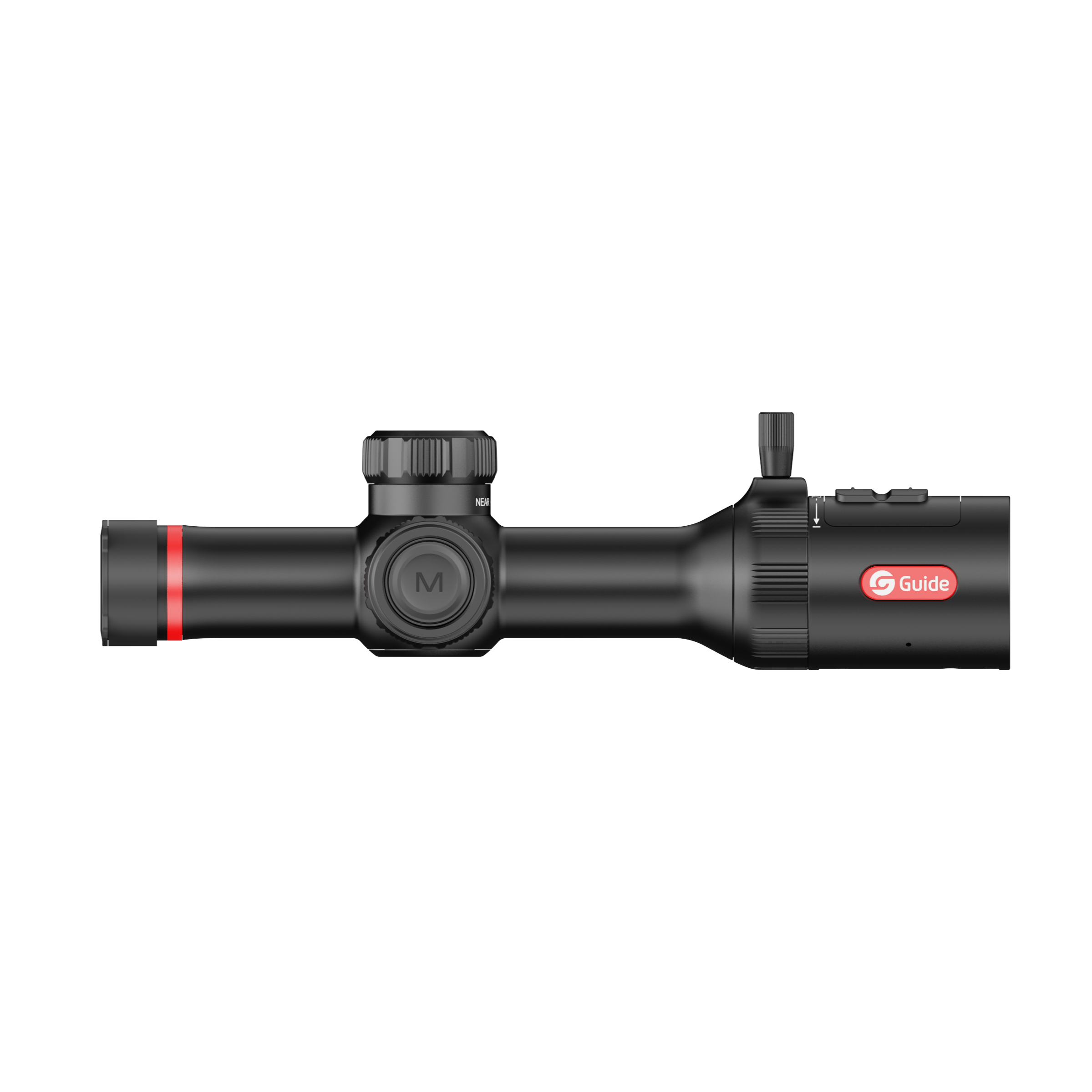

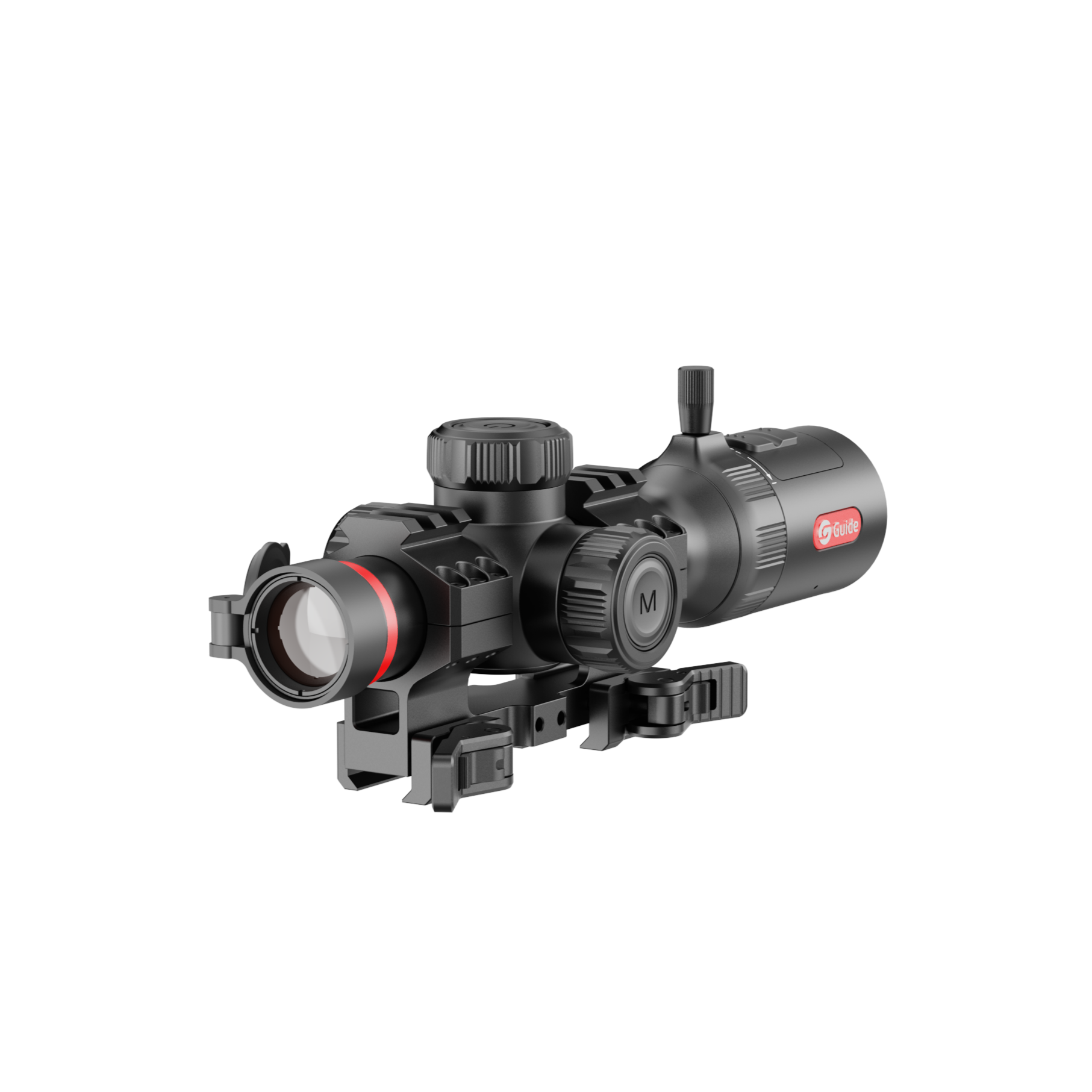

TU 425 C 3.0
Compact Thermal Riflescope with Touchscreen
!! NEW 2025 !!
- 400x300 Thermal Sensor
- 1.43'' TOUCHSCREEN AMOLED 466×466
- 1400yd Detection Range
- Compact LPVO Style
- Shutterless design, no image freezing and clicking sound
- Dual battery system: 1x internal (USB-C rechargeable) and 1x external (18650)
- 12 hours battery life
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||
| Resolution | 400×300@12μm | |||
| NETD | 20mK | |||
| Frame rate | 50 Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 25mm, F1.0 | |||
| Field of view | 8.2°×8.2° | |||
| FOV m@100m | 14×14 | |||
| Magnification | 0.7x~2.8x | |||
| Detection range | 1300m/1400yd | |||
| Focus | Manual | |||
| Display | ||||
|---|---|---|---|---|
| Display type | 1.43'' AMOLED TOUCHSCREEN 466×466 | |||
| Color palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia | |||
| Hardware | ||||
|---|---|---|---|---|
| WIFI | 2.4G, 5G | |||
| Interface | USB-C (Charge/USB2.0) | |||
| Tube diameter | Standard 30 mm | |||
| Others | Microphone, Bluetooth | |||
| System | ||||
|---|---|---|---|---|
| Recording function | Photo/Video (Audio recording included) | |||
| Memory capacity | 32GB | |||
| Power | ||||
|---|---|---|---|---|
| Battery type | 18500 ×1 Battery (Built-in) and 18650 ×1 Battery (External) | |||
| Operating time | 12 hours | |||
| Environmental | ||||
|---|---|---|---|---|
| Operating temp. | -20°C to 50°C / -4°F to +122°F | |||
| Shock | 6000J/1200G | |||
| Encapsulation | IP68 | |||
| Physical | ||||
|---|---|---|---|---|

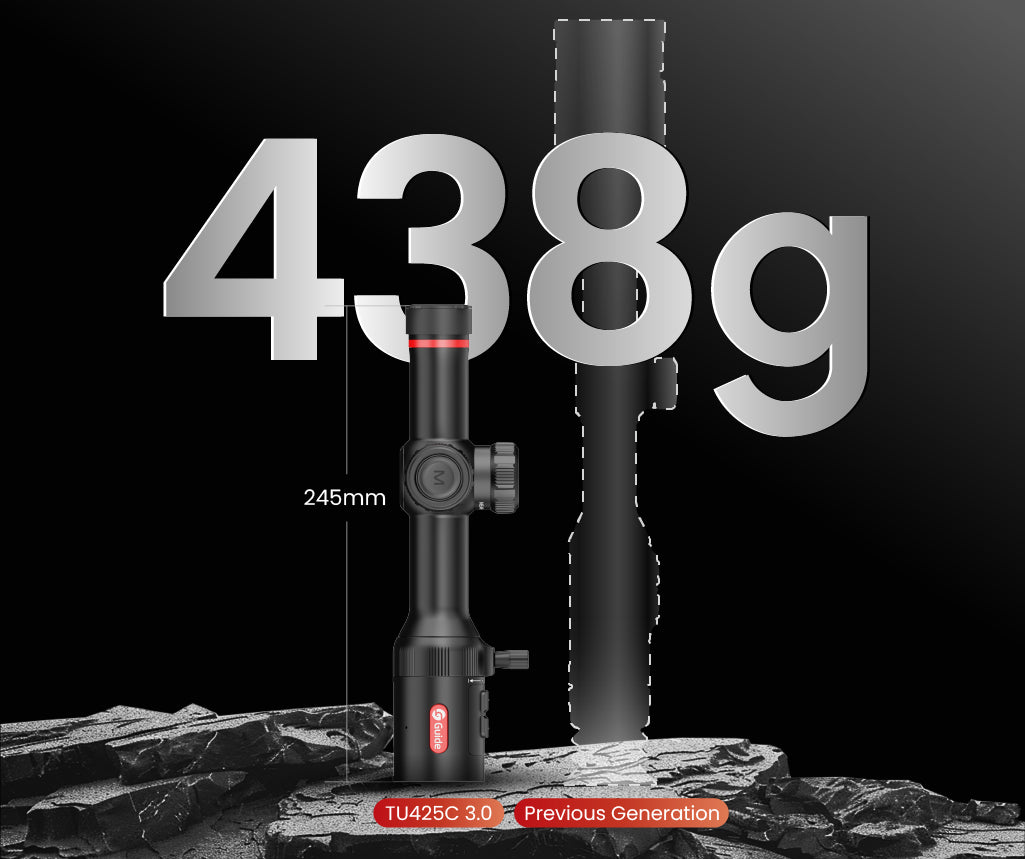

| Weight (g/oz) | 438/15.45 | |||
| Size (mm/in) | 245×89×70/9.65×3.50×2.76 | |||

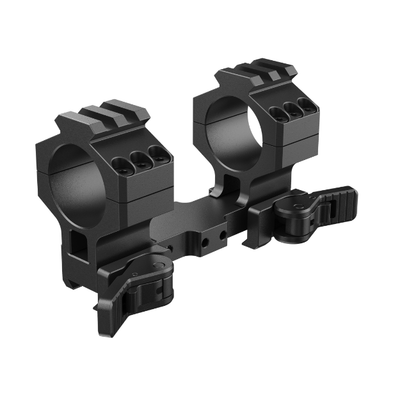

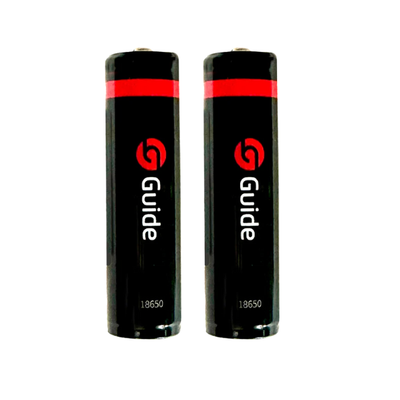

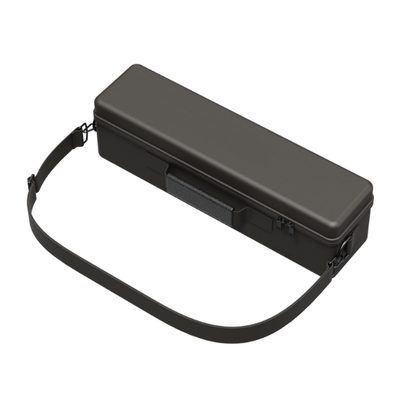

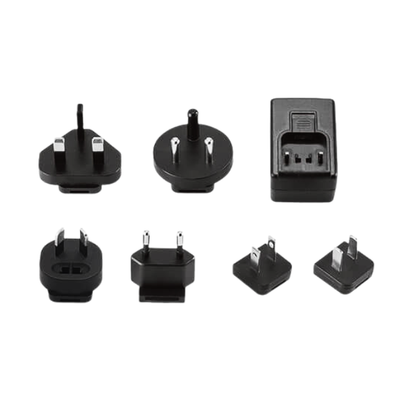

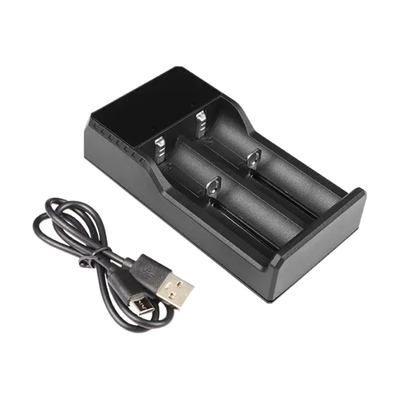

| Standard | Device, Lens Cover, Quick-Release Scope Mount, Carry Bag, 18650 Battery ×2, Battery Charger, 5V 2A Adapter, USB-A to USB-C Cable, Quick Start Guide, Warranty Card | |||
| Optional | Bluetooth Remote Control, 18650 Battery | |||
Pre-order today and be the first to receive it! Shipping begins September 2025.
Please contact us to be added to the waiting list contact@guideir-thermal.com

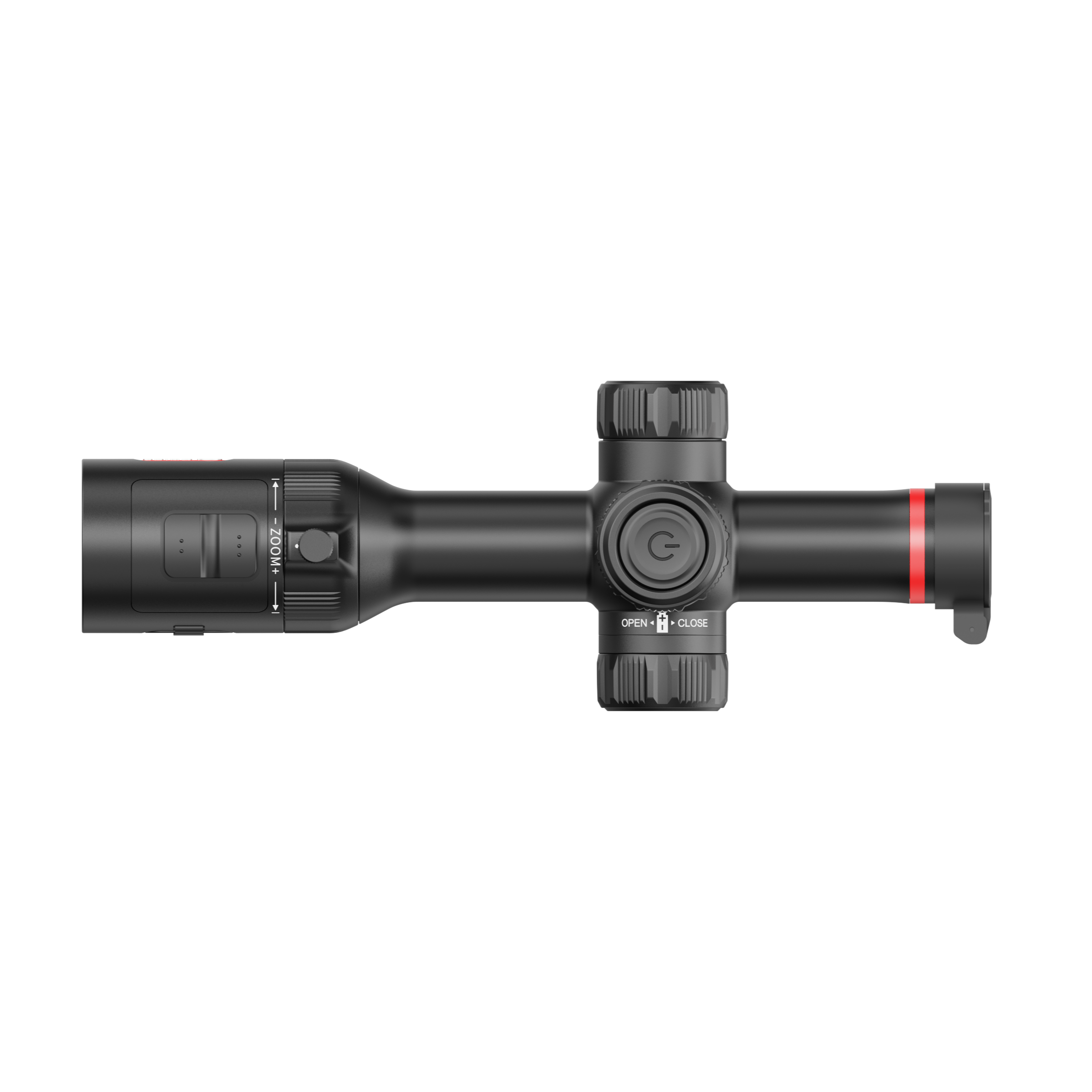

TU 425 C 3.0 Thermal Riflescope with Touchscreen 1X 400x300 25mm
Sale price$2,089.00

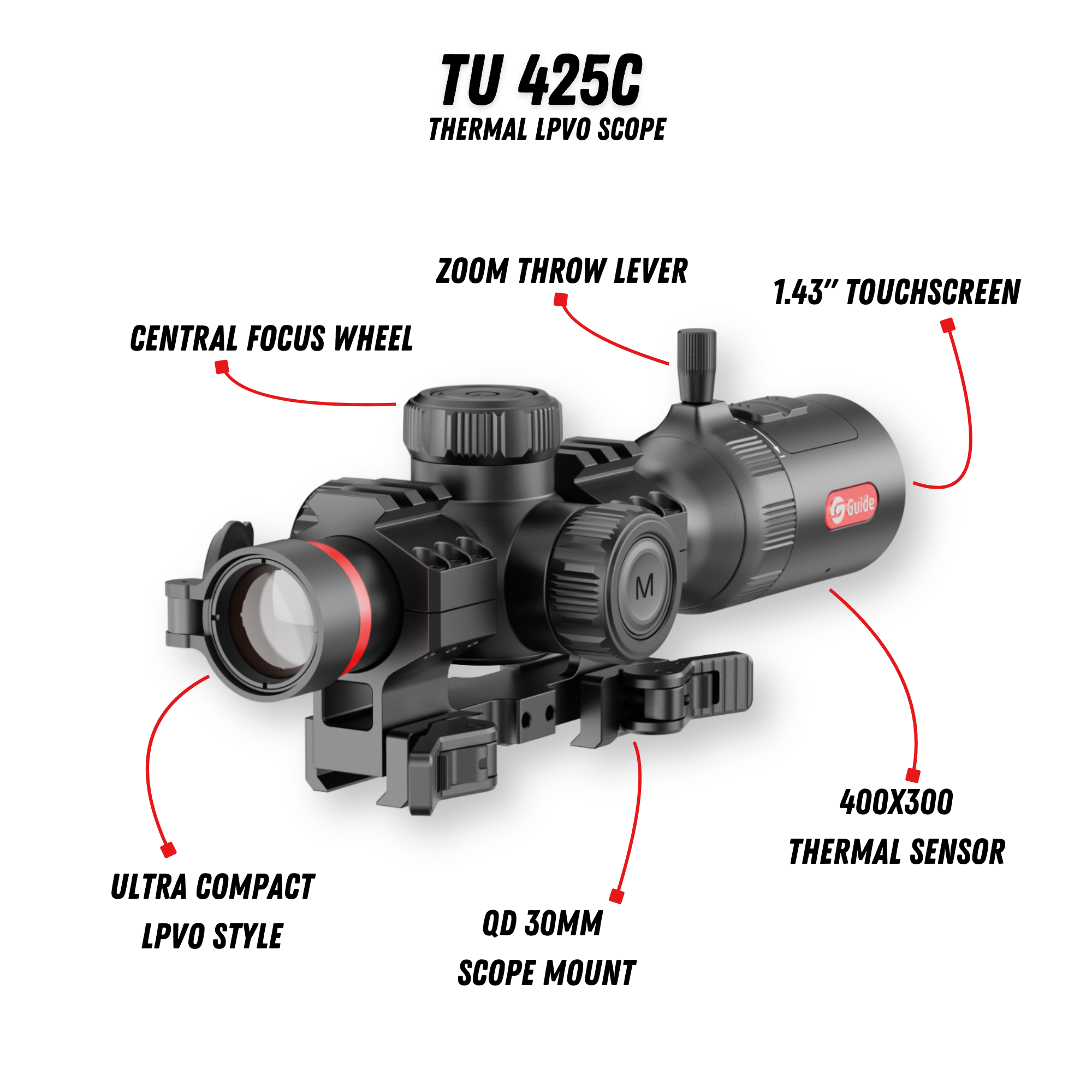

- LPVO Style Ultra Light & Compact: By adopting a LPVO style design, the TU C 3.0 Series revolutionarily combines ultra-compact housing with advanced thermal technology, providing a superior size and weight experience compared to traditional scopes.
- Ultra-Clear Sensitivity: 20mK NETD for exceptional infrared imaging.

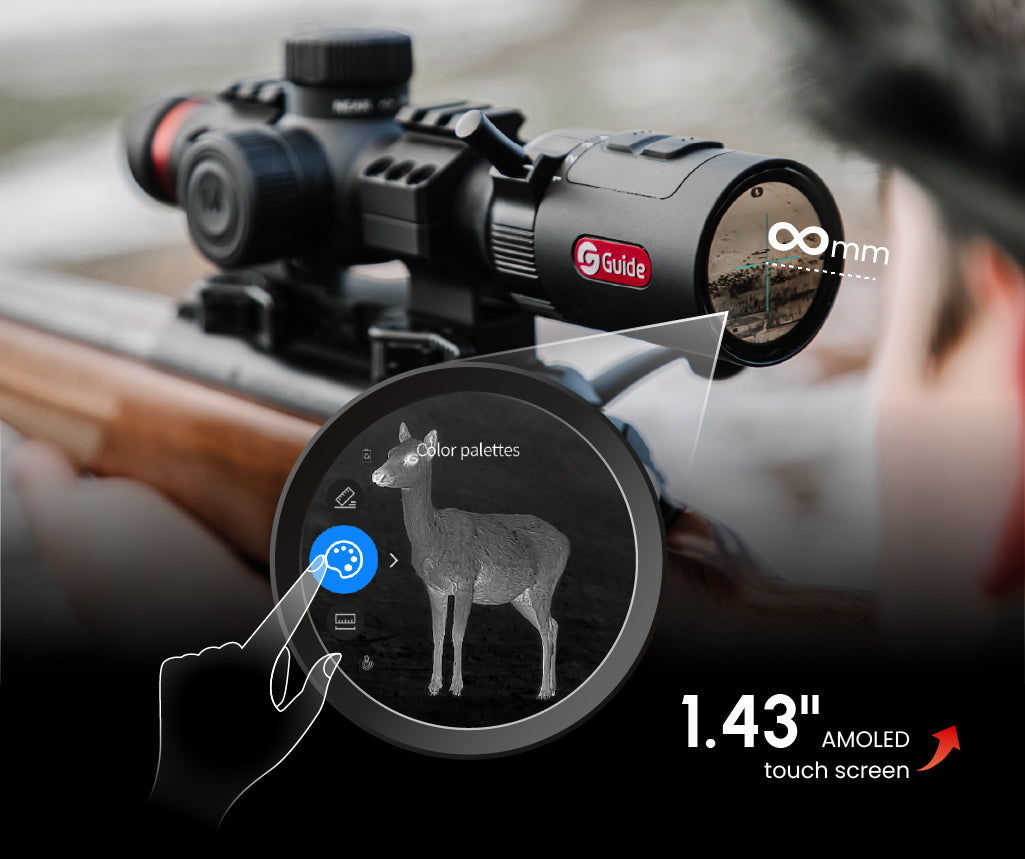

- Comfortable Viewing Experience: 1.43'' AMOLED TOUCHSCREEN 466×466 display for clear, smooth visuals.
- Shutterless Design: Innovative 3.0 shutterless design ensures smooth, uninterrupted visuals.
- Seamless Control: Centrally positioned focus wheel & zoom lever, ergonomically designed for effortless operation.
- Rugged Design: IP68-rated, shock resistance up to 6000J.
400x300
Thermal Sensor
