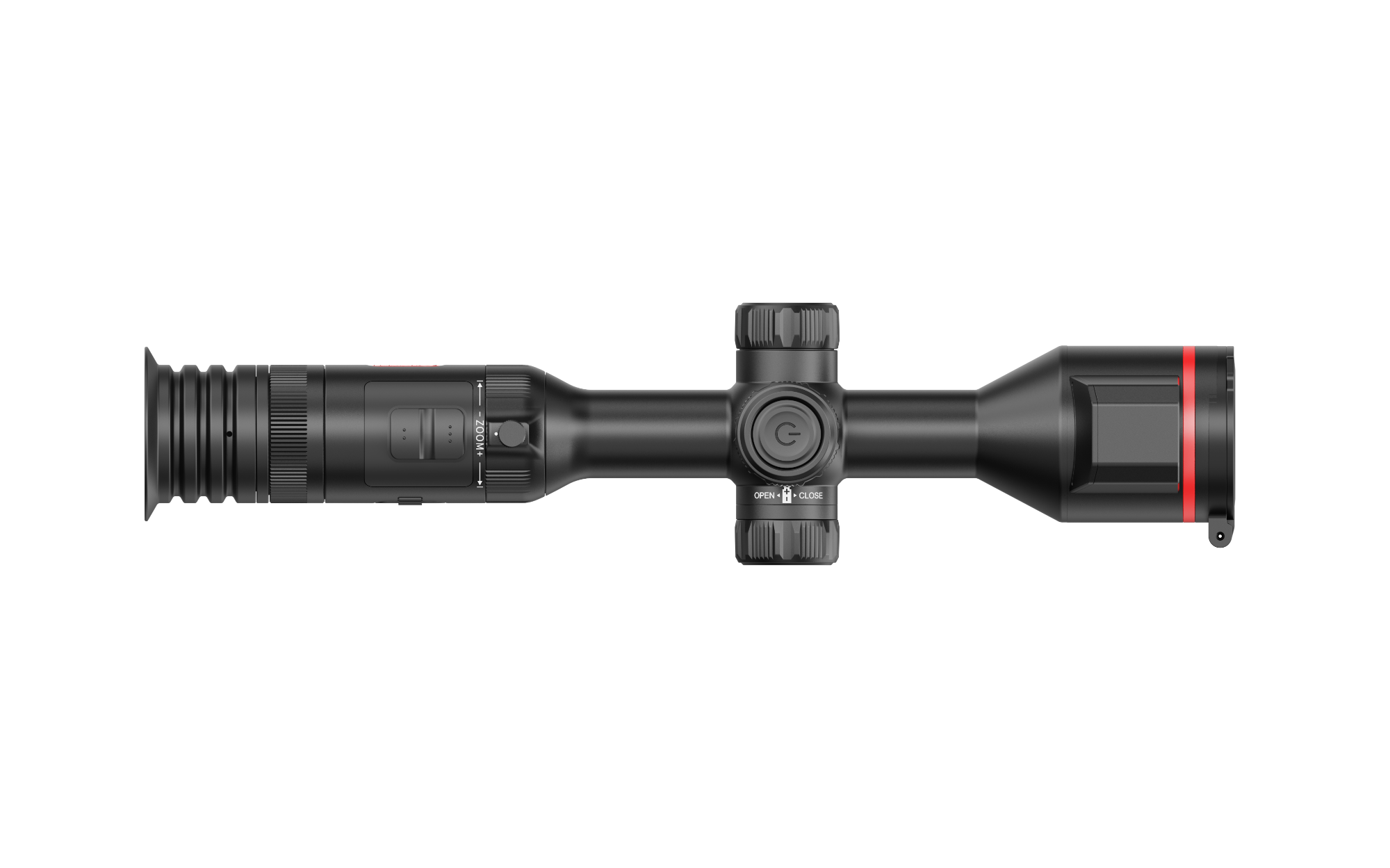

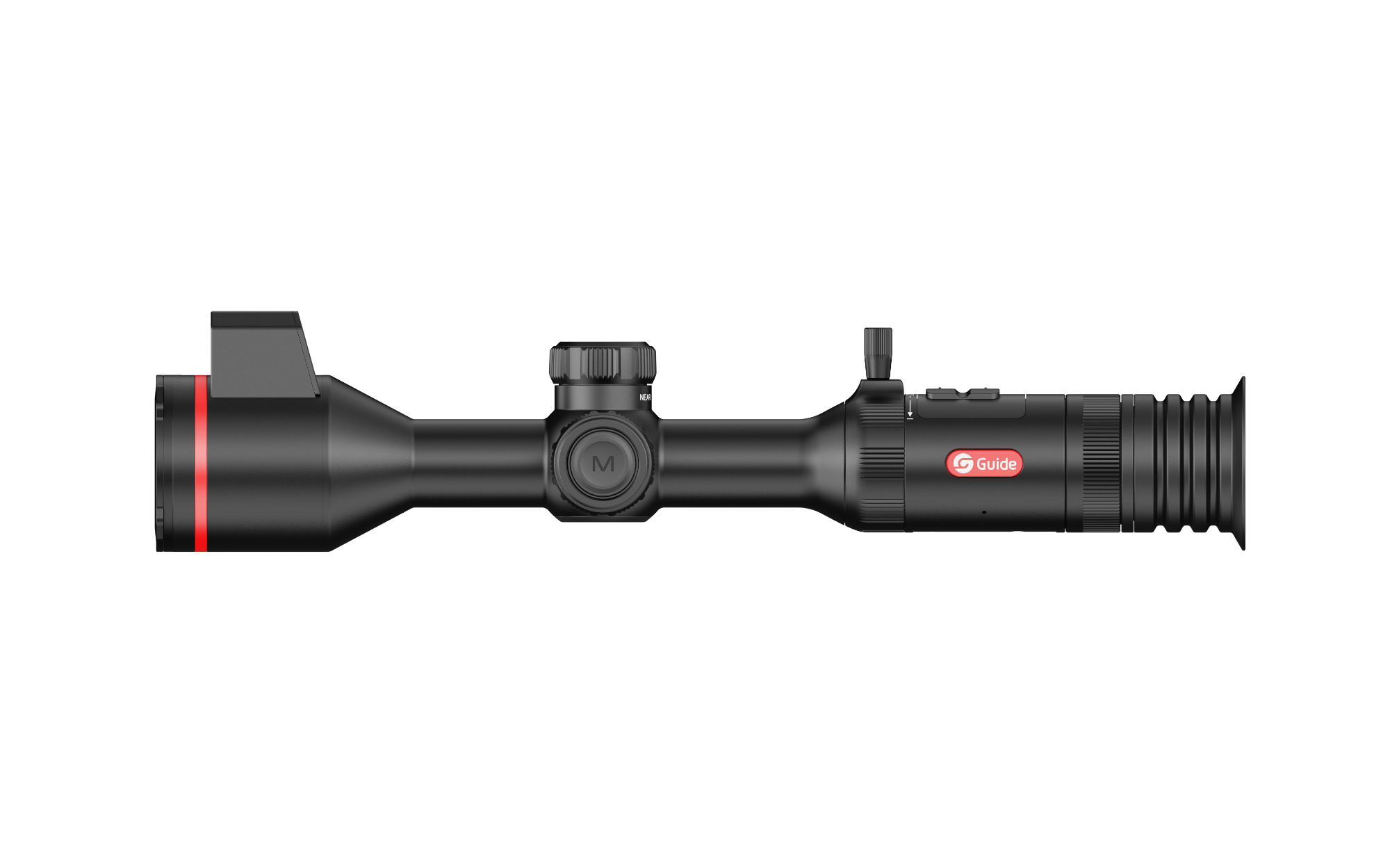

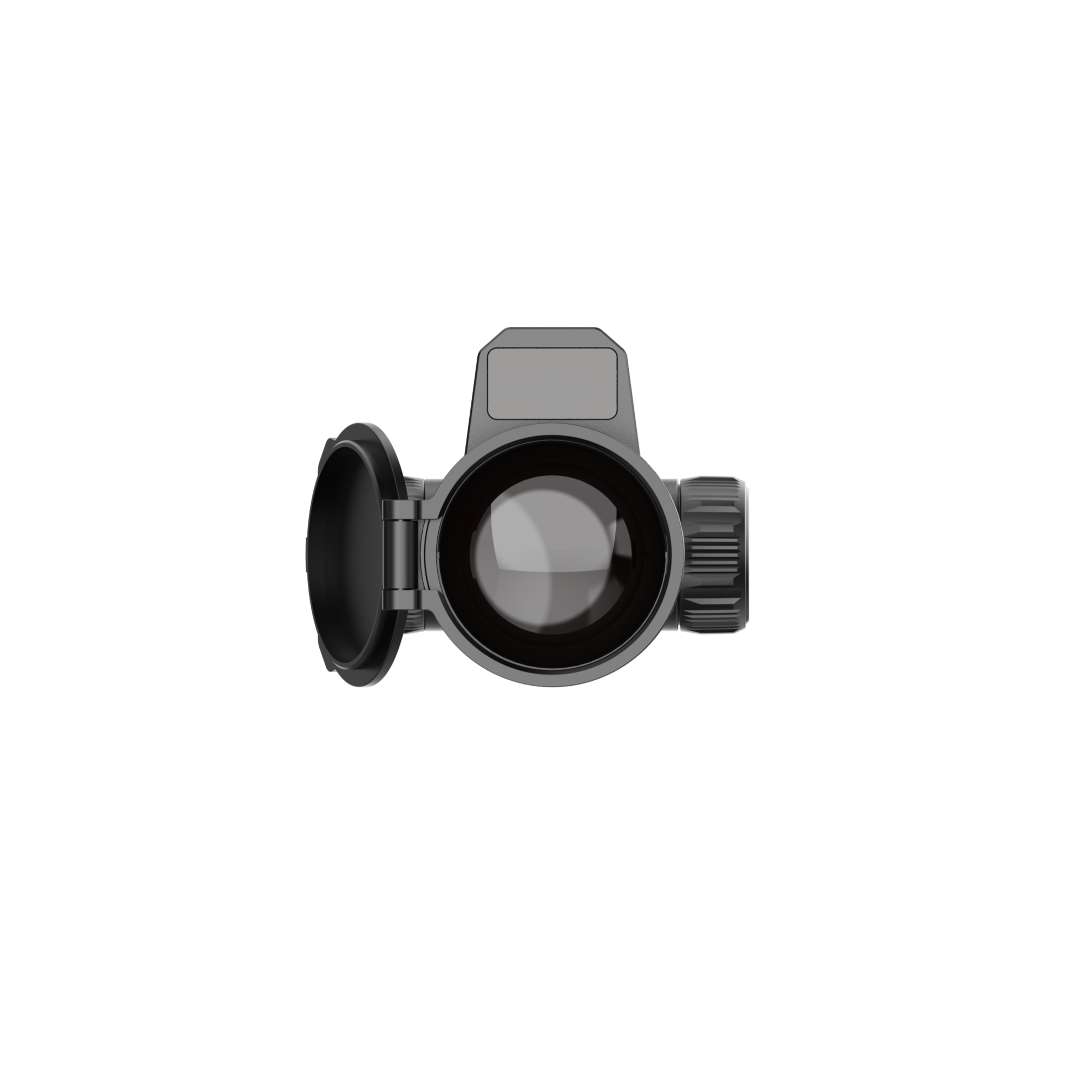

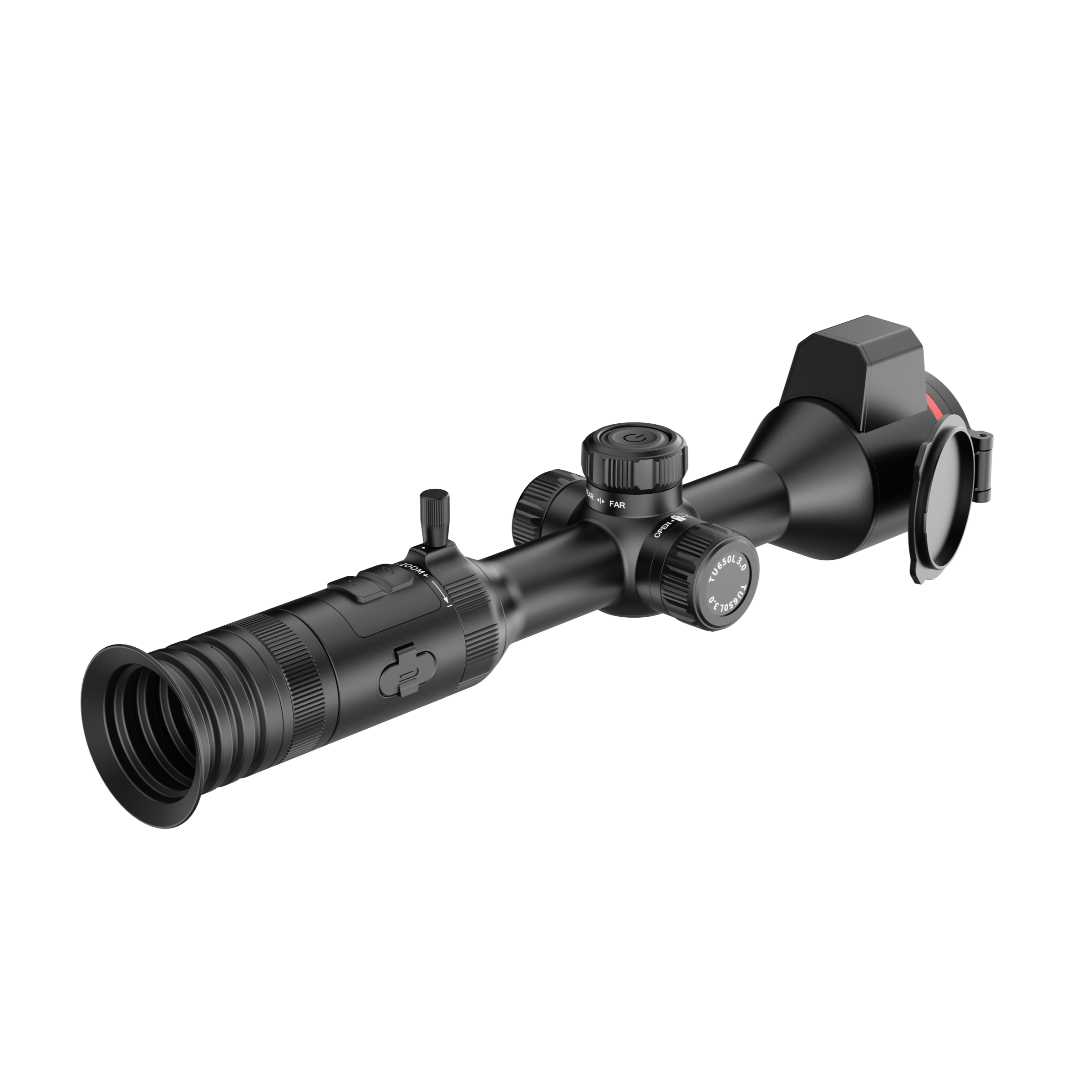

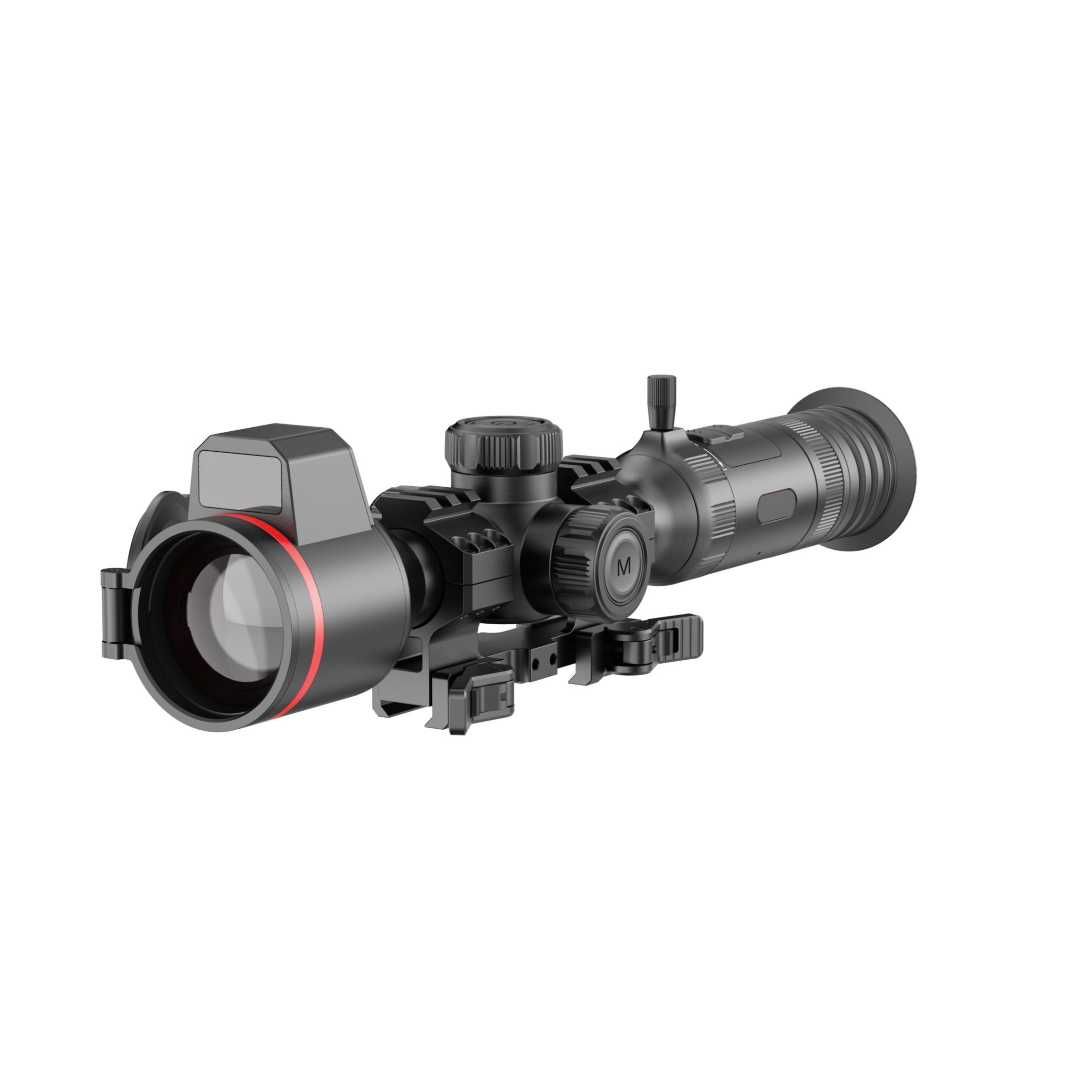

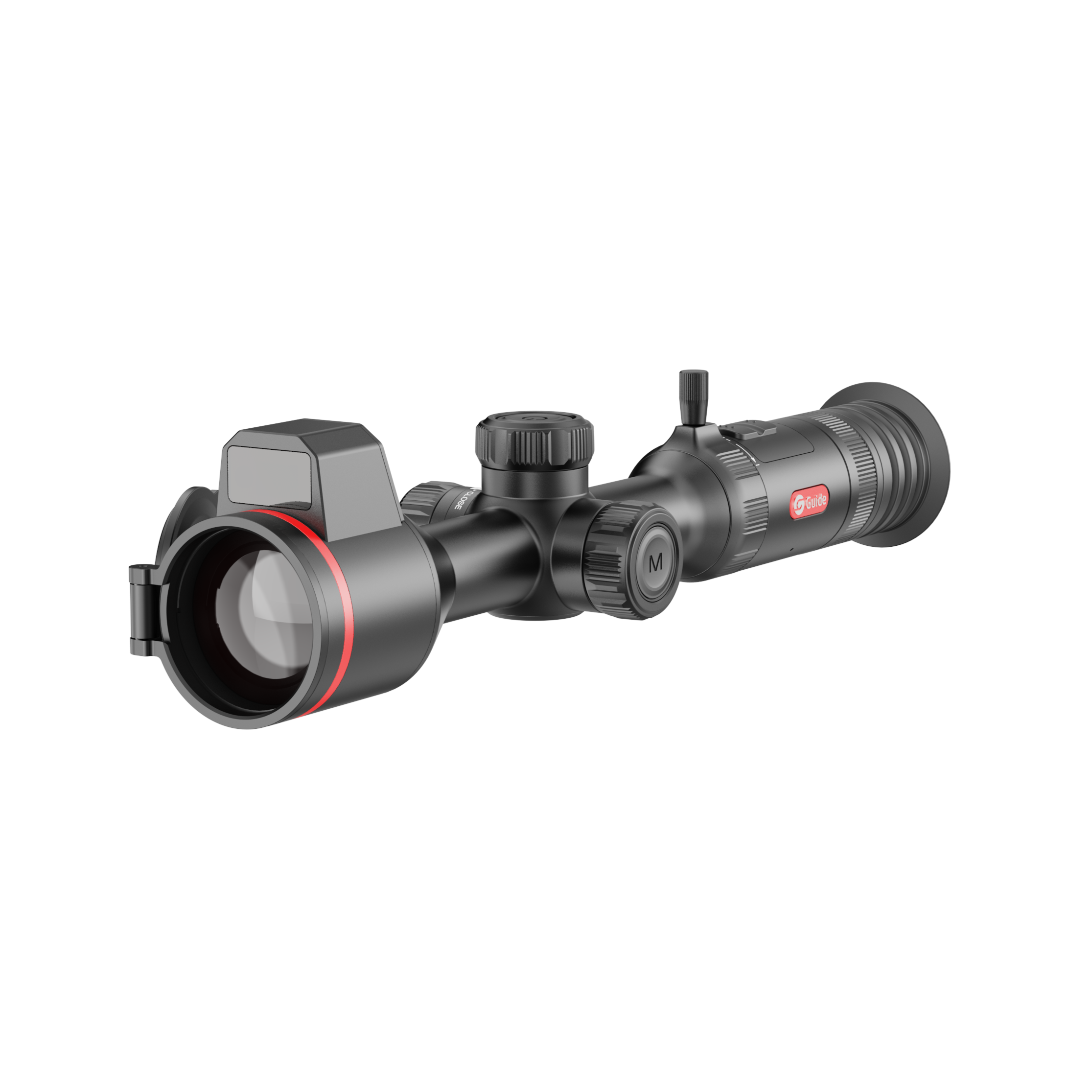

TU 650 LRF 3.0
Thermal Riflescope with LRF
!! NEW 2025 !!
- 640X512 Thermal High Quality Sensor
- Ultra-wide display: 0.49'' AMOLED 1920×1080
- 2800yd Detection Range
- 1630yd Laser Rangefinder
- Dual battery system: 1x internal (USB-C rechargeable) and 1x external (18650)
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||
| Resolution | 640×512@12μm | |||
| NETD | 18mK | |||
| Frame rate | 50 Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 50mm, F1.0 | |||
| Field of view | 8.2°×5.0° | |||
| FOV m@100m | 14×9 | |||
| Magnification | 3.7x~29.6x | |||
| Detection range | 2600m/2800yd | |||
| Focus | Manual | |||
| Display | ||||
|---|---|---|---|---|
| Display type | 0.49'' AMOLED 1920×1080 | |||
| Color palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia | |||
| Eyepiece | Eye relief: 48mm; Diopter -5 to +5; Zoom: 14x | |||
| Hardware | ||||
|---|---|---|---|---|
| Laser rangefinder | 1500m/1630yd | |||
| WIFI | 2.4G, 5G | |||
| Interface | USB-C (Charge/USB2.0) | |||
| Tube diameter | Standard 30 mm | |||
| Others | Microphone, Bluetooth | |||
| System | ||||
|---|---|---|---|---|
| Recording function | Photo/Video (Audio recording included) | |||
| Memory capacity | 128GB | |||
| Power | ||||
|---|---|---|---|---|
| Battery type | 18500 ×1 Battery (Built-in) and 18650 ×1 Battery (External) | |||
| Operating time | 12 hours | |||
| Environmental | ||||
|---|---|---|---|---|
| Operating temp. | -20°C to 50°C / -4°F to +122°F | |||
| Shock | 6000J/1200G | |||
| Encapsulation | IP68 | |||
| Physical | ||||
|---|---|---|---|---|
| Weight (g/oz) | 815/28.75 | |||
| Size (mm/in) | 377×89×82/14.84×3.50×3.23 | |||

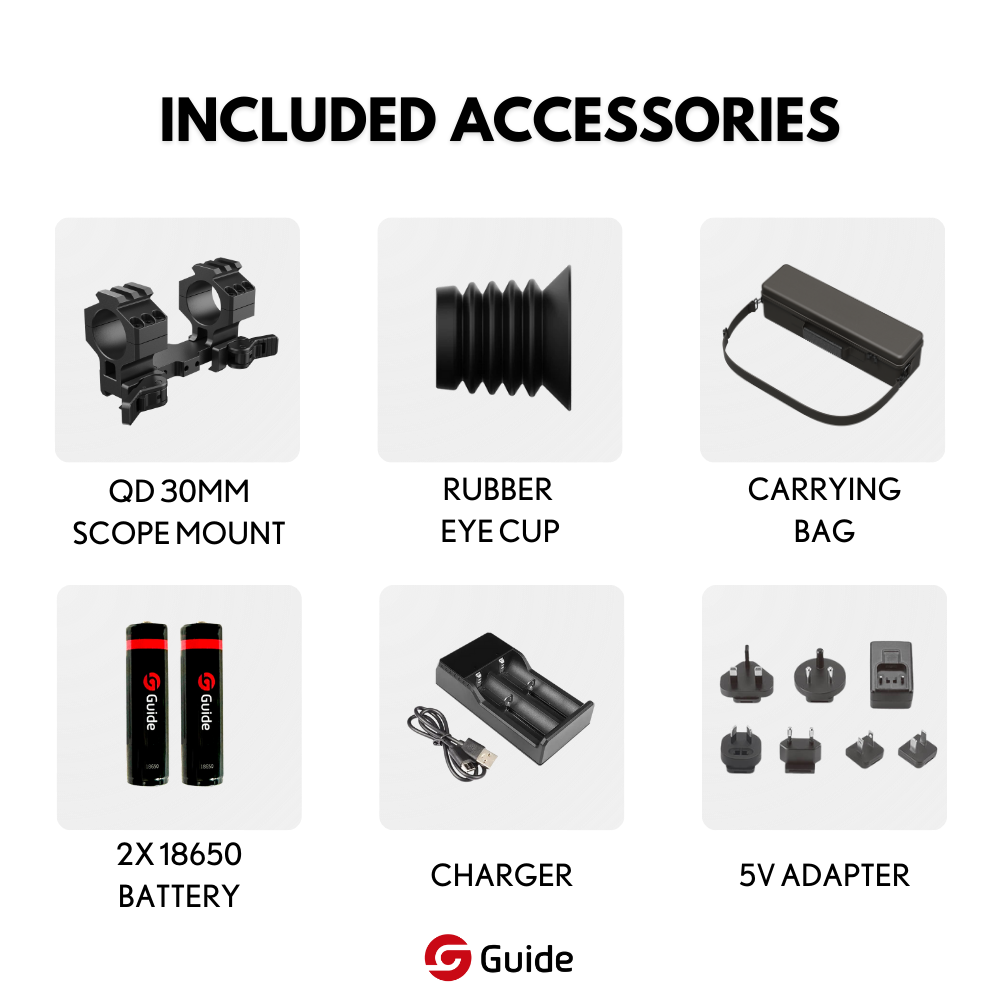

| Standard | Device, Lens Cover, Eye Mask, Quick-Release Scope Mount, Carry Bag, 18650 Battery ×2, Battery Charger, 5V 2A Adapter, USB-A to USB-C Cable, Quick Start Guide, Warranty Card | |||
| Optional | Bluetooth Remote Control, 18650 Battery | |||
Pre-order today and be the first to receive it! Shipping begins October 2025.
Please contact us to be added to the waiting list contact@guideir-thermal.com
Hyper-Light Algorithm: Ultra-Premium Visuals
Powered by next-generation sensors and the Hyper-Light Algorithm, this product elevates image quality to new heights. Experience improved clarity, reduced noise, optimized contrast, and enhanced resolution of fine details—all designed to deliver unparalleled visual performance.
Shutterless Design: Uninterrupted Visuals
With innovative shutterless 3.0 technology, the TU LRF 3.0 eliminates the clicking sound and image freezing. This ensures seamless, real-time footage during hunts, so you never miss a moment—even during calibration.
Locate with Precision: Up to 1,600 Yard,
The TU LRF 3.0 Series integrates a high-precision laser rangefinder, allowing you to accurately locate prey at distances of up to 1,600 yard. This advanced feature helps hunters achieve greater success in the field.

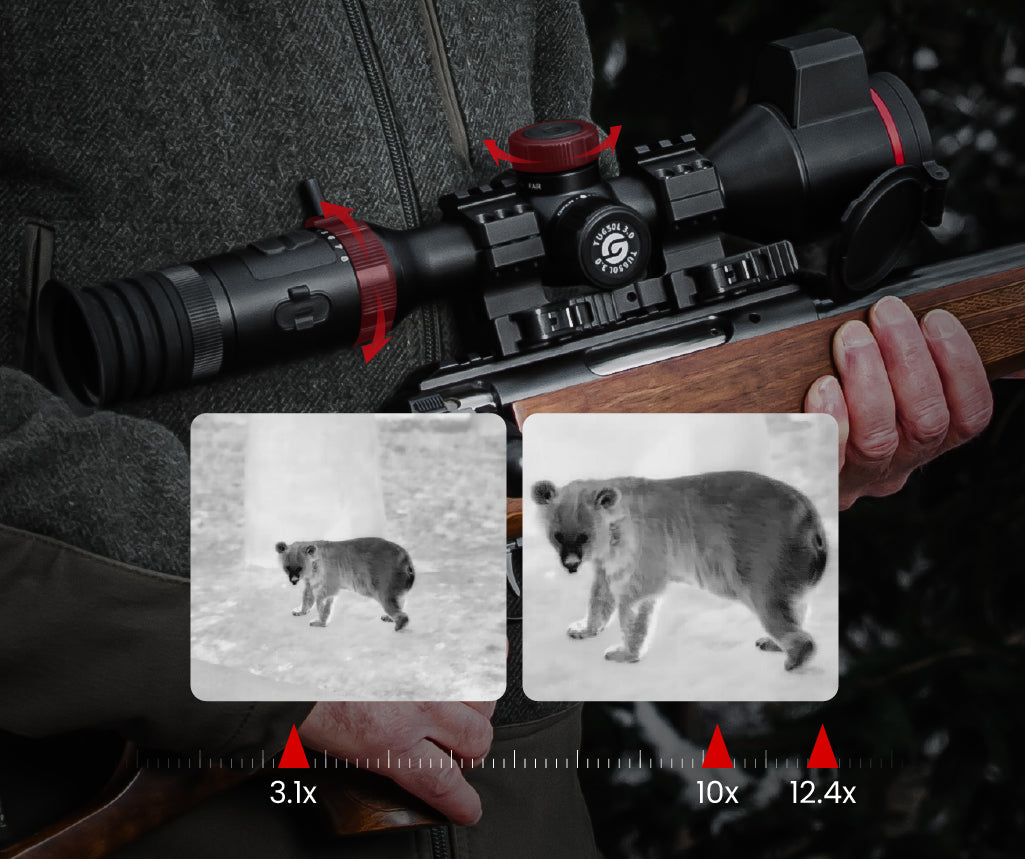

Seamless Control: Easy Focus & Zoom
Refined through extensive field testing and hunter feedback, the TU LRF 3.0 has been optimized in every detail—from the focus wheel to the zoom lever and button layout. Its ergonomic design ensures intuitive control and maximum comfort during use.
10 Year Warranty
All our thermal optics come with an industry-leading 10-year warranty, ensuring that we’re here to support you if you ever encounter any issues with your scope. Your peace of mind is our priority.
Save time, ammunition, and effort with the accurate aiming adjustments needed for long-range accuracy. Use your own data like bullet type, distance, and environmental factors (temperature, wind) to calculate the bullet's precise path.
Use the TargetIR Ballistic app on your phone.
640x512
Thermal Sensor
