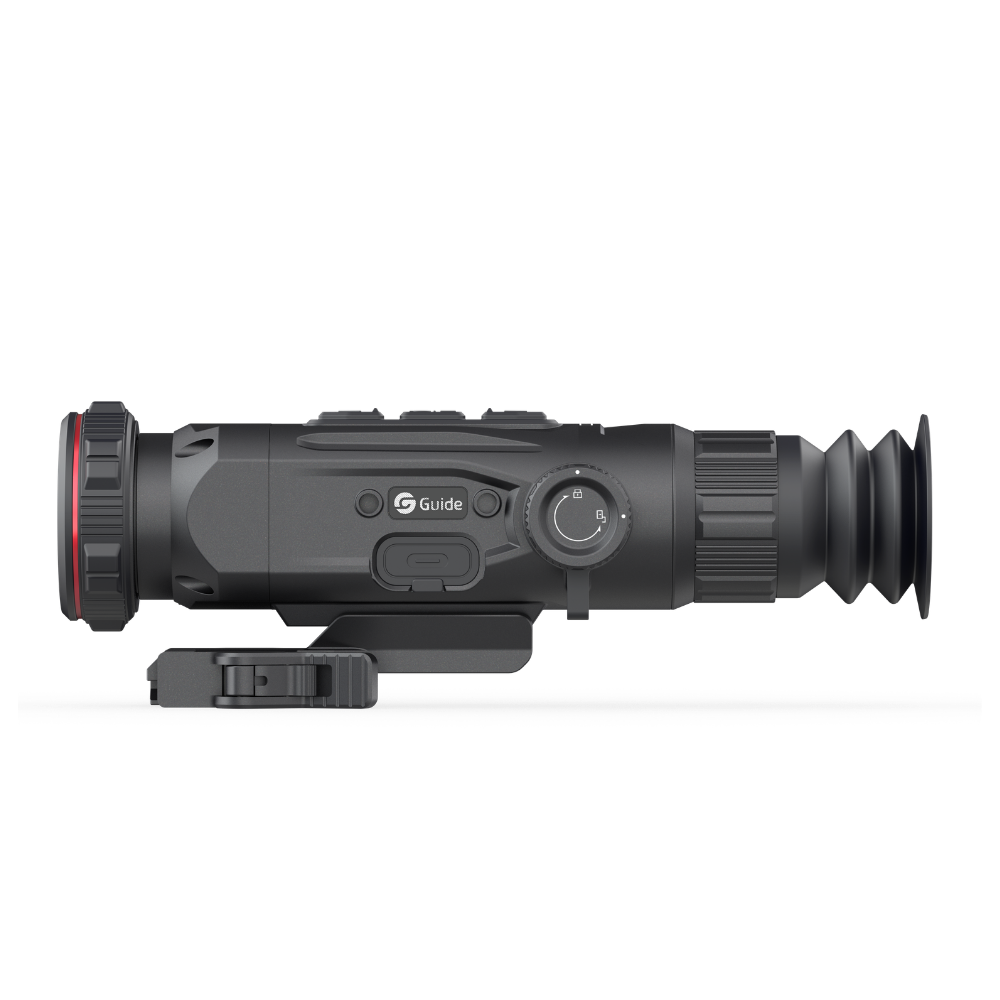

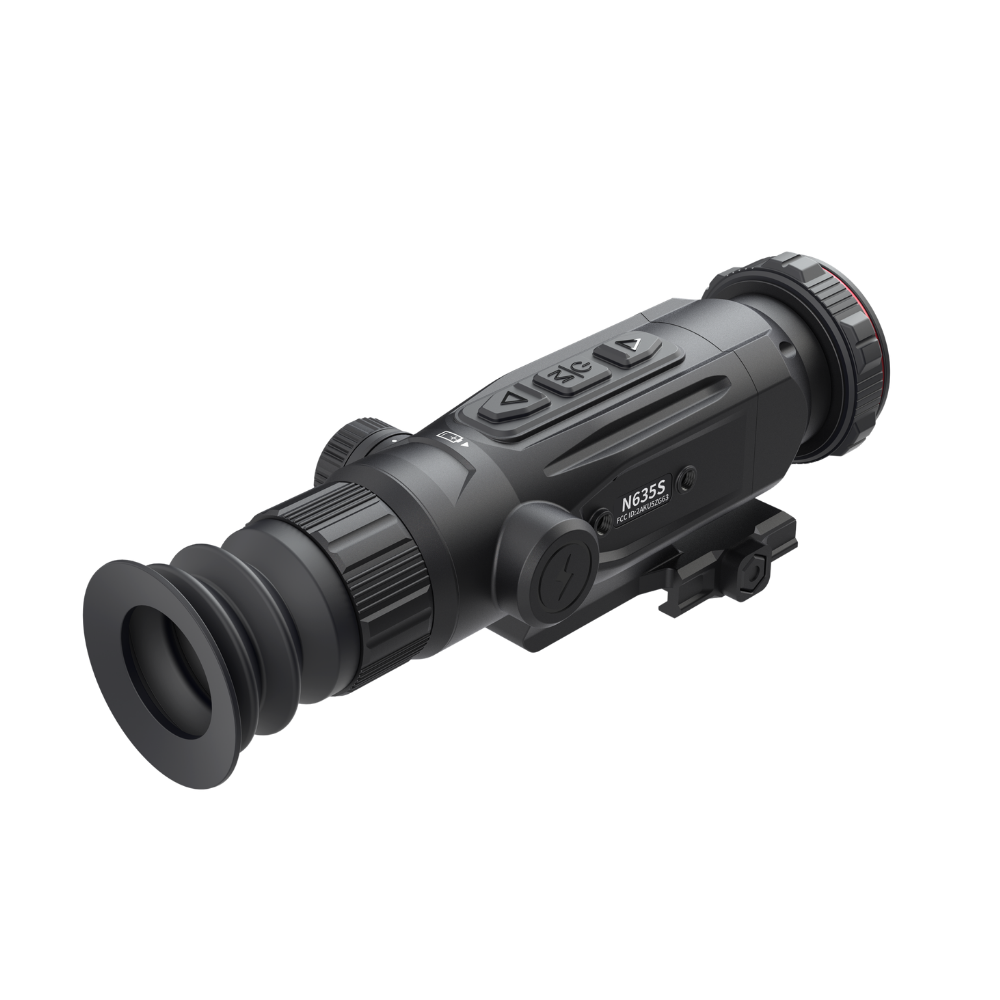

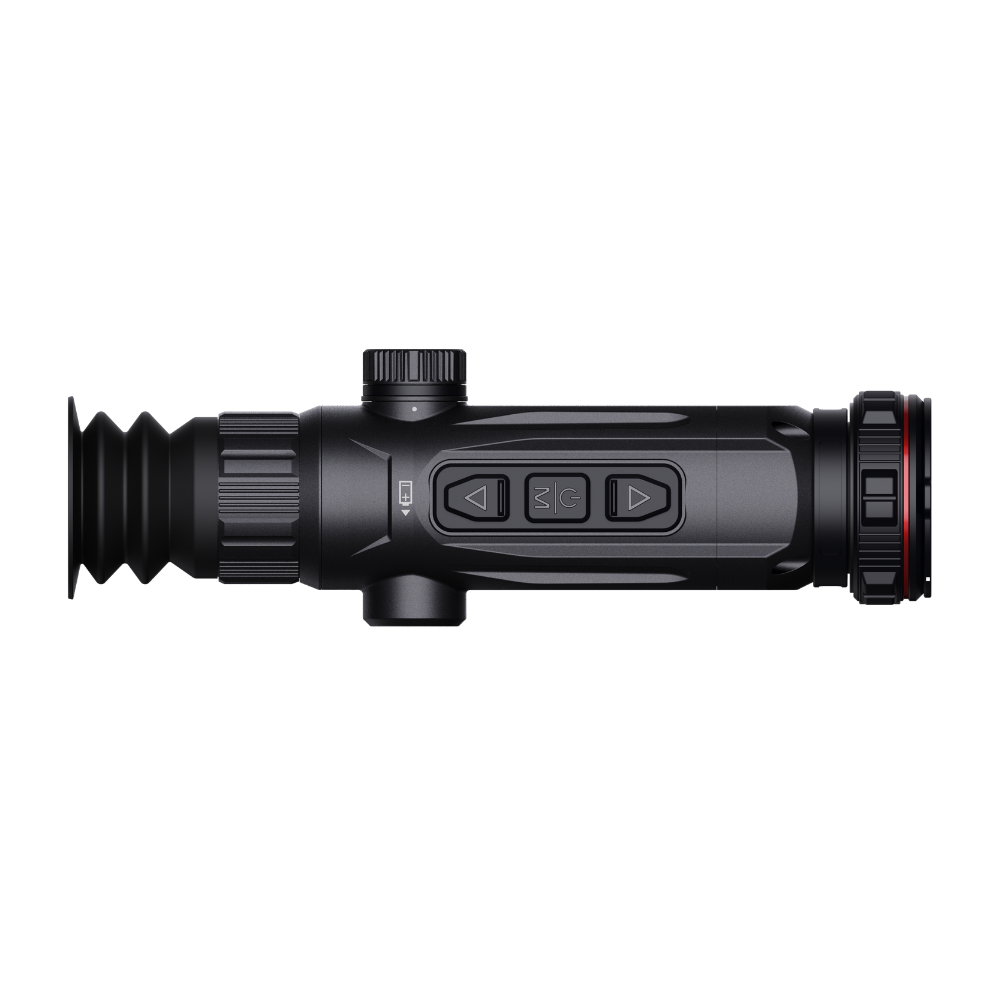

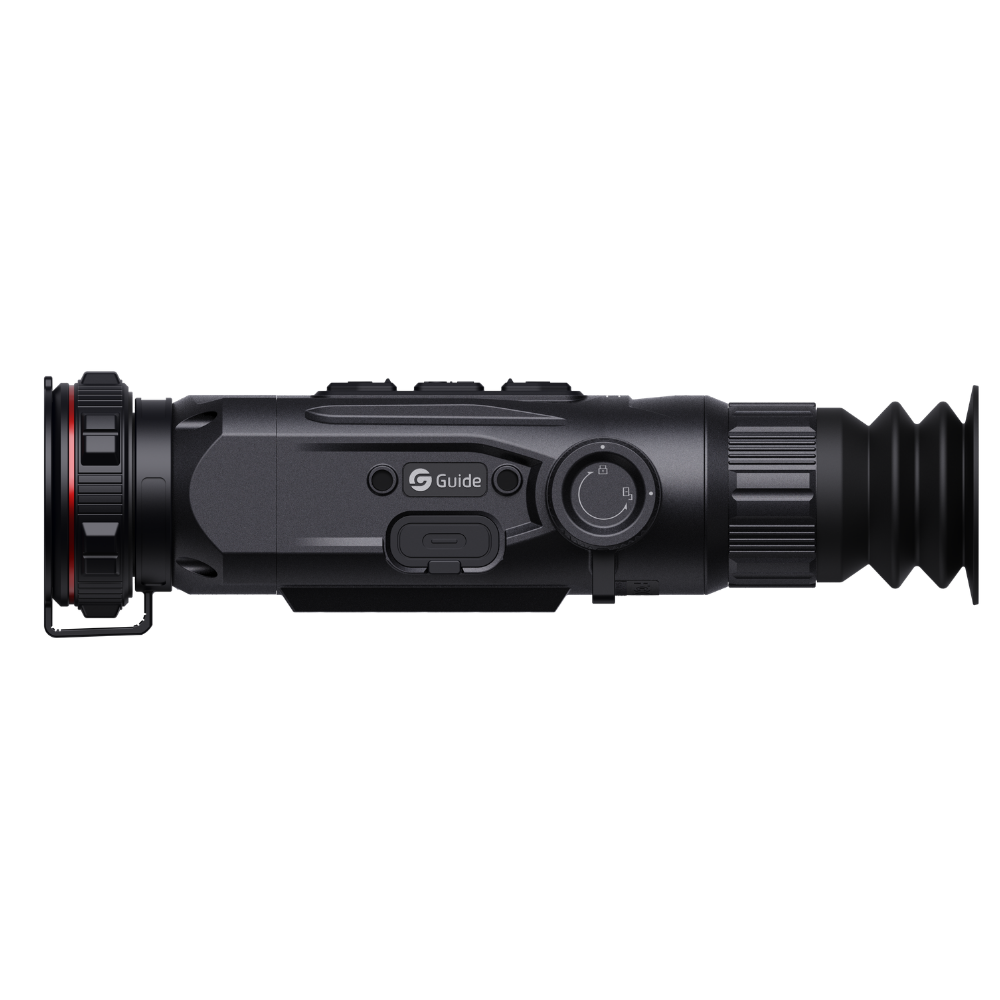

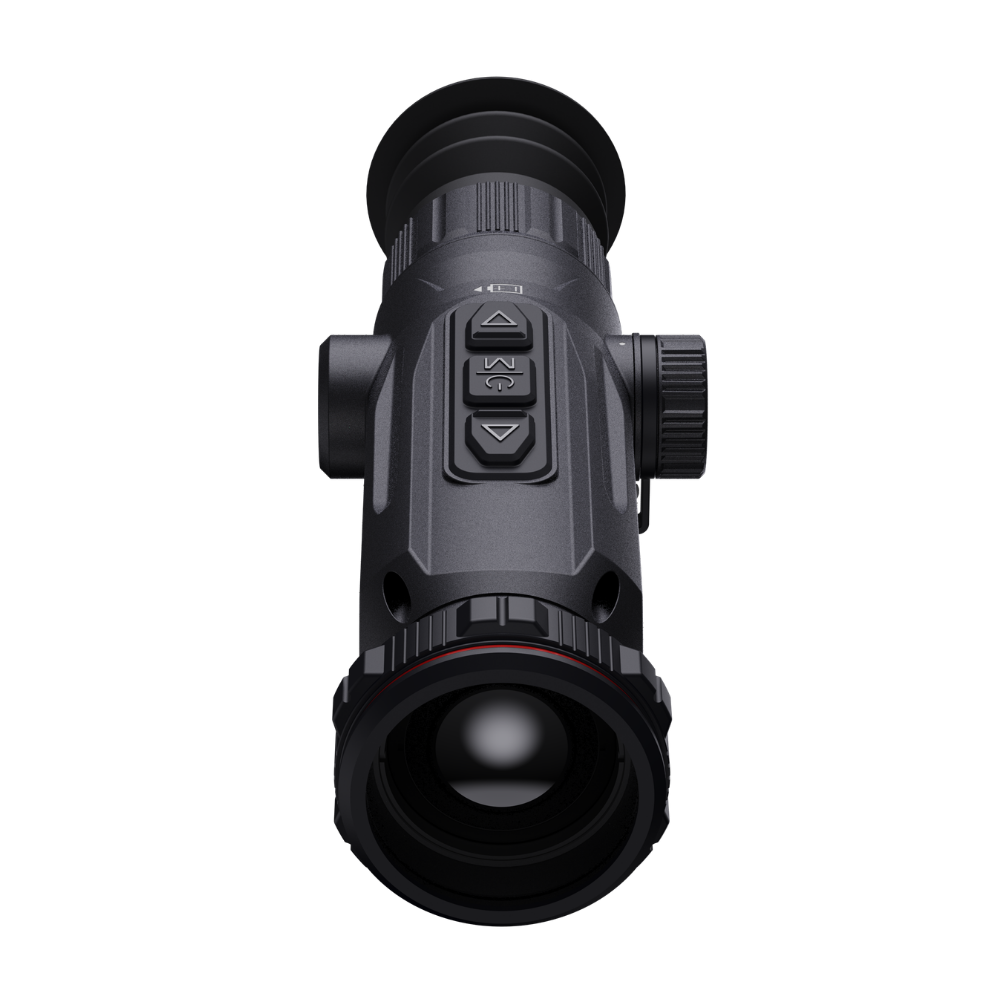

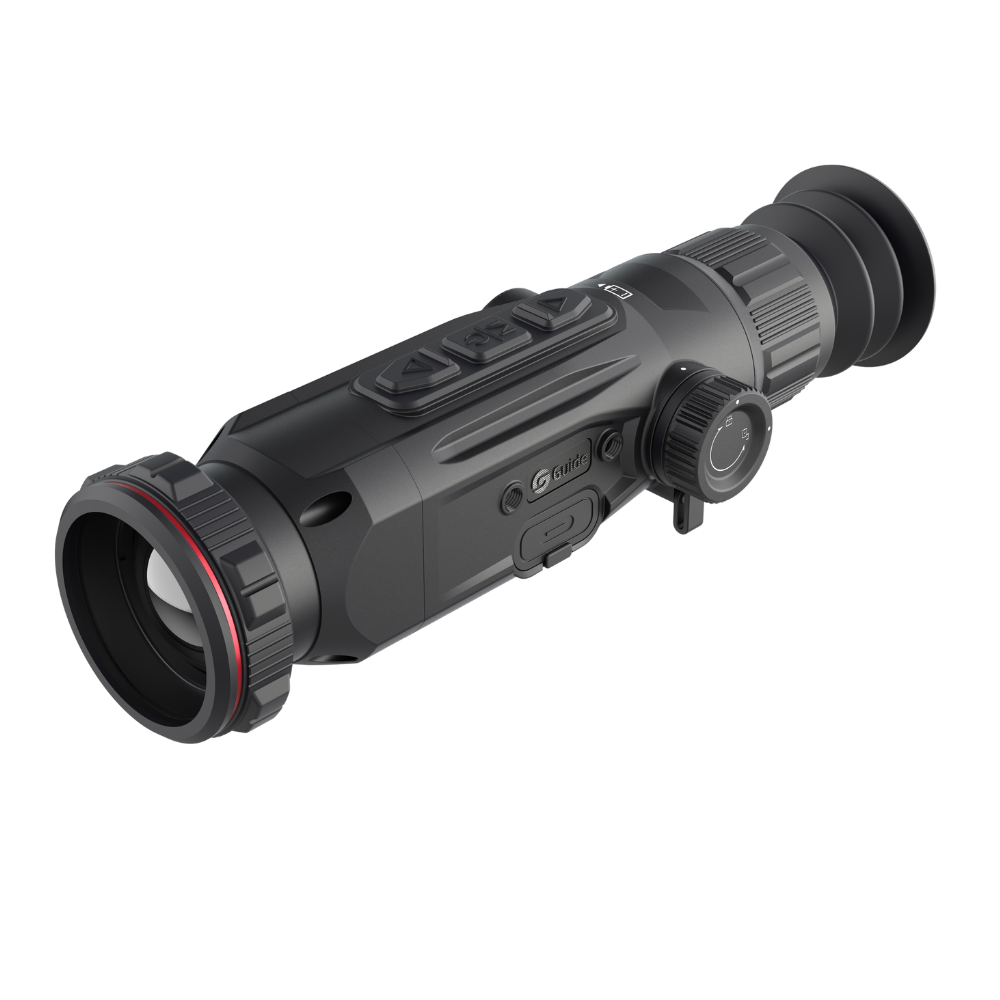

Name: N635S Thermal Riflescope 2X 640x512 35mm
Brand: Guide Thermal USA
SKU: N635S
Price: 2699.00 USD
Availability: InStock

N635S Thermal Riflescope 2X 640x512 35mm

NOVA N635S 640x512

Thermal Imaging Riflescope

$2,699.00

Tax excluded. Shipping calculated at checkout

640x512 Apex Vision Thermal High Quality Sensor
2x Base Magnification, 8x Digital Zoom
0.39'' AMOLED 1024×768: Ultra-Wide Display
1950yd Detection Range
8 hours Battery Life, Rechargeable 18500 Battery

Description

Sensor
Core technology	Equipped with full ApexVision S1 system architecture: Detector ApexCore S1 + Platform Nexus 1.0 + Algorithm Hyper-Light 2.0
Type	Uncooled VOx Infrared Detector, 8 to 14µm
Resolution	640×512@12µm
NETD	15mK
Frame rate	50Hz

Lens
Objective lens	35mm, F0.9
Field of view	12.5°×9.4°
FOV m@100m	22×17
Magnification	2.0x~16x
Detection range	1950yd
Focus	Manual

Display
Display type	0.39'' AMOLED 1024×768
Color palettes	White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
Eyepiece	Eye relief: 48mm; Diopter -5 to +5; Zoom: 14x

Hardware
Wi-Fi	2.4G, 5G
Interface	USB-C (Charge/USB2.0)
Others	Microphone, Bluetooth

System
Recording function	Photo/Video (Audio recording included)
Memory capacity	64 GB

Power
Battery type	Customized Battery (Built-in) and 18500 Battery (External)
Operating time	8 hours

Environmental
Operating temp.	-4°F to +122°F
Shock	6000J
Encapsulation	IP67

Physical
Weight (oz)	18.51
Size (in)	8.98×2.83×2.36
Standard	Device, Eye mask, Quick-Release Scope Mount, Carry Bag, Lint-Free Cloth, Battery Charger, 18500 Battery ×2, USB-C to USB-C Cable, Quick Start Guide, Warranty Card
Optional	Bluetooth Remote Control, 18500 Battery

Ultra Compact, Only 18.5 Oz

640x512 Apex Vision Thermal Sensor

Dual Battery System & Quick Charge

IP68 Waterproof rating

User Manual - Nova Series

Access and download your full manual user here

NOVA USER MANUAL

10 YEAR WARRANTY

Industry-leading warranty 10-year warranty on all thermal sensors

CUSTOMER SERVICE

US-based company with local customer and after-sales service for hassle free experience

FAST DELIVERY

In stock products are shipped within the same day from our Utah warehouse

General

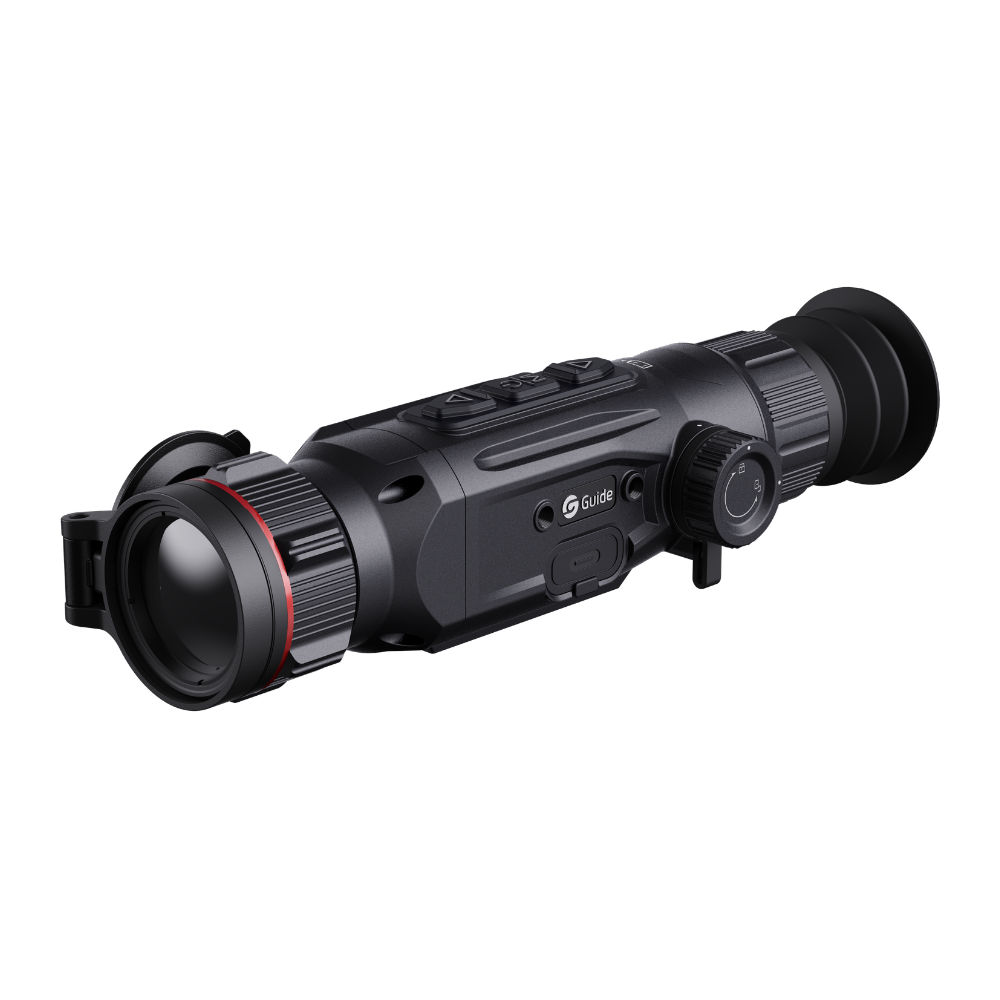

	N635S Thermal Riflescope 2X 640x512 35mm$2,699.00	N435 Thermal Riflescope 3.3X 400x300 35mm$1,399.00	TU650 LRF 3.0 Thermal Riflescope 3.9X 640x512 50mm LRF$2,999.00	TU425 SE 3.0 Thermal Riflescope 3X 400x300 25mm$1,599.00	TU435 LRF 3.0 Thermal Riflescope 4.4X 400x300 35mm LRF$1,899.00	TU650 LRF PRO 3.0 Thermal Riflescope 3.7X 640x512 50mm In-lens LRF$3,999.00	TU650 M 3.0 Thermal & Night-Vision Riflescope 3.7x 640x512 50mm LRF$3,999.00	TU635 LRF 3.0 Thermal Riflescope 3X 640x512 35mm LRF$2,599.00	TU1250 M 3.0 Thermal & Night-Vision Riflescope 2x 1280x1024 50mm LRF$6,199.00
Sensor Resolution	640x512, 15mK Apex Vision	400x300, 20mK	640x512	400x300	400x300	640x512	Thermal 640x512 Digital 1920x1080	640x512	Thermal 1280x1024 Digital 1920x1080
Objective Lens	35mm, F1.0	35mm, F1.0	50mm, F1.0	25mm, F1.0	35mm, F1.0	50mm, F0.9	50mm, F1.0 (Thermal); 35mm, F4.0 (Digital)	35mm, F1.0	50mm, F1.0 (Thermal); 35mm, F4.0 (Digital)
Base Magnification	2x	3.3x	3.9x	3x	4.4x	3.7x	3.7x	3x	2x
Digital Zoom	8x	4x	8x	4x	4x	8x	8x	8x	16x
Detection Range	1950 yd	1950 yd	2800 yd	1400 yd	1950 yd	2800 yd	2800 yd	1950 yd	2800 yd
Laser Rangefinder	No	No	Yes	No	Yes	Yes	Yes	Yes	Yes
Display Type	0.39'' AMOLED 1024×768	0.39'' AMOLED 1024×768	0.49'' AMOLED 1920×1080	0.49'' AMOLED 1920×1080	0.49'' AMOLED 1920×1080	1.03'' AMOLED 2560×2560	1.03'' AMOLED 2560×2560	0.49'' AMOLED 1920×1080	1.03'' AMOLED 2560×2560
Weight	18.51 Oz	19.71 Oz	28.75 Oz	20.2 Oz	27.5 Oz	32.56	35.7 Oz	28.75 Oz	38.45 Oz
Scope Mount	Integrated QD Mount	Integrated QD Mount	Quick Detach 30 Scope Mount with Picatinny ring tops	Quick Detach 30 Scope Mount with Picatinny ring tops	Quick Detach 30 Scope Mount with Picatinny ring tops	Quick Detach 30 Scope Mount with Picatinny ring tops	Quick Detach 30 Scope Mount with Picatinny ring tops	Quick Detach 30 Scope Mount with Picatinny ring tops	Quick Detach 30 Scope Mount with Picatinny ring tops
Battery Life	8h	7.5h	12h	12h	12h	14h	14h	12h	12h
Battery Type	18500 x1 Battery (External) and Built-in Battery	18500 x1 Battery (External) and Built-in Battery	18500 ×1 Battery (Built-in) and 18650 ×1 Battery (External)	18500 ×1 Battery (Built-in) and 18650 ×1 Battery (External)	18500 ×1 Battery (Built-in) and 18650 ×1 Battery (External)	18650 ×2 Battery (Built-in) and 18650 ×1 Battery (External)	18650 ×2 Battery (Built-in) and 18650 ×1 Battery (External)	18500 ×1 Battery (Built-in) and 18650 ×1 Battery (External)	18650 ×2 Battery (Built-in) and 18650 ×1 Battery (External)
