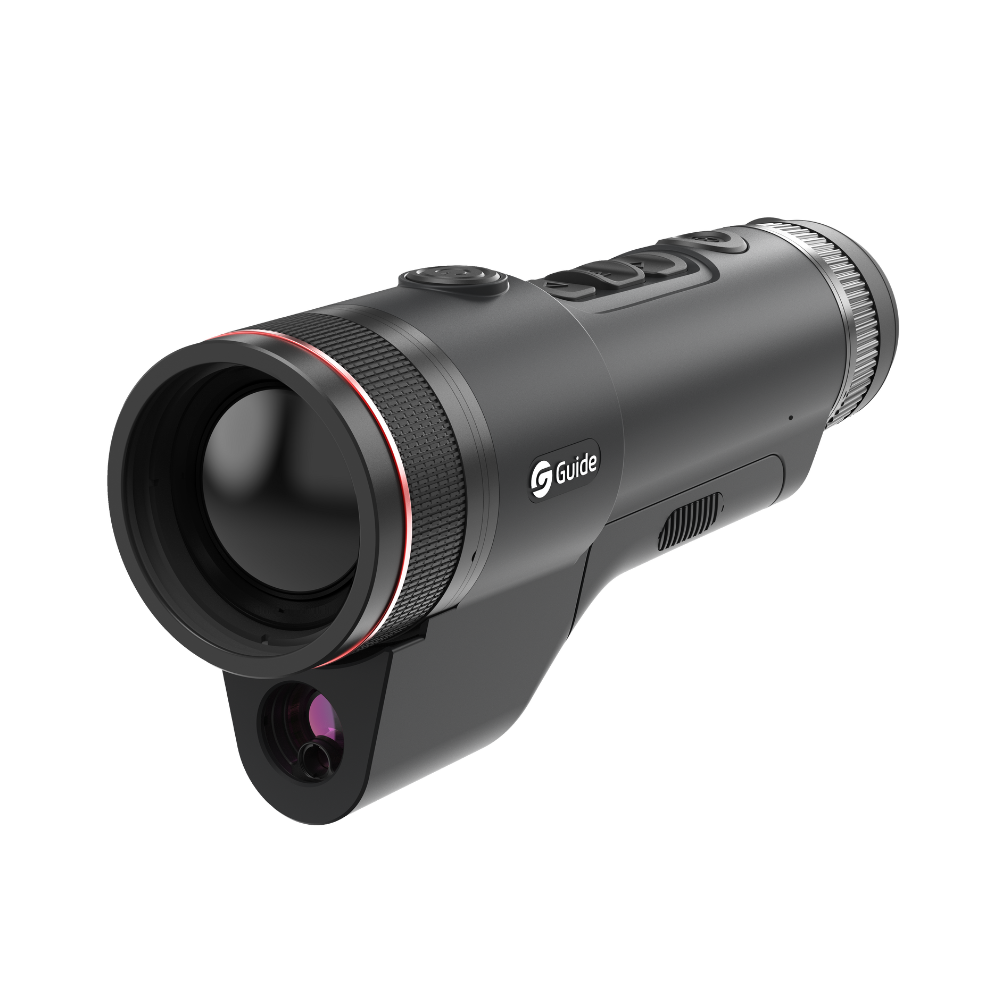

TJ1250 LRF PRO - HD Thermal Monocular
Tax excluded. Shipping calculated at checkout
HD THERMAL CLIP-ON
- 1280×1024 @12μm Sensor Resolution
- 2800 yd Detection Range
- 50mm; F1.0 Focal length
- 1920x1080 Full HD Display
- 1630Yd Laser Rangefinder
The TJ Series is the latest compact thermal monocular imagined with intuitive ergonomics, high shock resistance and a rugged and durable body.

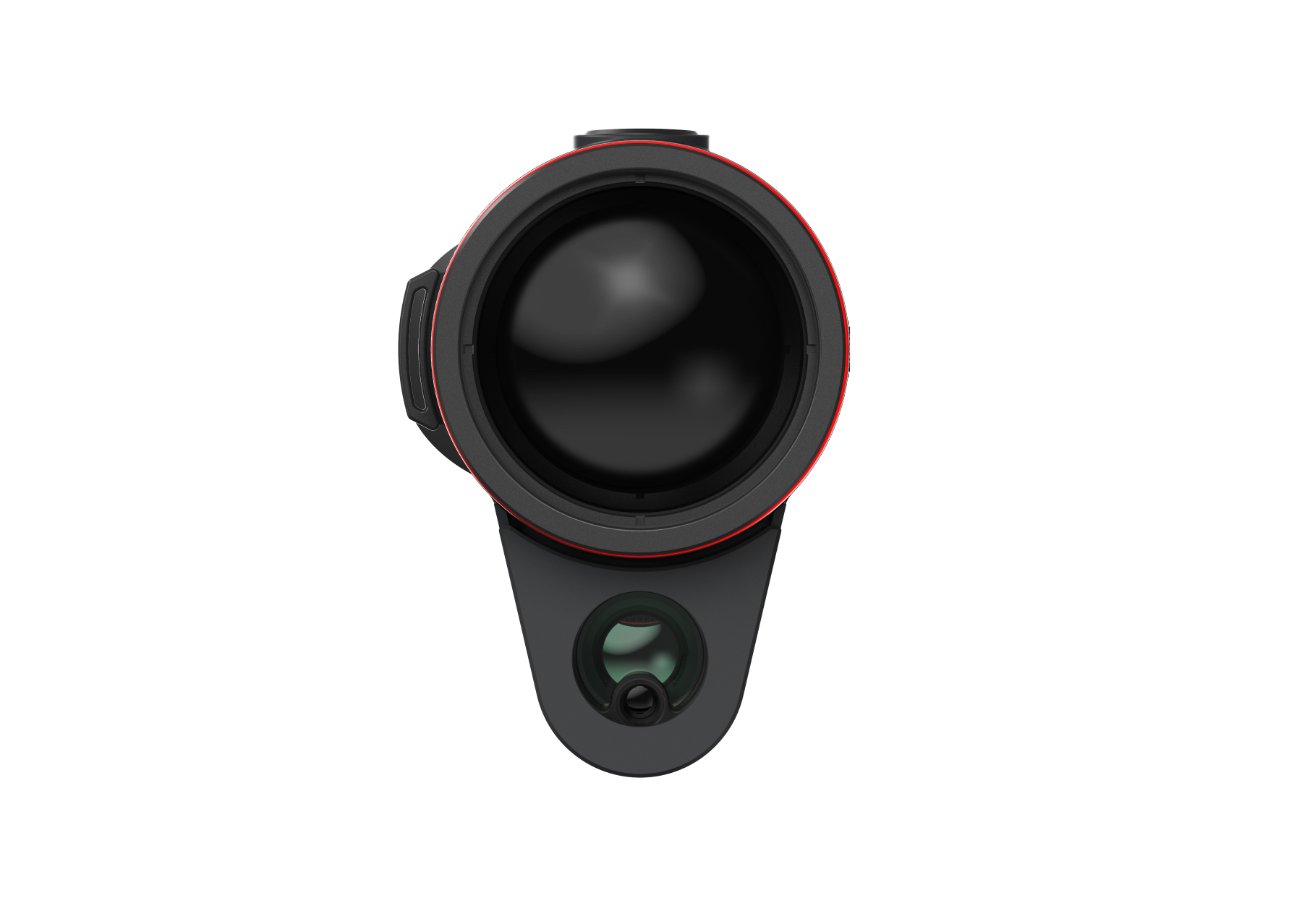

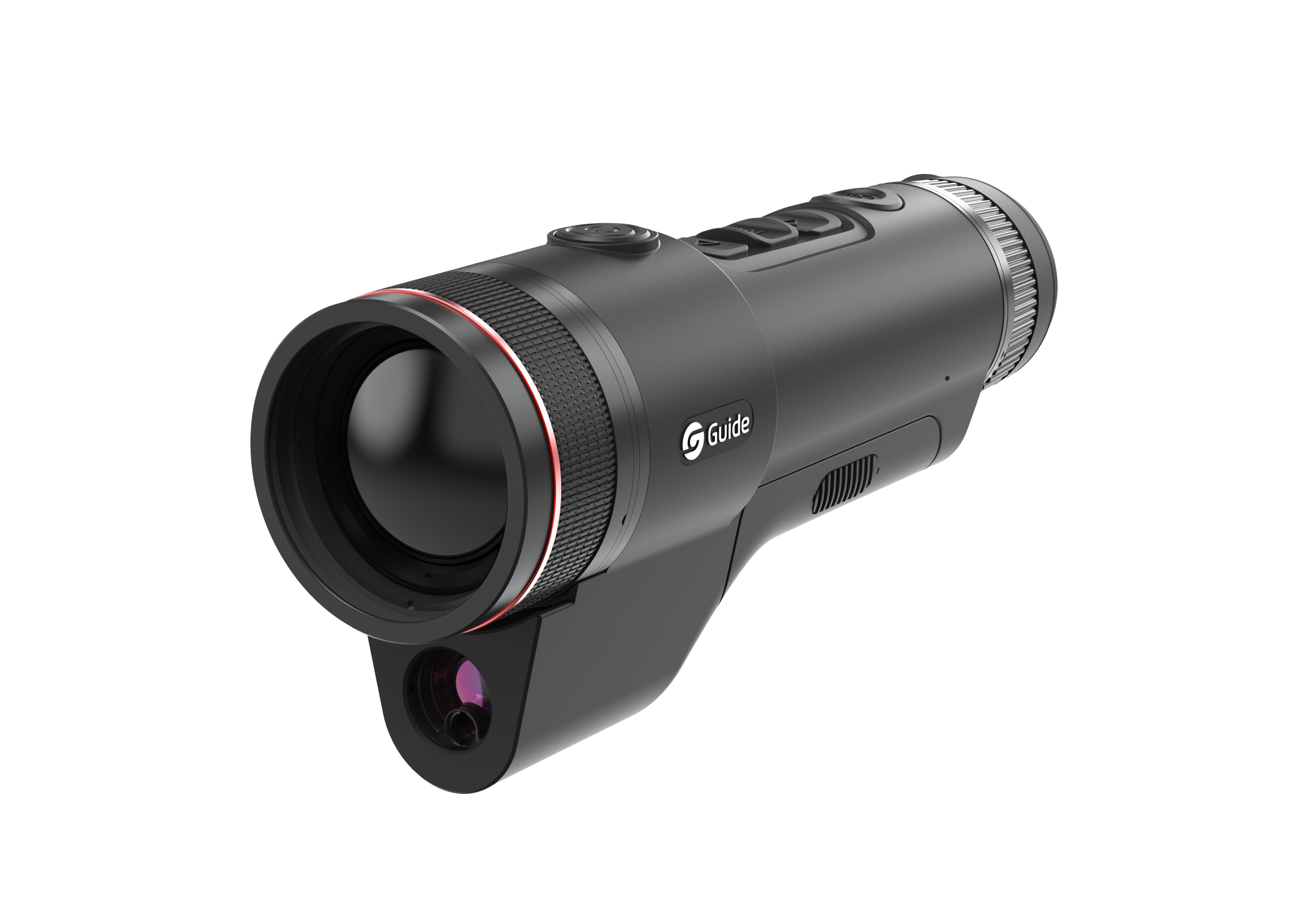

The TJ1250 LRF Pro is the first monocular featuring a HD thermal sensor with a 1280×1024 resolution. It is equipped with a 50mm germanium lens and an integrated laser rangefinder.
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||
| Resolution | 1280×1024@12μm | |||
| NETD | 18mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 50mm, F1.0 | |||
| Field of view | 17.5°×14.0° | |||
| FOV m@100m | 31×25 | |||
| Magnification | 2.36x~37.76x | |||
| Detection range | 2600m/2800yd | |||
| Display | ||||
|---|---|---|---|---|
| Display type | 0.5'' AMOLED 1600×1200 | |||
| Color palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia | |||
| Eyepiece | Eye relief: 16mm; Diopter: -6 to +6; Zoom: 18x | |||
| Hardware | ||||
|---|---|---|---|---|
| Laser rangefinder | 1500m/1630yd | |||
| WIFI | 2.4G, 5G | |||
| Interface | USB Type-C (Power supply/USB2.0) | |||
| Others | Microphone, Compass, Gyroscope, Bluetooth | |||
| System | ||||
|---|---|---|---|---|
| Recording function | Photo/Video (Audio recording included) | |||
| Memory capacity | 256GB | |||
| Power | ||||
|---|---|---|---|---|
| Battery type | 2 replaceable 18650 batteries | |||
| Operating time | 6 hours | |||
| Environmental | ||||
|---|---|---|---|---|
| Operating temp. | -20°C to 50°C / -4°F to +122°F | |||
| Encapsulation | IP67 | |||
| Physical | ||||
|---|---|---|---|---|
| Weight (g/oz) | 689/24.30 | |||
| Size (mm/in) | 247×101×70/9.72×3.98×2.76 | |||
| Standard | Thermal monocular, Wrist strap, Battery charger, 18650 battery×2, 5V2A adapter (US, Britain, Australia and Europe), USB Type-C cable, Quick use guide, Warranty card | |||
| Optional | Bluetooth remote control, 18650 battery | |||
Introducing the Guide Sensmart TJ 1250 LRF Pro —the first thermal monocular on the market with a HD 1280x1024 resolution. This groundbreaking technology brings exceptional thermal image quality to night hunters, making high-definition thermal imaging a reality.
The TJ Series of thermal monoculars were specifically designed to be compact and lightweight, they come with all the features that you can expect, which include: ultra-large 1600×1200 AMOLED display, photo and video recording capabilities with built-in microphone, Wi-Fi hotspot, TargetIR app compatibility for storing and sharing images and videos, constant OTA upgrades, IP67 protection rating, 6 hours of battery life.
As always with Guide Sensmart, we are proud to offer a 10-year warranty on your optic and its thermal sensor. We trust our products more than anything else and are the only ones to offer this kind of warranty. With a Texas-based repair center, you can rest assured that you'll get your product back within a week.
|  |  |  |  |  |  | |
|---|---|---|---|---|---|---|---|
| General | |||||||
Objective Lens |
|
|
|
|
|
|
|
Base Magnification |
|
|
|
|
|
|
|
Sensor Resolution |
|
|
|
|
|
|
|
Detection Range |
|
|
|
|
|
|
|
Laser Rangefinder |
|
|
|
—
|
—
|
—
|
|
Digital Zoom |
|
|
|
|
|
|
|
Display Type |
|
|
|
|
|
|
|
Weight |
|
|
|
|
|
|
|
Product Features
1280×1024 @12μm
18mK
50Hz
50mm, F1.0
2.36x~37.76x
1x
2800yd
6 Hours (18650 Battery)
1630yd
Use this text to share information about your brand with your customers. Describe a product, share announcements, or welcome customers to your store.
The laser rangefinder module of the TJ LRF Pro Series has been upgraded to achieve a remarkable breakthrough, extending the maximum measurement distance to 1500 meters/1630 yard.

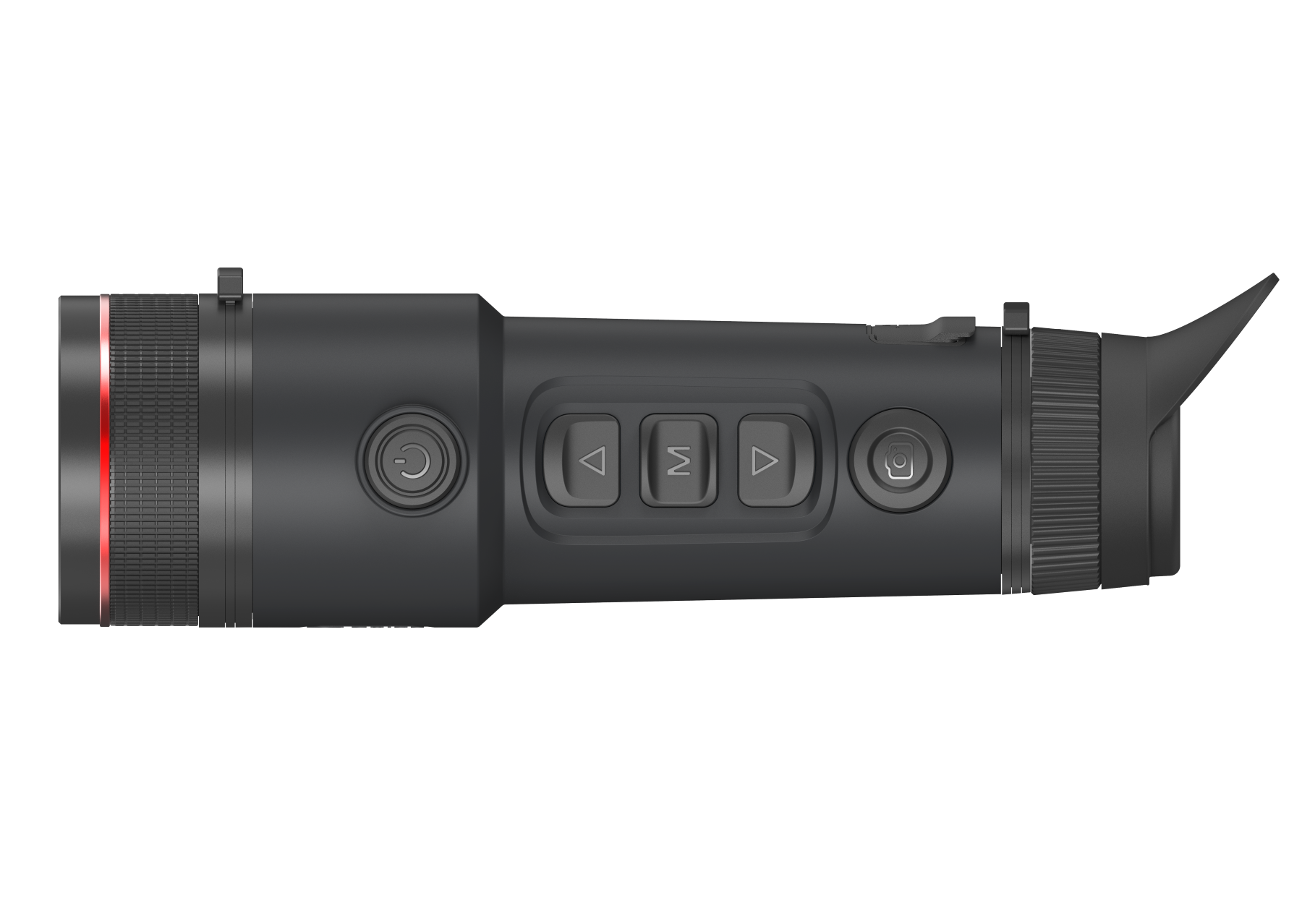

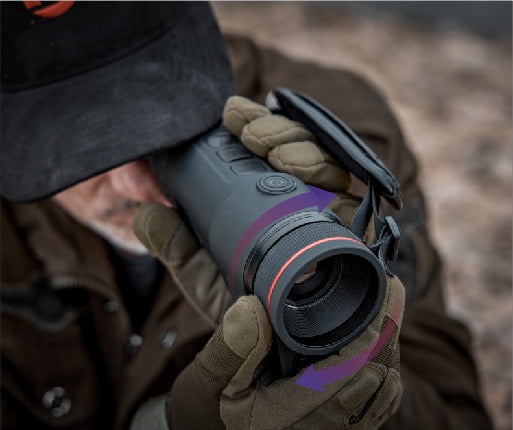

Both left and right hands can operate easily the monocular, adjust the focus ring. Left/right eye masks and hand straps can be switched in one step.

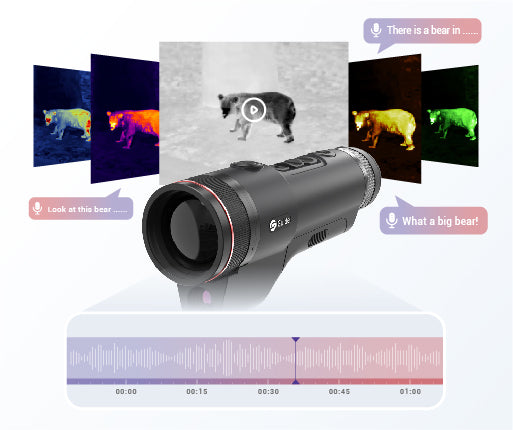

The monocular supports both photo and video capture, featuring a built-in microphone to ensure audio is included in your recordings.
The ultra-large 1600×1200 AMOLED display presents a stunning visual effect like a 90” home theater at a 2.5-meter distance, bringing it to new heights in picture clarity and observation comfort.

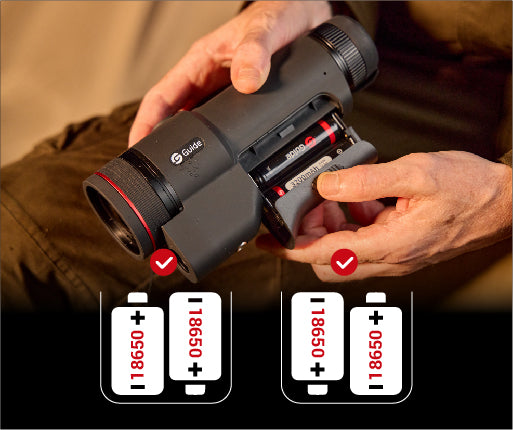

Utilizing standard 18650 batteries, equipped with a safety circuit protection design. When replacing the batteries, simply ensure that the positive and negative poles of the two cells are oriented oppositely, reducing the burden of identification and memory.
