TE 421
SHARP & LIGHTWEIGHT
- 400×300@12μm Sensor Resolution
- 1400 yd Detection Range
- 0.32'' AMOLED 800×600 full-color screen
- One-button control for smooth operation
- 25mm; F1.0 Focal length
- 25Mk NETD

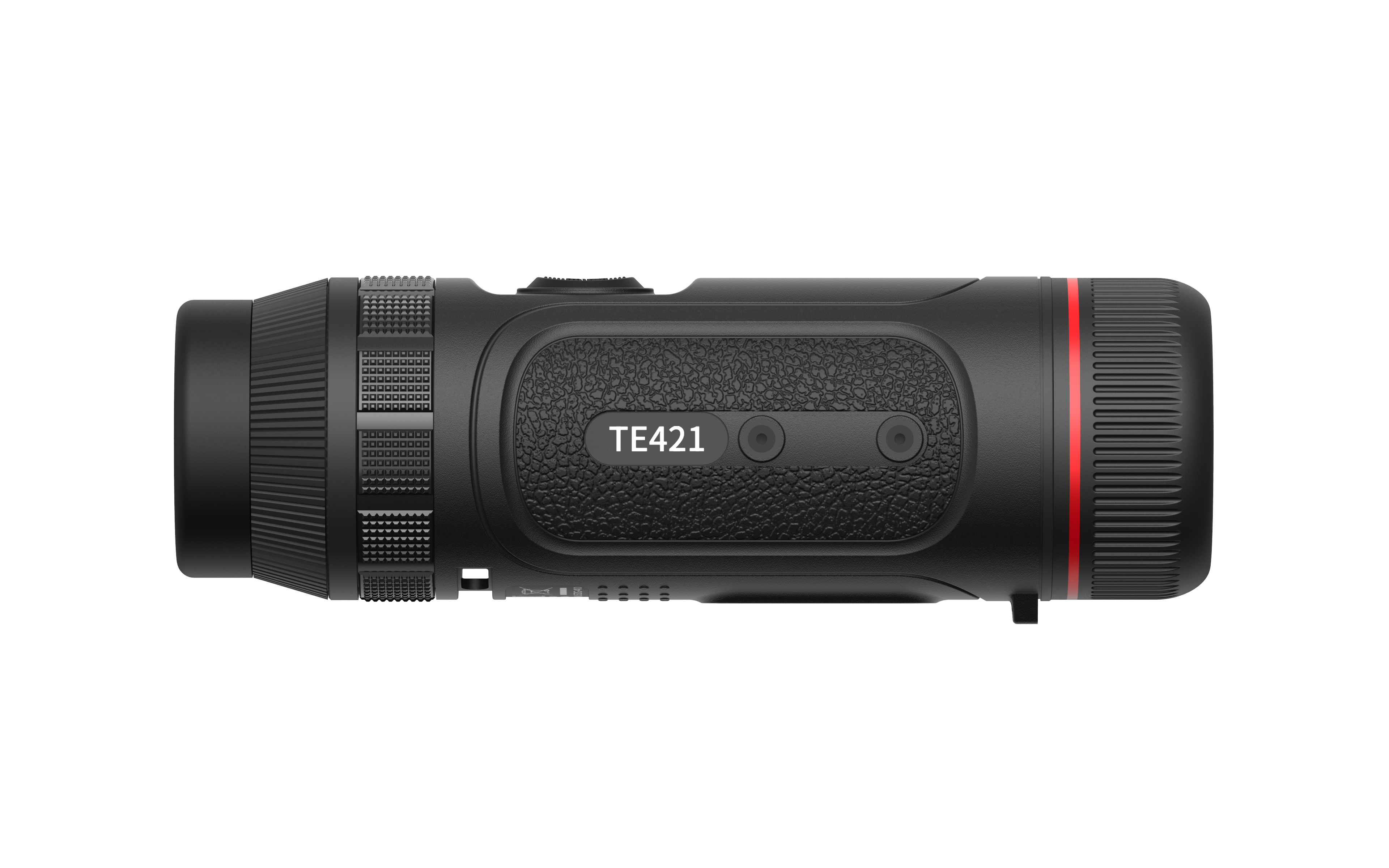

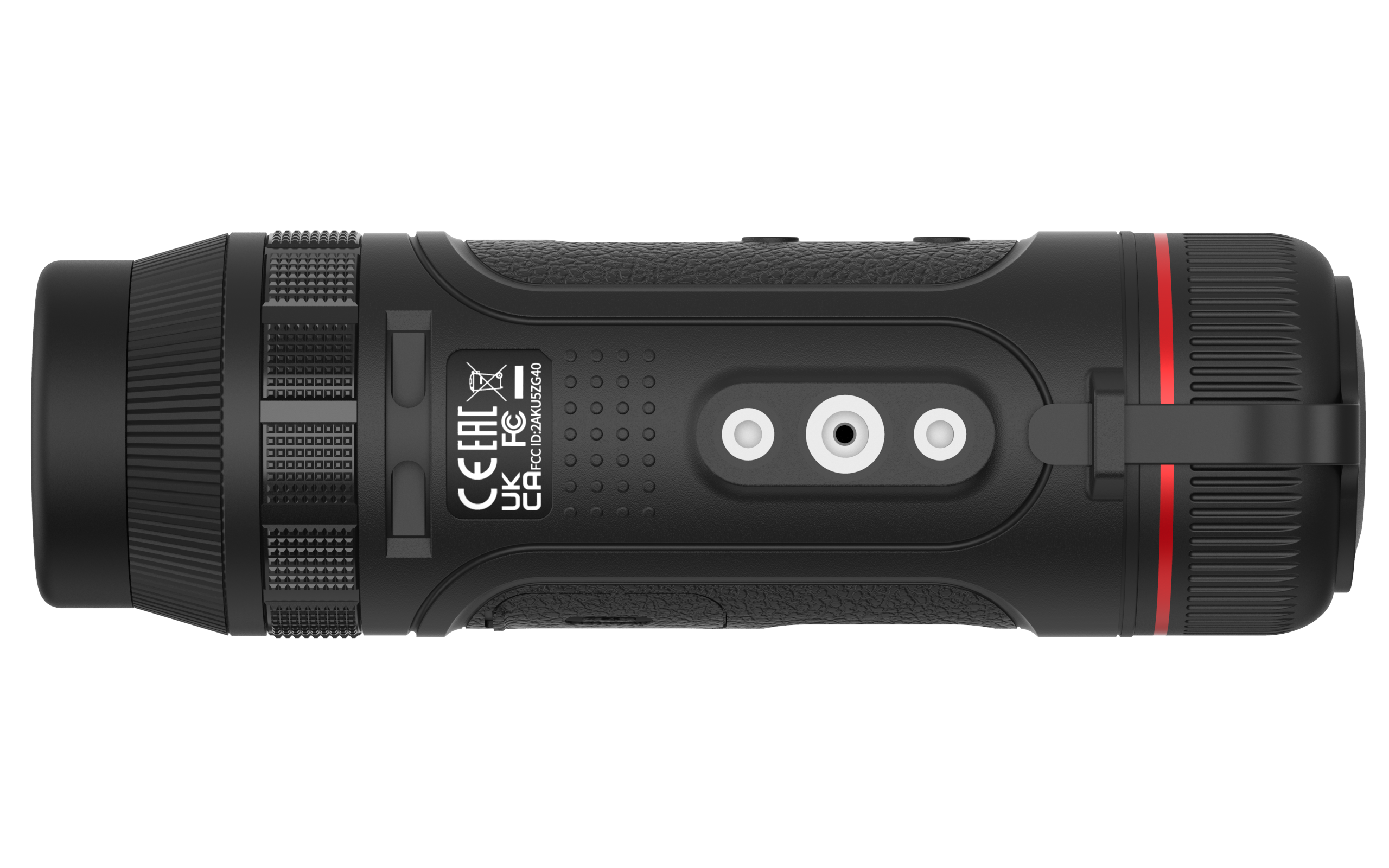

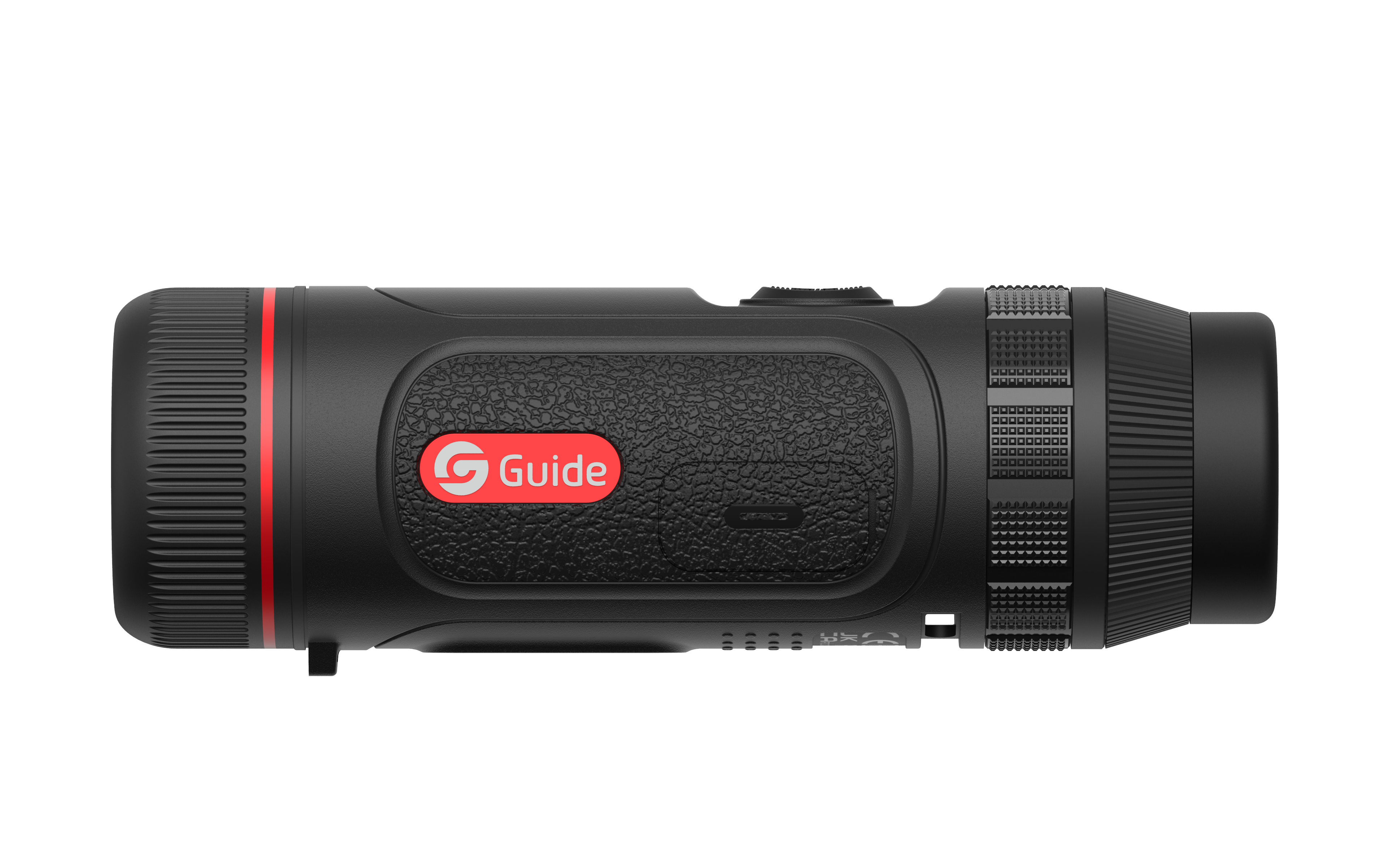

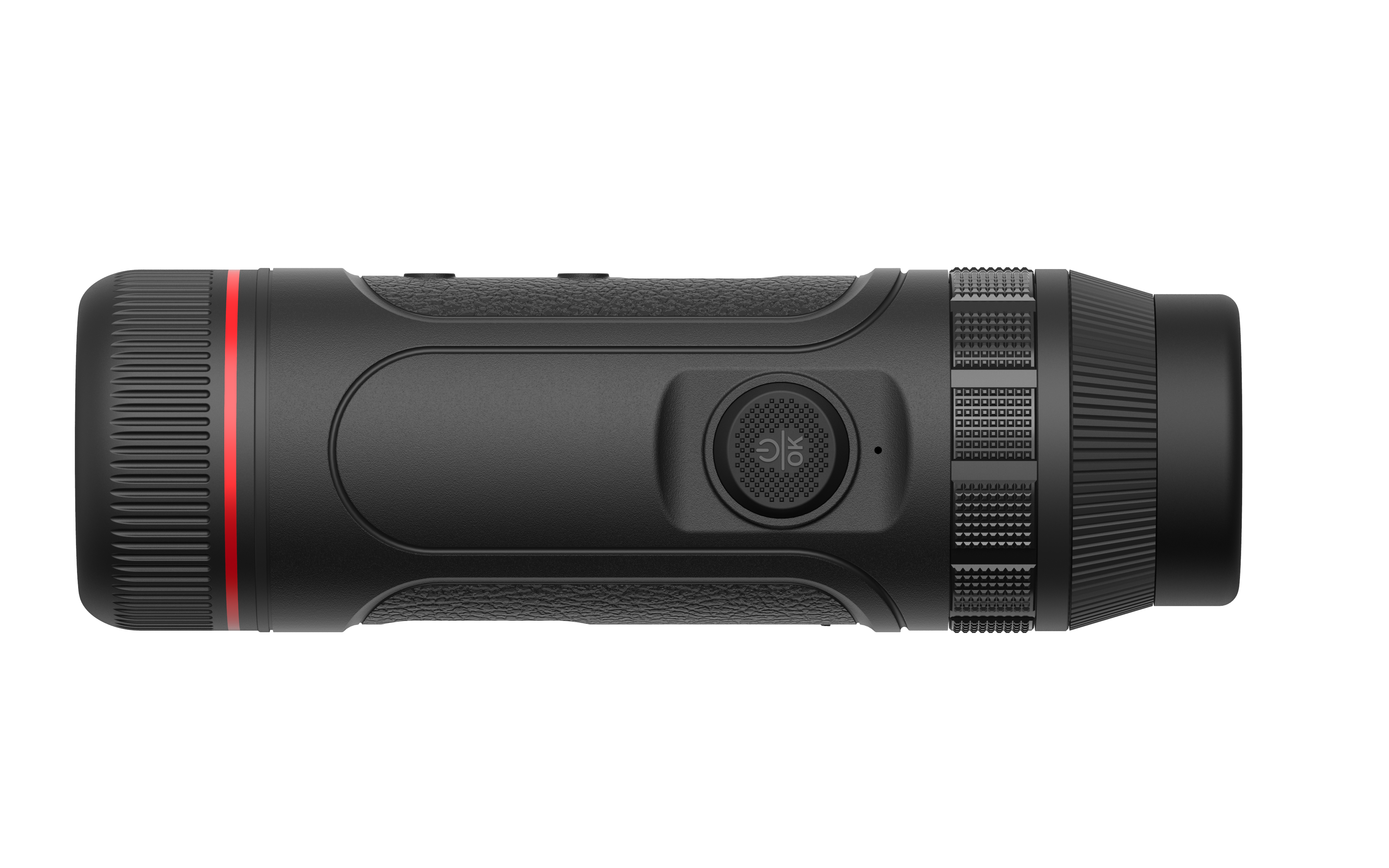

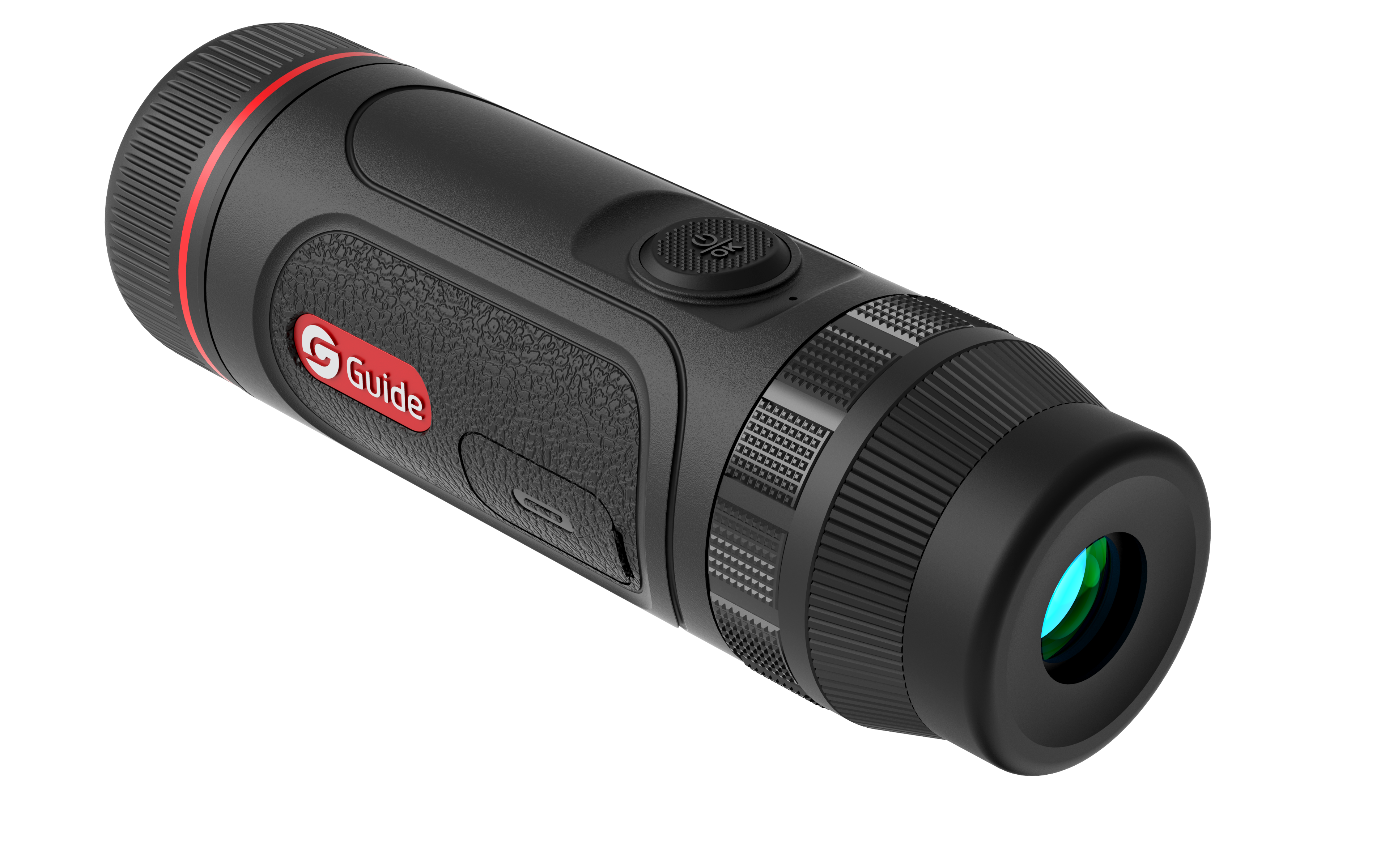

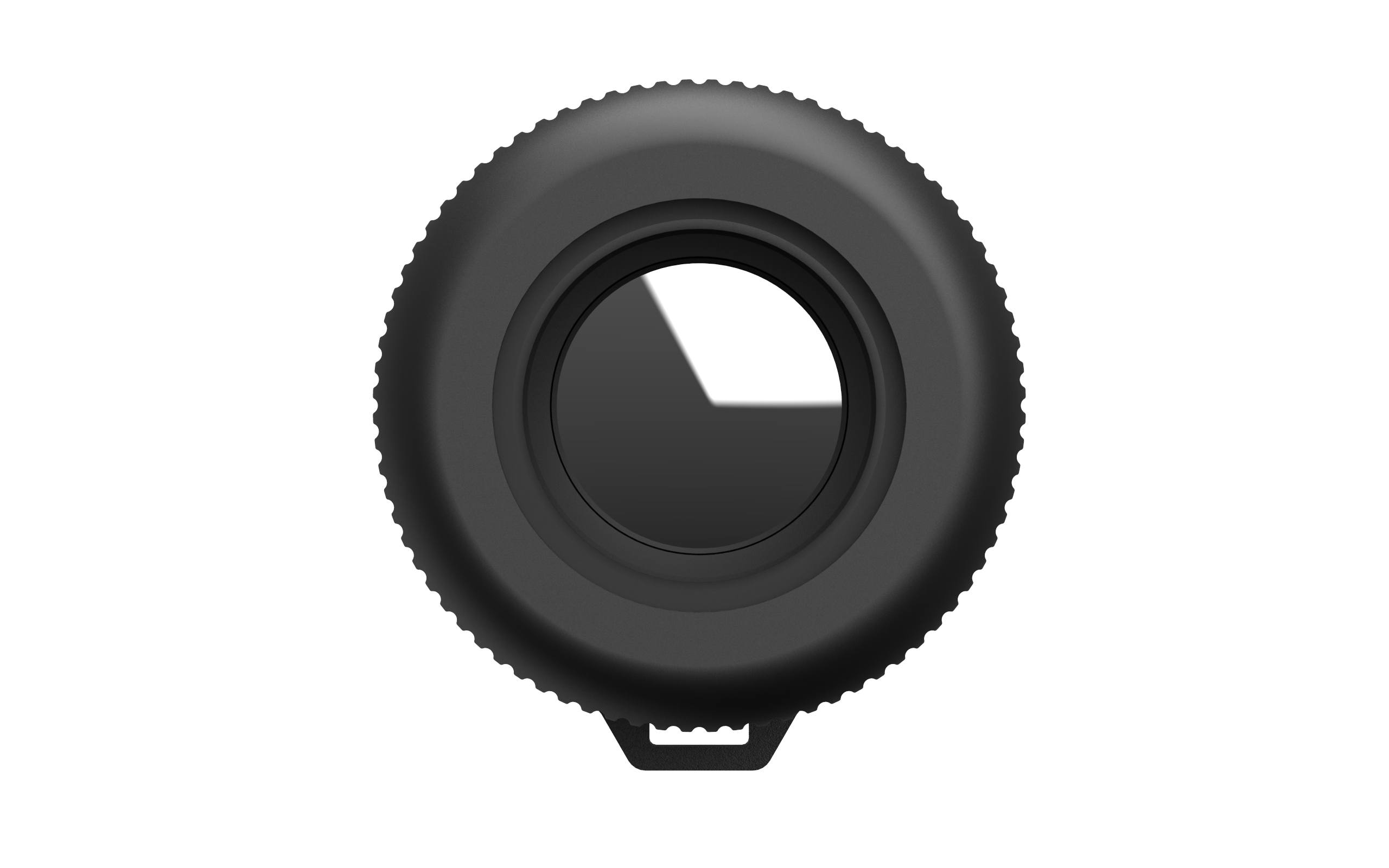

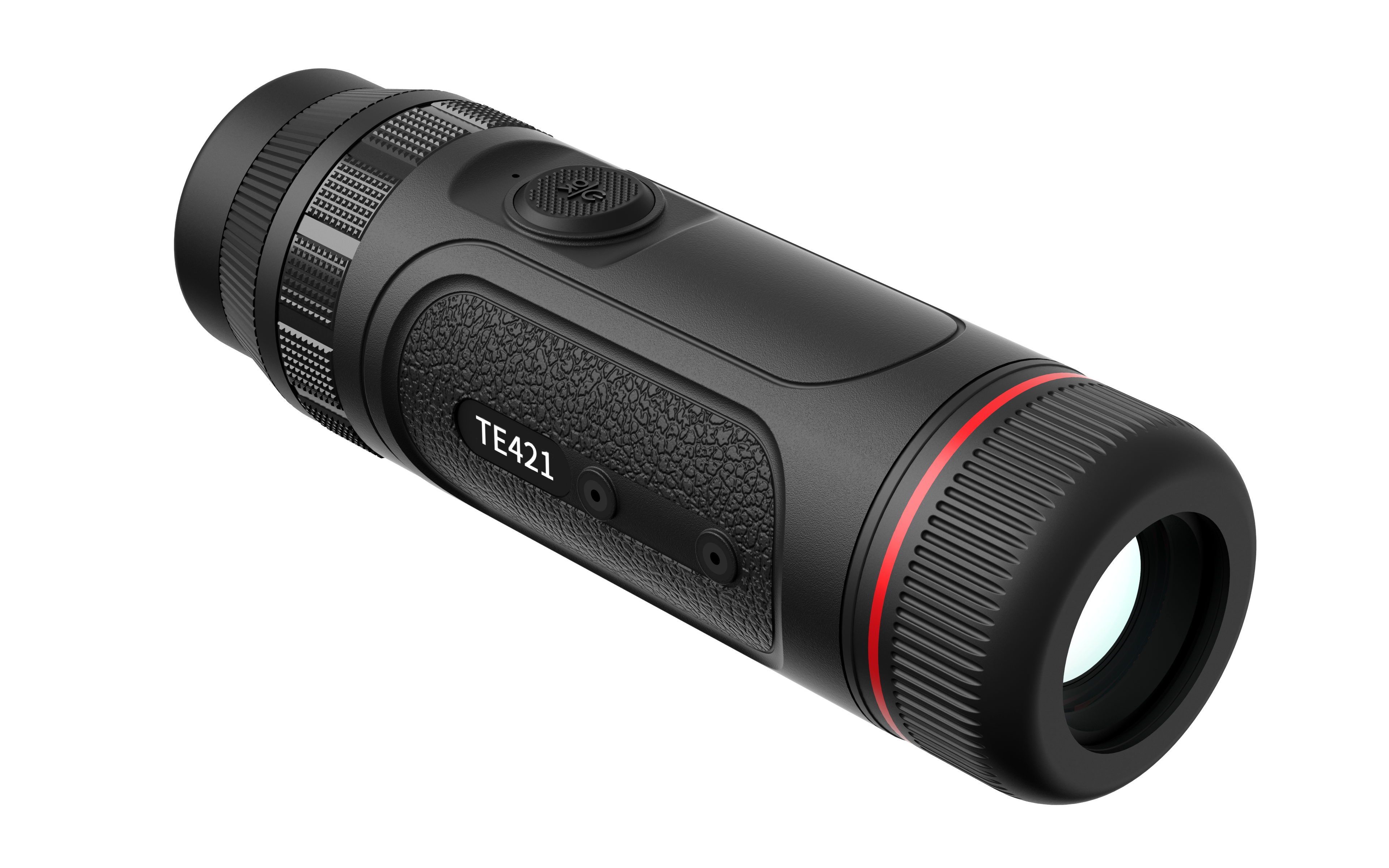

The TE Series Handheld Thermal Imaging Monocular is your compact and reliable night vision solution. Designed with a 400x300 infrared detector and a 25mm lens, it delivers a powerful detection range of up to 1400 yard. Its 0.32'' AMOLED 800×600 ensures clear infrared image viewing without eye strain.
Perfect for extended use, this pocket-sized device offers up to 1 hour of operation with just a quick 10-minute charge. Lightweight, portable, and efficient, the TE Series is the ultimate thermal monocular for outdoor enthusiasts and night hunters.
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||
| Resolution | 400×300@12μm | |||
| NETD | 25mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 25mm, F1.0 | |||
| Field of view | 11°×8.2° | |||
| FOV m@100m | 19×14 | |||
| Magnification | 1.9x~7.6x | |||
| Detection range | 1300m/1400yd | |||
| Focus | Manual | |||
| Display | ||||
|---|---|---|---|---|
| Display type | 0.32'' AMOLED 800×600 | |||
| Color palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia | |||
| Eyepiece | Eye relief: 25mm; Diopter: -5 to +5; Zoom: 14x | |||
| Hardware | ||||
|---|---|---|---|---|
| WIFI | 2.4G, 5G | |||
| Interface | USB Type-C, Support charging | |||
| Others | Microphone, Bluetooth | |||
| System | ||||
|---|---|---|---|---|
| Recording function | Photo/Video (Audio recording included) | |||
| Memory capacity | 16GB | |||
| Power | ||||
|---|---|---|---|---|
| Battery type | Built-in battery | |||
| Operating time | 5 hours (Support 20W quick charging) | |||
| Environmental | ||||
|---|---|---|---|---|
| Operating temp. | -20°C to 50°C / -4°F to +122°F | |||
| Encapsulation | IP67 | |||
| Physical | ||||
|---|---|---|---|---|
| Weight (g/oz) | 295/11.11 | |||
| Size (mm/in) | 47×47×155/1.85×1.85×6.10 | |||
| Standard | Device, Lens cover, Eye mask, Wrist strap, Quick charging adapter, USB Type-C cable, Quick use guide, Safety Information Manual, Warranty card | |||
| Optional | Bluetooth remote control | |||
Tax excluded. Shipping calculated at checkout
Product Features
400×300 @12μm
25mK
50Hz
25mm, F1.0
11°×8.2°
1.9x~7.6x
1400yd
6 Hours (Built-in Battery)
Introducing the Guide Sensmart Compact Monocular TE —the lightest and most compact thermal monocular on the market.
Its compact size allows you to carry it in your pocket or around your neck, it comes with all the features that you can expect, which include: built-in recording and picture capture capabilities, Wi-Fi hotspot, TargetIR app compatibility for storing and sharing images and videos, constant OTA upgrades, IP67 protection rating and 6 hours of battery life. It also features an automatic sleep mode and a quick charge feature.
As always with Guide Sensmart, we are proud to offer a 10-year warranty on your optic and its thermal sensor. We trust our products more than anything else and are the only ones to offer this kind of warranty. With a Texas-based repair center, you can rest assured that you'll get your product back within a week.
