TD 633 LRF Thermal Monocular 2X 640x512 35mm
Tax excluded. Shipping calculated at checkout
NEW TD GEN 3
- 640×512@12μm, 20mK Detector
- One-handed Easy fingertip focus
- 1090yd Laser Rangefinder
- 10 Hours Battery
- 10-Year Warranty

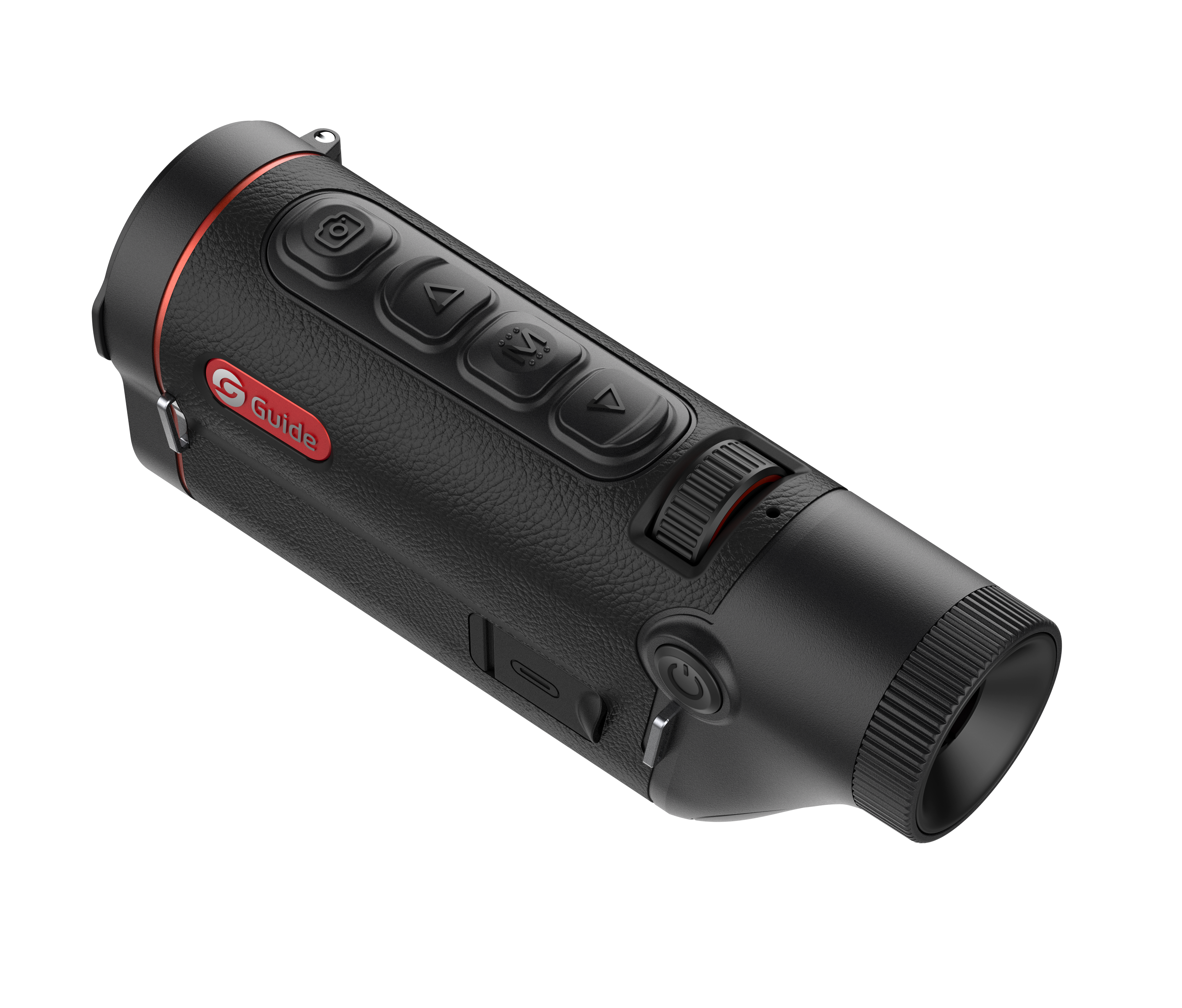

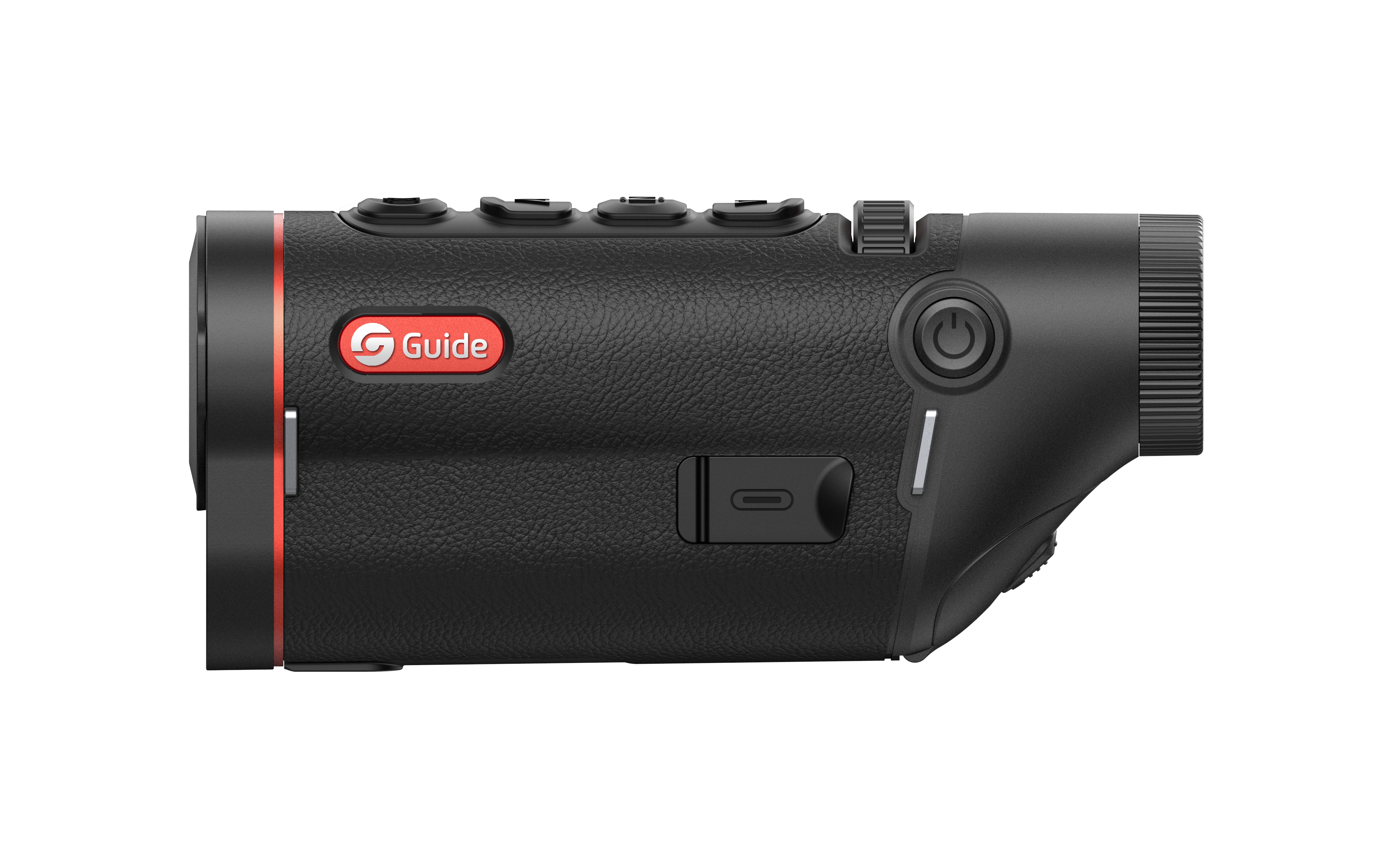

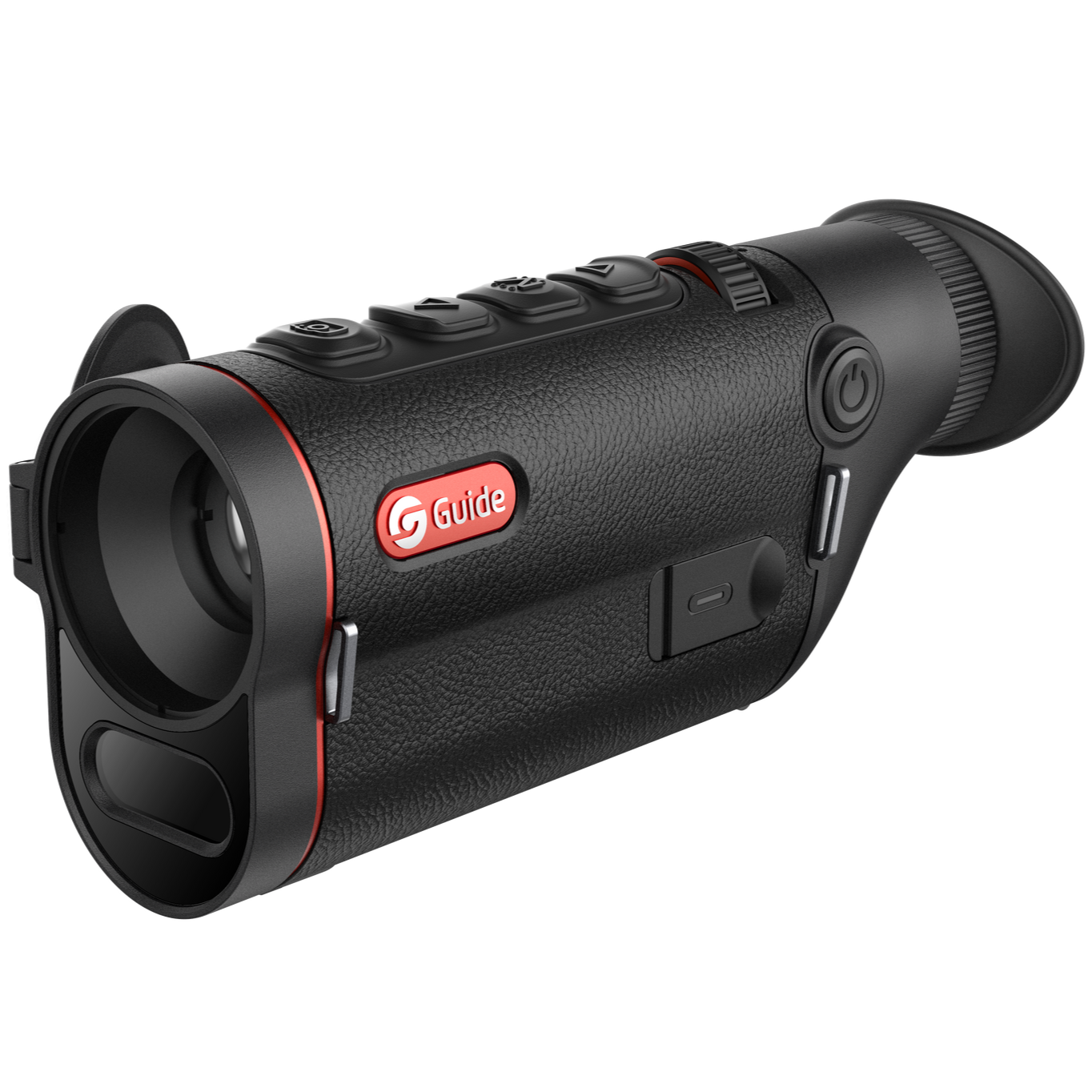

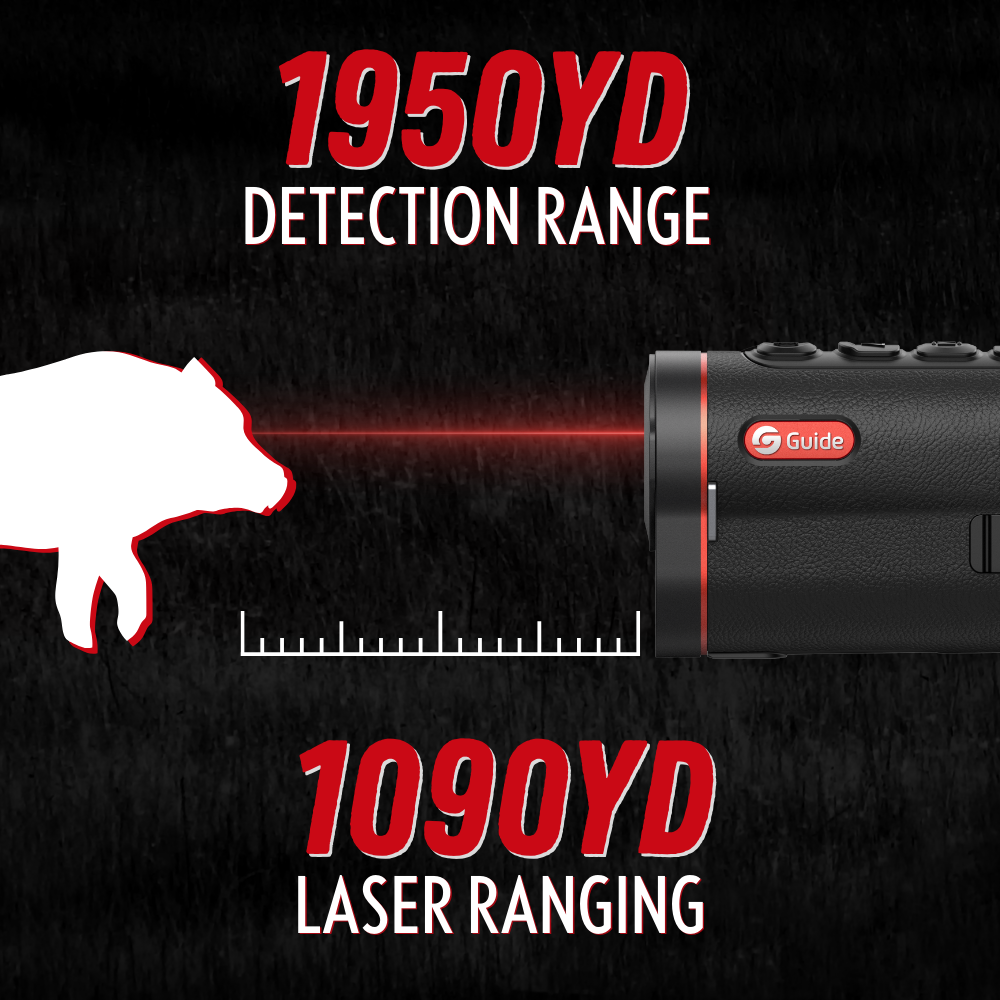

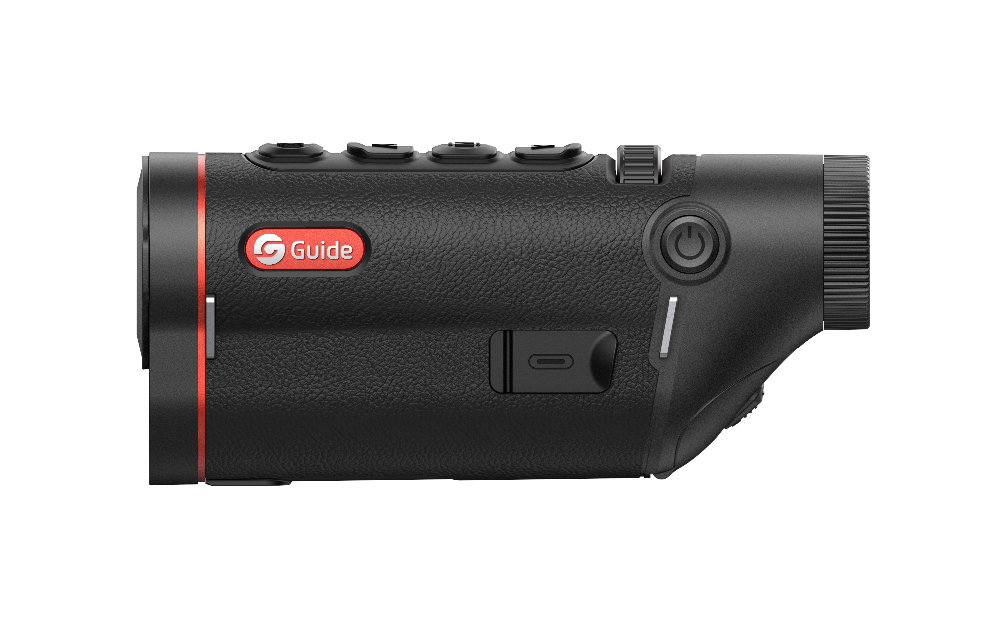

The TD Gen 3 Series Handheld Thermal Imaging Monocular is our latest compact night vision device. Equiped with a 640 x512 infrared detector and a 35mm lens, it delivers a powerful detection range of up to 1950 yard and a laser rangefinder at 1090 yard.

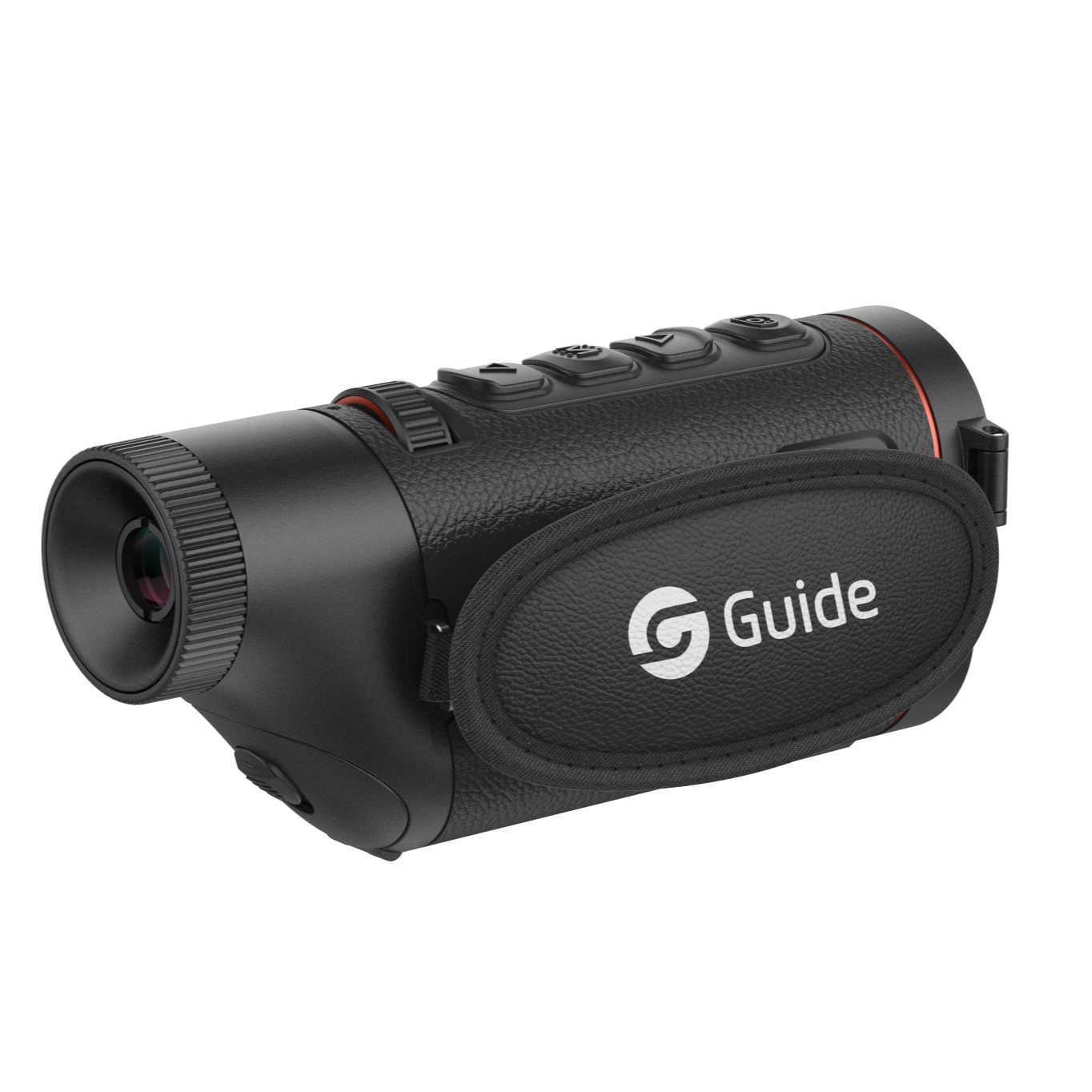

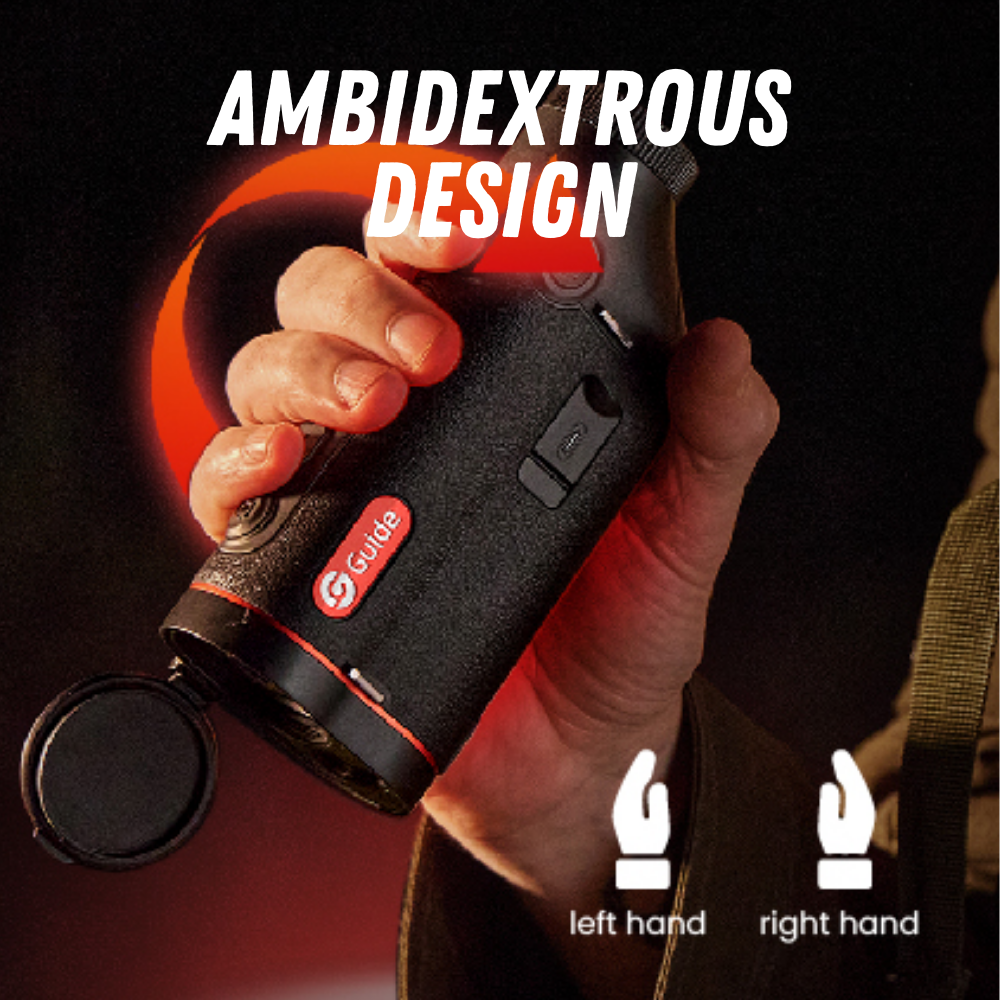

Perfect for all users, its ambidextrous design is ergonomic and enable one-handed operation. Up to 10 hours of runtime with a single 18650 battery, you can trust its performance for a night long hunt.
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||
| Resolution | 640×512@12μm | |||
| NETD | 20mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|

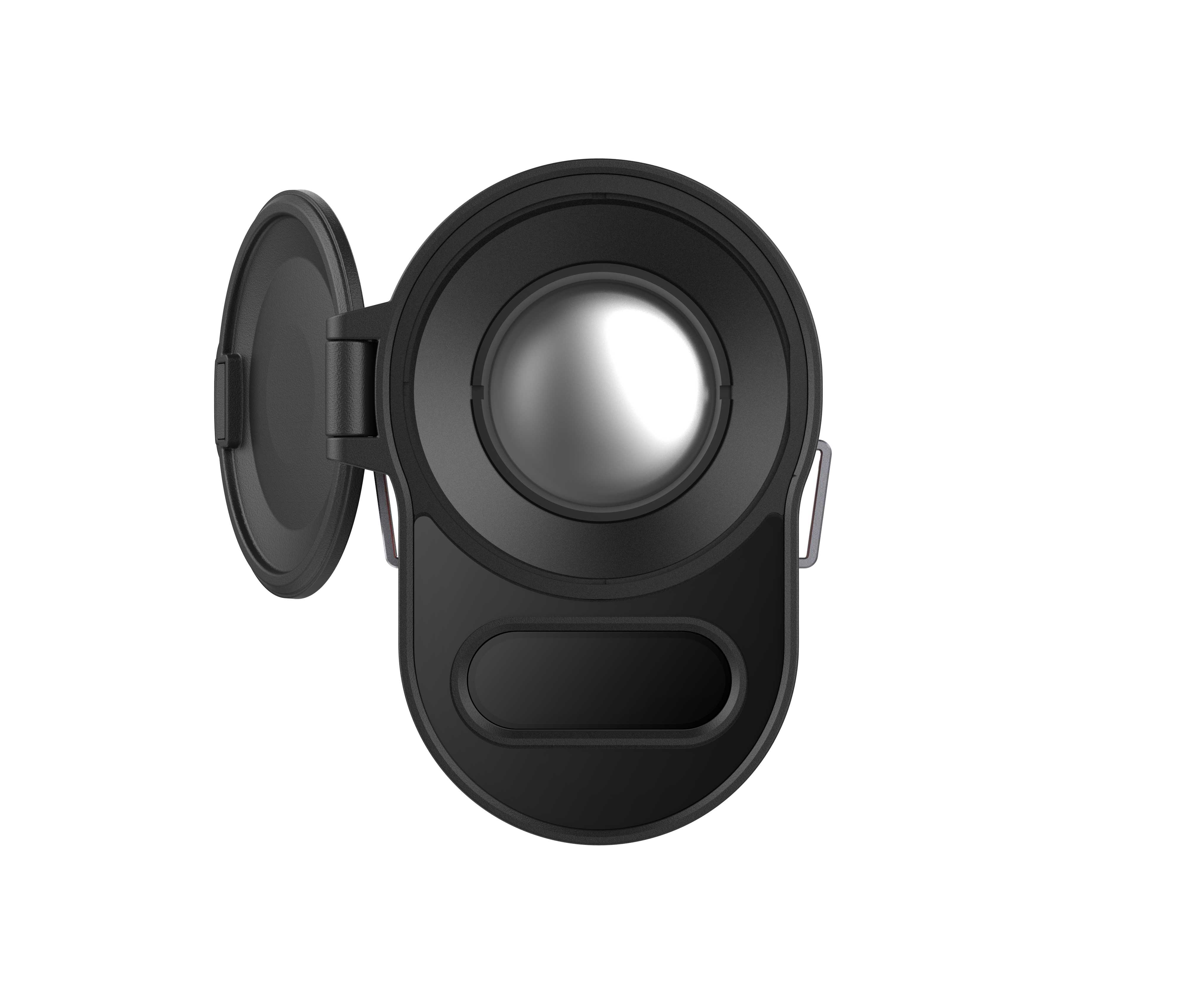

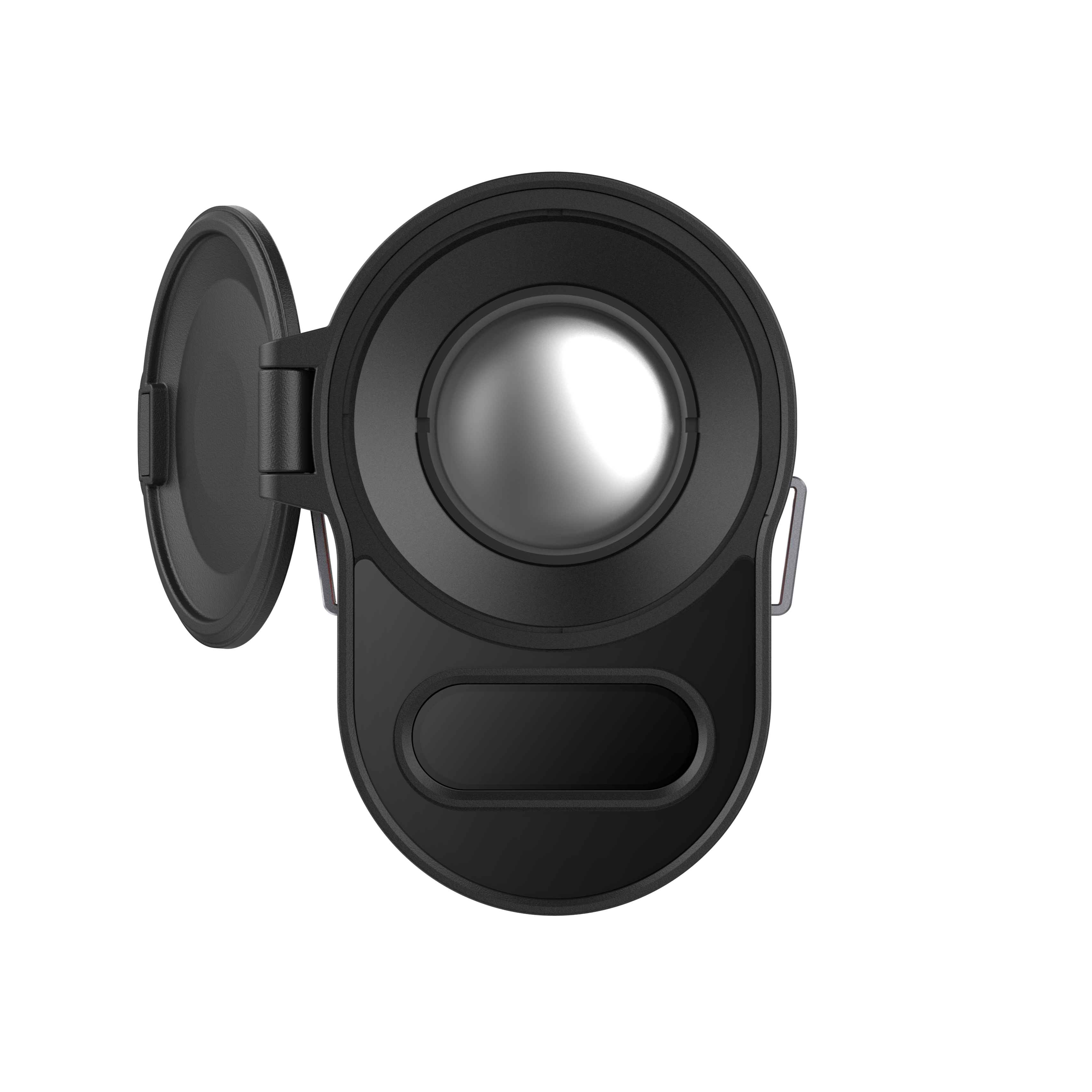

| Objective lens | 35mm F1.0 | |||
| Field of view | 12.5°×10° | |||
| FOV m@100m | 22×17 | |||
| Magnification | 2.0x~16x | |||
| Detection range | 1800m/1950yd | |||
| Focus | Manual | |||
| Digital Zoom | 8x | |||
| Display | ||||
|---|---|---|---|---|
| Display type | 0.36'' AMOLED 1280×960 | |||
| Color palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia | |||
| Eyepiece | Eye relief: 20mm; Diopter: -6 to +6; Zoom: 13.8x | |||
| Hardware | ||||
|---|---|---|---|---|
| Laser rangefinder | 1000m/1090yd | |||
| WIFI | 2.4G, 5G | |||
| Interface | USB-C | |||
| Others | Microphone, Bluetooth | |||
| System | ||||
|---|---|---|---|---|
| Recording function | Photo/Video (Audio recording included) | |||
| Memory capacity | 32GB | |||
| Power | ||||
|---|---|---|---|---|
| Battery type | Single, Replaceable 18650 Battery | |||
| Operating time | 10 hours | |||
| Environmental | ||||
|---|---|---|---|---|
| Operating temp. | -20°C to 50°C / -4°F to +122°F | |||
| Encapsulation | IP67 | |||
| Physical | ||||
|---|---|---|---|---|
| Weight (g/oz) | 376/13.26 | |||
| Size (mm/in) | 159×54×74/6.26×2.13×2.91 | |||
| Standard | Device, Dust-Free Cloth, Hand Strap, Eye Mask, Battery Charger, 18650 Battery ×1, 5V 2A Adapter (US, UK, Australia, and Europe), USB-A to USB-C Cable, Quick Start Guide, Warranty Card | |||
| Optional | Bluetooth Remote Control, 18650 Battery | |||
Product Features
640x512 @12μm
20mK
50Hz
35mm, F1.0
12.5°×10°
2x~16x
1950yd
10 hours
|  |  |  |  | |
|---|---|---|---|---|---|
| General | |||||
Objective Lens |
|
|
|
|
|
Base Magnification |
|
|
|
|
|
Sensor Resolution |
|
|
|
|
|
Detection Range |
|
|
|
|
|
Display Type |
|
|
|
|
|
Weight |
|
|
|
|
|
Meet the all-new TD Gen3 Series — engineered for hunters who demand precision, power, and performance in the palm of their hand.

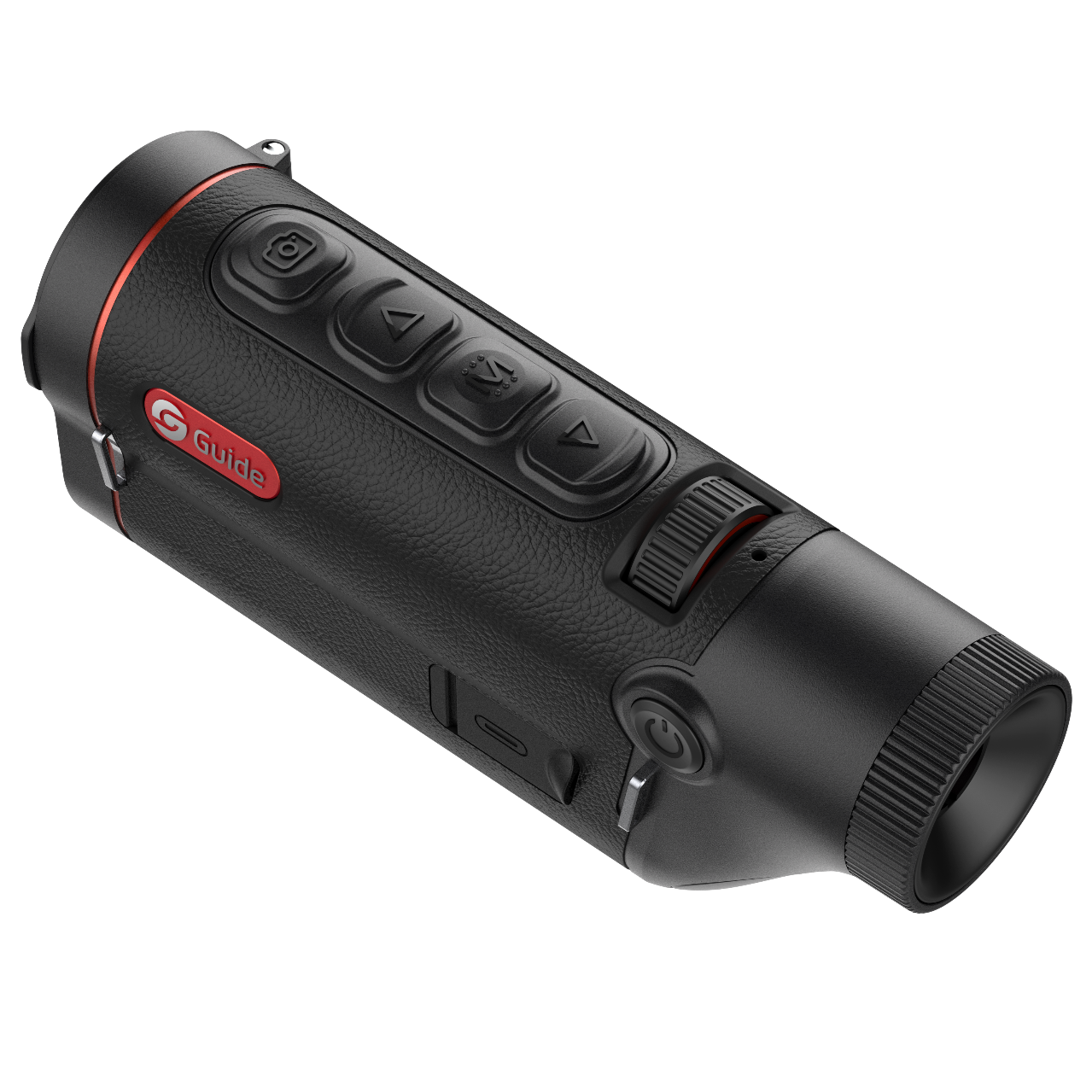

🔍 With Fingertip Focus, experience smooth one-handed control through a smartly placed focusing roller. The 12μm thermal sensor with NETD ≤20mK delivers razor-sharp thermal images, even in the harshest conditions.
🛠️ Ergonomic design, 10-hour battery life, IP67 waterproofing, and dual-band Wi-Fi — this monocular is your reliable partner for day-long outdoor exploration and real-time sharing.

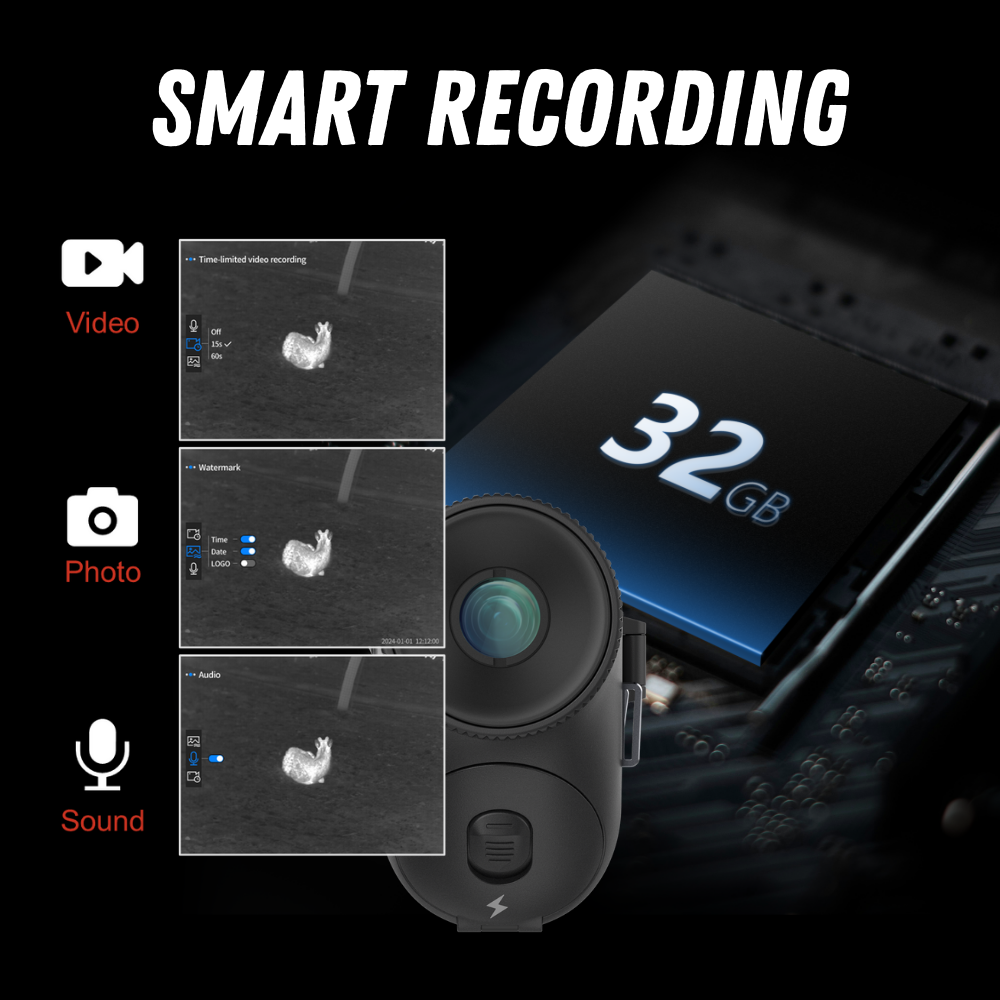

📸 Capture every moment with built-in 32GB storage for photos, videos, and even audio recordings.
