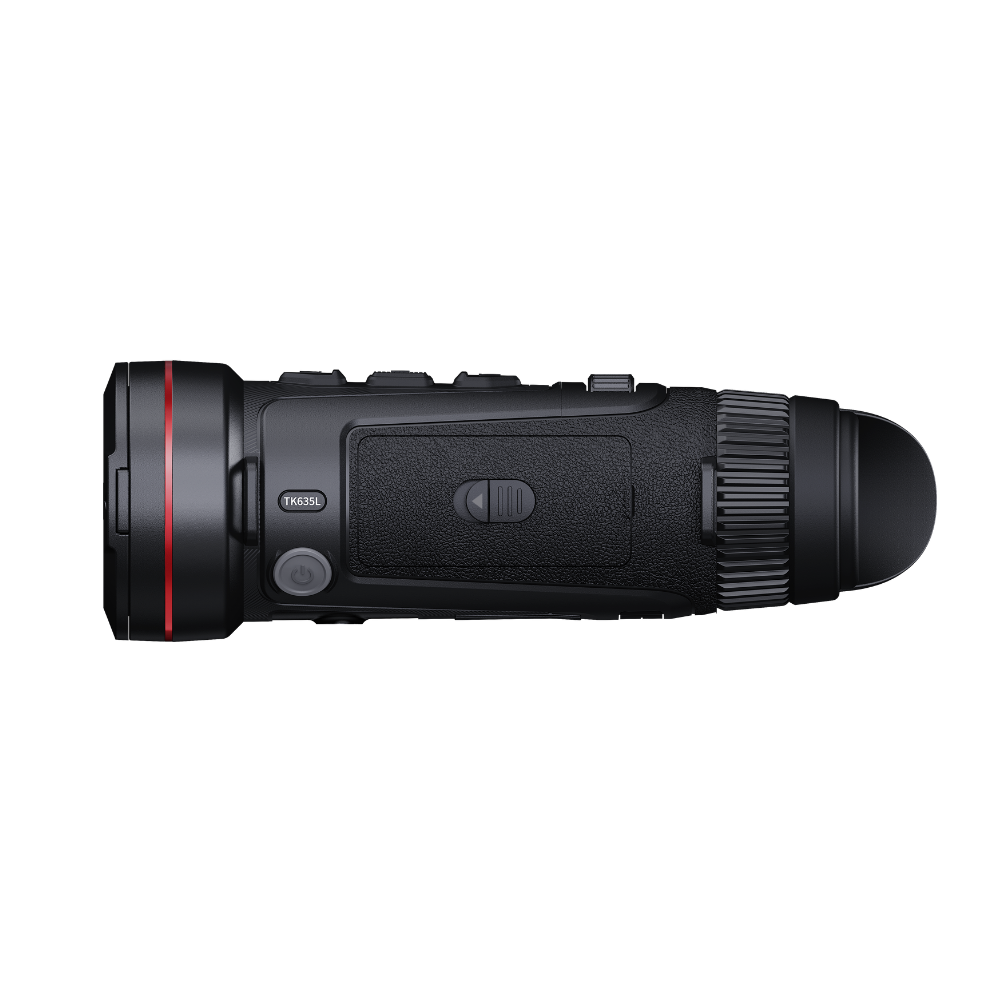

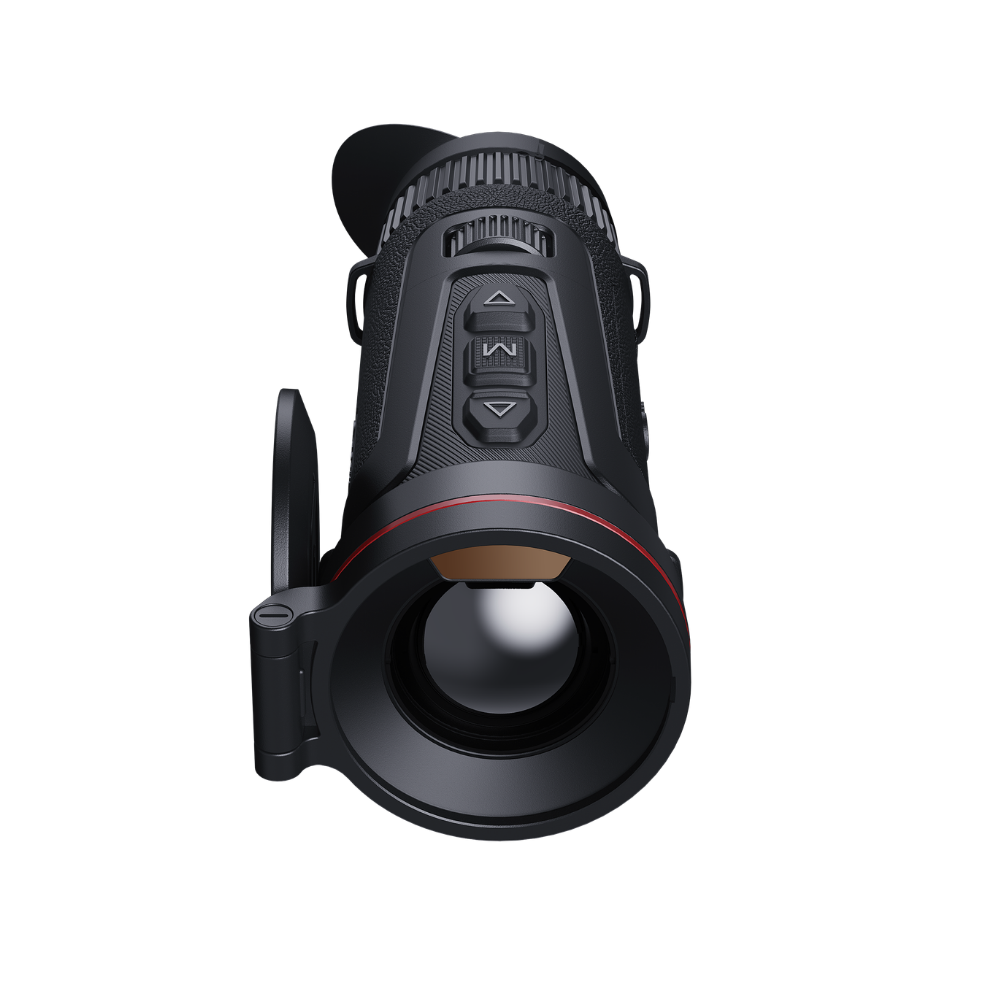

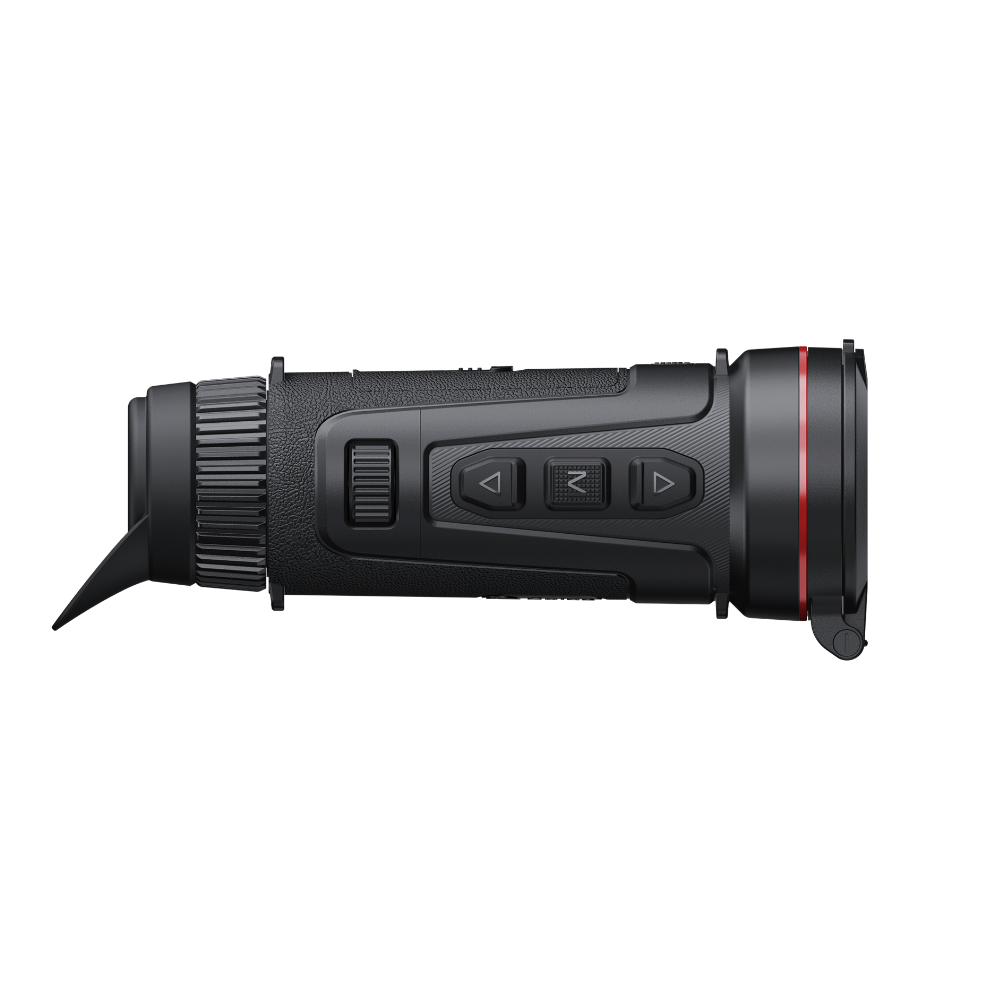

Kodiak TK635 LRF 3.0
Thermal Monocular
Tax excluded. Shipping calculated at checkout
- 640x512 Apex Vision Thermal High Quality Sensor
- 2.8x Base Magnification, 8x Digital Zoom
- 1.03'' AMOLED 2560×2560: Ultra-Wide Display
- 1950yd Detection Range
- 5.5 hours Battery Life,
| Sensor | ||||
|---|---|---|---|---|
| Core technology | Powered by the complete ApexVision S1 architecture, the ApexCore S1 detector, Nexus 1.0 platform, and Hyper-Light 3.0 algorithm. | |||
| Detector Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||
| Resolution | 640×512@12μm | |||
| NETD | 15mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 35mm F0.9 | |||
| Field of view | 12.5°×10° | |||
| FOV m@100m | 21.9×17.6 | |||
| Magnification | 2.8x-22.4x | |||
| Detection range | 1950yd | |||
| Focus | Manual | |||
| Digital Zoom | 8x | |||
| Display | ||||
|---|---|---|---|---|
| Display type | 1.03″AMOLED 2560×2560 | |||
| Color palettes | White Hot, Black Hot, Amber Sepia, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia | |||
| Eyepiece | Eye relief: 30 mm; Diopter: -6 to +6 | |||
| Hardware | ||||
|---|---|---|---|---|
| Laser rangefinder | 1300yd | |||
| WIFI | 2.4G, 5G | |||
| Interface | USB-C | |||
| Others | Microphone, Bluetooth | |||
| System | ||||
|---|---|---|---|---|
| Recording function | Photo/Video (Audio recording included) | |||
| Memory capacity | 64GB | |||
| Power | ||||
|---|---|---|---|---|
| Battery type | 1 ×replaceable dedicated battery (USB-C Rechargeable) | |||
| Operating time | 5.5 hours | |||
| Environmental | ||||
|---|---|---|---|---|
| Operating temp. | -4°F to +122°F | |||
| Encapsulation | IP67 | |||
| Physical | ||||
|---|---|---|---|---|
| Weight (oz) | 18.48 (battery included) | |||
| Size (in) | 7.17×2.64×3.11 | |||
| Standard | Device, Hand Strap, Neck Strap, Carry Bag, Lint-Free Cloth, Dedicated Battery×2, 5V 2A Adapter, USB-A to USB-C Cable, Quick Start Guide, Warranty Card | |||
| Optional | Bluetooth Remote Control, Dedicated Battery | |||
This item is currently on pre-order and will ship in October 2026. You can pre-order now or contact us at contact@guideir-thermal.com for more information.
Kodiak TK635 LRF 3.0 Thermal Monocular 2.8x 640x512 35mm
Sale price$2,499.00
|  |  |  | |
|---|---|---|---|---|
| General | ||||
Objective Lens |
|
|
|
|
Base Magnification |
|
|
|
|
Sensor Resolution |
|
|
|
|
Detection Range |
|
|
|
|
Laser Rangefinder |
|
|
|
|
Digital Zoom |
|
|
|
|
Display Type |
|
|
|
|
Weight |
|
|
|
|
Included Accessories

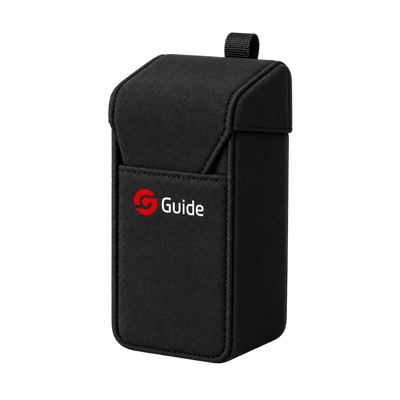

Monocular Case

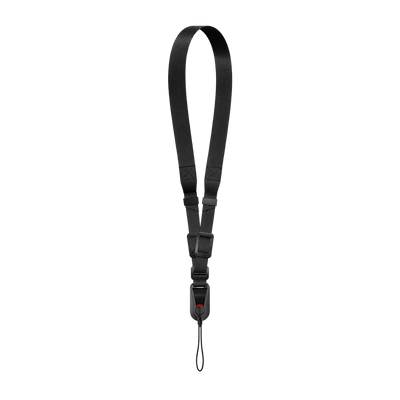

Neck Strap

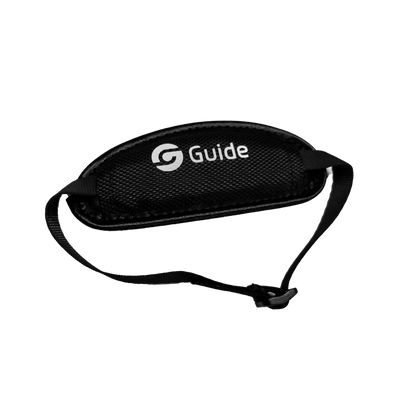

Hand Strap

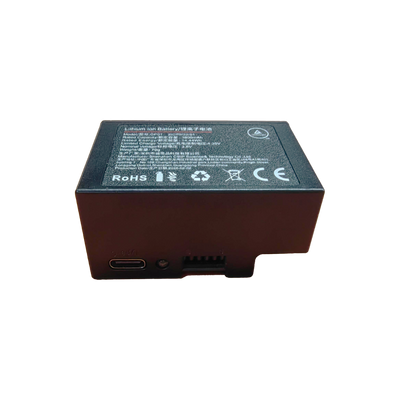

USB-C Rechargeable Battery (x2)

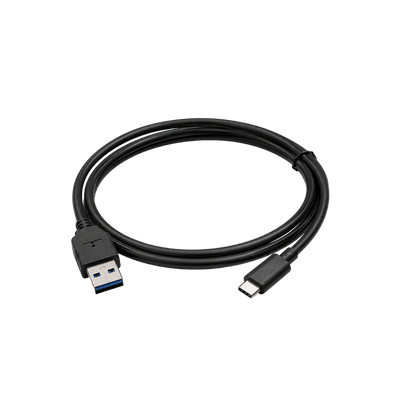

USB-CC Cable

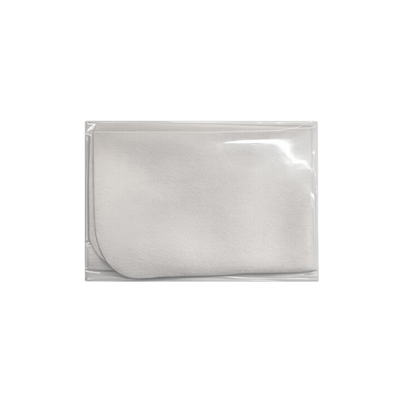

Lens Cloth
