Orion O635CS Clip-On
!! NEW 2026 !!
- 640x512 Thermal High Quality Sensor
- 0.49'' AMOLED 1920×1080: Ultra-Wide Display
- 1950yd Detection Range
- Handheld Monocular Mode
- 7 hours Battery Life, Rechargeable 18500 Battery
| Sensor | ||||
|---|---|---|---|---|
| Core technology | Equipped with full ApexVision S1: Detector ApexCore S1 + Platform Nexus 1.0 + Algorithm Hyper-Light 2.0 | |||
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||
| Resolution | 640×512@12μm | |||
| NETD | 15mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 35mm, F0.9 | |||
| Field of view | 12.5°×9.4° | |||
| FOV m@100m | 22×17 | |||
| Magnification | 1x | |||
| Detection range | 1950yd | |||
| Focus | Manual | |||
| Display | ||||
|---|---|---|---|---|
| Display type | 0.49'' AMOLED 1920×1080 | |||
| Color palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia | |||
| Eyepiece | Eye relief: 20mm | |||
| Hardware | ||||
|---|---|---|---|---|
| Interface | USB-C (Power supply) | |||
| Power | ||||
|---|---|---|---|---|
| Battery type | Single, Replaceable 18500 Battery | |||
| Operating time | 7 hours | |||
| Environmental | ||||
|---|---|---|---|---|
| Operating temp. | -4°F to +122°F | |||
| Shock | 6000J | |||
| Encapsulation | IP67 | |||
| Physical | ||||
|---|---|---|---|---|
| Weight (g/oz) | 10.05 | |||
| Size (mm/in) | 3.90×2.87×2.67 | |||
| Standard | Device, Carry Bag, Accessory Bag, Lint-Free Cloth, Battery Charger, 18500 Battery ×2, USB-A to USB-C Cable, Quick Start Guide, Warranty Card | |||
| Optional | Adapter Ring, 18500 Battery | |||
This item is currently on backorder and will ship mid-May. You can pre-order now or contact us at contact@guideir-thermal.com for more information.
THE MOST VERSATILE CLIP-ON ATTACHMENT EVER

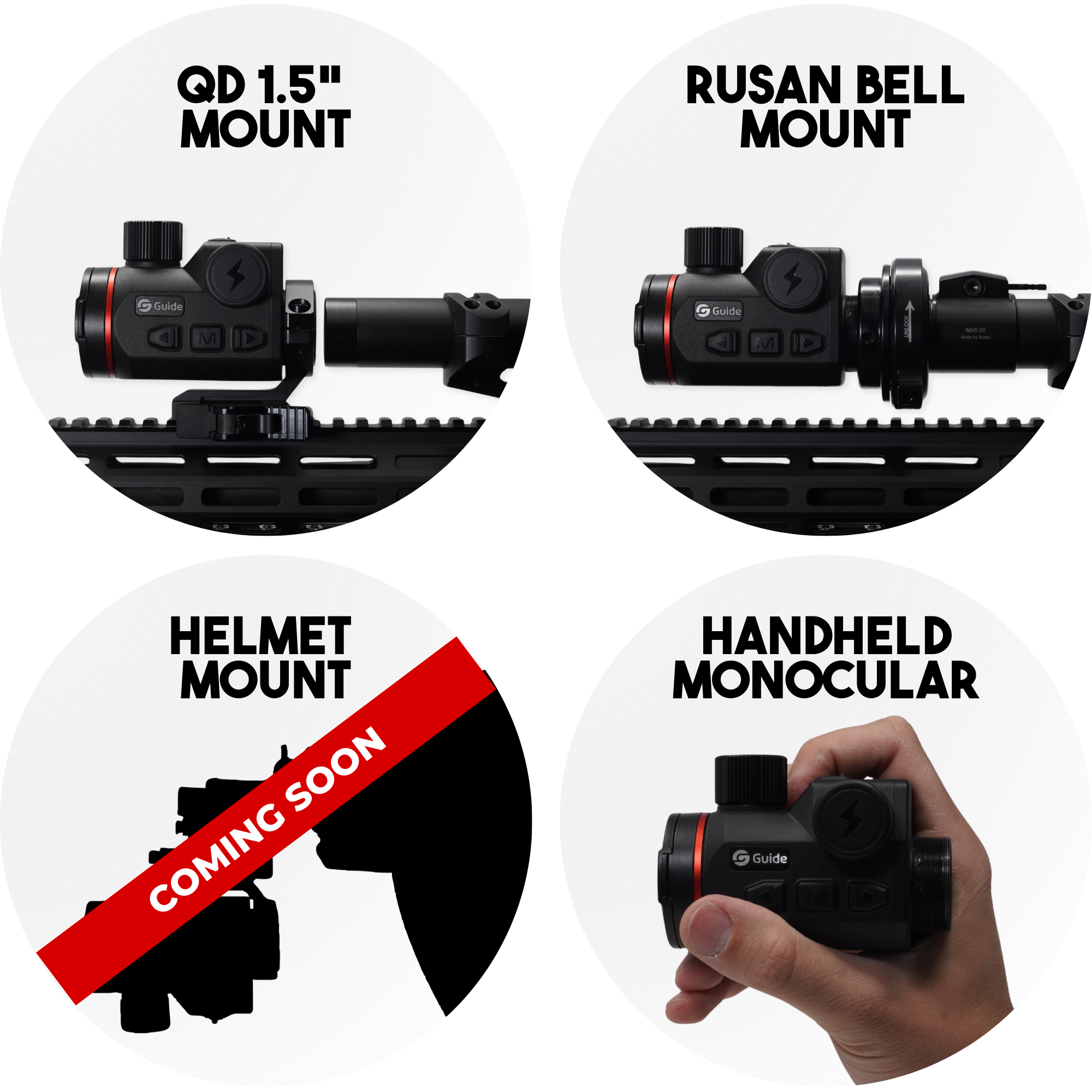

Versatile 2-in-1 Design
Transform your Orion clip-on into a handheld thermal monocular with the screen zoom feature. Enjoy a comfortable viewing experience with this 2-in-1 thermal optic, perfect for both hunting and surveillance. The 0.49-inch AMOLED display delivers crisp, vivid thermal images while reducing eye strain—even during extended nighttime observation.
AI-Powered Visual Clarity
Experience next-level thermal imaging with the Hyper-Light 2.0 AI algorithm. This advanced technology enhances:
Contrast & brightness for sharper details, Target highlighting for quick identification, Tone balance for natural, high-definition imaging
Ultra-Light & Compact
Every ounces counts when you’re in the field. The Orion C is engineered for extreme weight and size optimization, making it one of the lightest 640×512 thermal clip-ons available at 10 ounces. Its compact design reduces setup weight, improves balance, and ensures a more comfortable, stable hunting experience.
Ultra-Low Power Consumption
Hunt all night long with optimized power efficiency. A single 18500 battery provides up to 6.5 hours of runtime, while two batteries easily last through an entire night of hunting. No more worrying about power—just focus on your hunt.
Built for Real Hunting Conditions
The Orion C is built tough to handle the demands of real-world hunting:
Recoil-resistant up to 6000 J – Stays stable even under heavy recoil, IP67 waterproof rating – Reliable performance in rain, fog, and harsh environments, No matter the conditions, the Orion C delivers stability and reliability when it matters most.
10-Year Warranty – Your Peace of Mind
We stand behind our products with an industry-leading 10-year warranty. If you ever encounter an issue, we’re here to support you. Your satisfaction and confidence are our top priorities.
| |  |  | |
|---|---|---|---|---|
| General | ||||
Thermal Sensor Resolution |
|
|
|
|
Objective Lens |
|
|
|
|
Detection Range |
|
|
|
|
Laser Rangefinder |
|
|
|
|
Display Size |
|
|
|
|
Weight |
|
|
|
|
Mount Type |
|
|
|
|
Battery Life |
|
|
|
|
Battery Type |
|
|
|
|
640x512
Thermal Sensor
Why using a thermal clip-on?
A thermal clip-on offers unmatched versatility and cost-efficiency compared to a dedicated thermal scope.
Clip-ons attach directly to your existing daytime optic, allowing you to switch seamlessly between thermal and traditional viewing without re-zeroing or carrying extra gear.
Whether you’re scanning for game at dawn or navigating low-light conditions, a thermal clip-on like the new Guide Orion delivers performance, convenience, and value
Why Choose the Orion C?
✔ 2-in-1 functionality – Clip-on and handheld monocular
✔ AI-enhanced thermal imaging for superior clarity
✔ Ultra-lightweight & compact for easy portability
✔ All-night battery life for uninterrupted hunting
✔ Rugged & weatherproof for real-world durability
✔ 10-year warranty for long-term reliability
Upgrade your hunting gear with the Orion C—where innovation meets performance.
