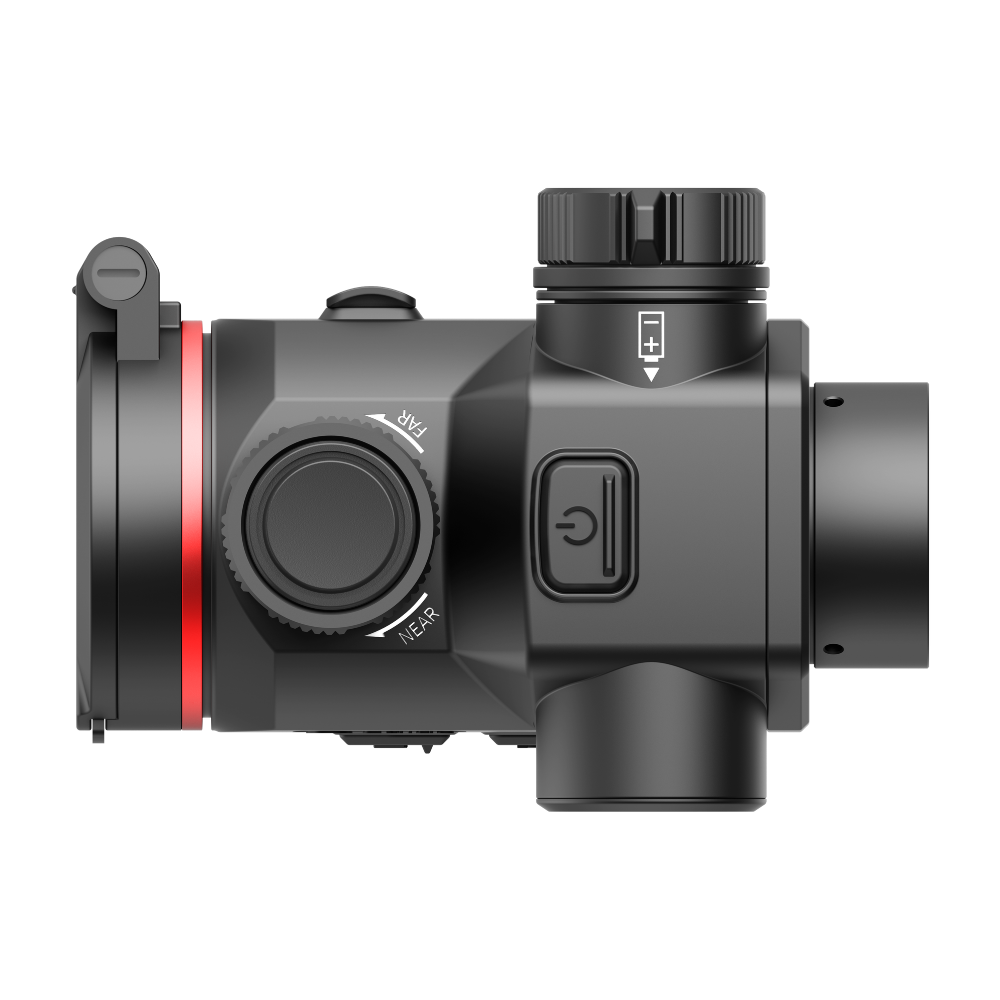

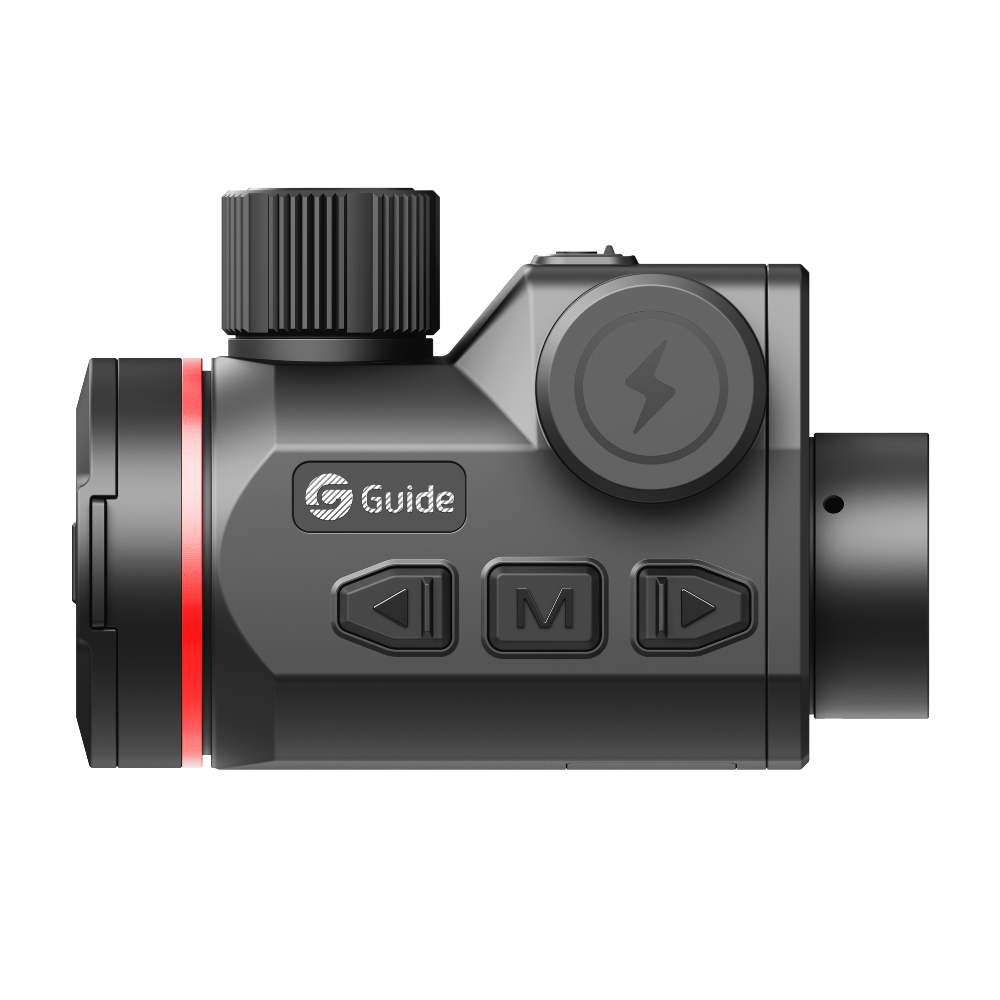

Orion O435CS Clip-On
Tax excluded. Shipping calculated at checkout
!! NEW 2026 !!
- 400x300 15mK Thermal High Quality Sensor
- 0.39'' AMOLED 1024×768: Ultra-Wide Display
- 1950yd Detection Range
- 10 Oz, Ultra Lightweight
- Handheld Monocular Mode
- 8 hours Battery Life, Rechargeable 18500 Battery
| Sensor | ||||
|---|---|---|---|---|
| Core technology | Equipped with full ApexVision S1 system architecture: Detector ApexCore S1 + Platform Nexus 1.0 + Algorithm Hyper-Light 2.0 | |||
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||
| Resolution | 400×300@12μm | |||
| NETD | 15mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 35mm, F0.9 | |||
| Field of view | 7.9°×5.9° | |||
| FOV m@100m | 13×10 | |||
| Magnification | 1x | |||
| Detection range | 1800m/1950yd | |||
| Focus | Manual | |||
| Display | ||||
|---|---|---|---|---|
| Display type | 0.39'' AMOLED 1024×768 | |||
| Color palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia | |||
| Eyepiece | Eye relief: 20mm | |||
| Hardware | ||||
|---|---|---|---|---|
| Interface | USB-C (Power supply) | |||
| Power | ||||
|---|---|---|---|---|
| Battery type | Single, Replaceable 18500 Battery | |||
| Operating time | 8 hours | |||
| Environmental | ||||
|---|---|---|---|---|
| Operating temp. | -4°F to +122°F | |||
| Shock | 6000J | |||
| Encapsulation | IP67 | |||
| Physical | ||||
|---|---|---|---|---|
| Weight (oz) | 10.05 | |||
| Size (in) | 3.90×2.87×2.67 | |||
| Standard | Device, Carry Bag, Accessory Bag, Lint-Free Cloth, Battery Charger, 18500 Battery ×2, USB-A to USB-C Cable, Quick Start Guide, Warranty Card | |||
| Optional | Adapter Ring, 18500 Battery | |||
This item is currently on backorder and will ship mid-April. You can pre-order now or contact us at contact@guideir-thermal.com for more information.
THE MOST VERSATILE CLIP-ON ATTACHMENT
| |  | |
|---|---|---|---|
| General | |||
Thermal Sensor Resolution |
|
|
|
Objective Lens |
|
|
|
Detection Range |
|
|
|
Laser Rangefinder |
|
|
|
Display Size |
|
|
|
Weight |
|
|
|
Mount Type |
|
|
|
Battery Life |
|
|
|
Battery Type |
|
|
|
Versatile 2-in-1 Design
Transform your Orion clip-on into a handheld thermal monocular with the screen zoom feature. Enjoy a comfortable viewing experience with this 2-in-1 thermal optic, perfect for both hunting and surveillance. The 0.39-inch AMOLED display delivers crisp, vivid thermal images while reducing eye strain—even during extended nighttime observation.

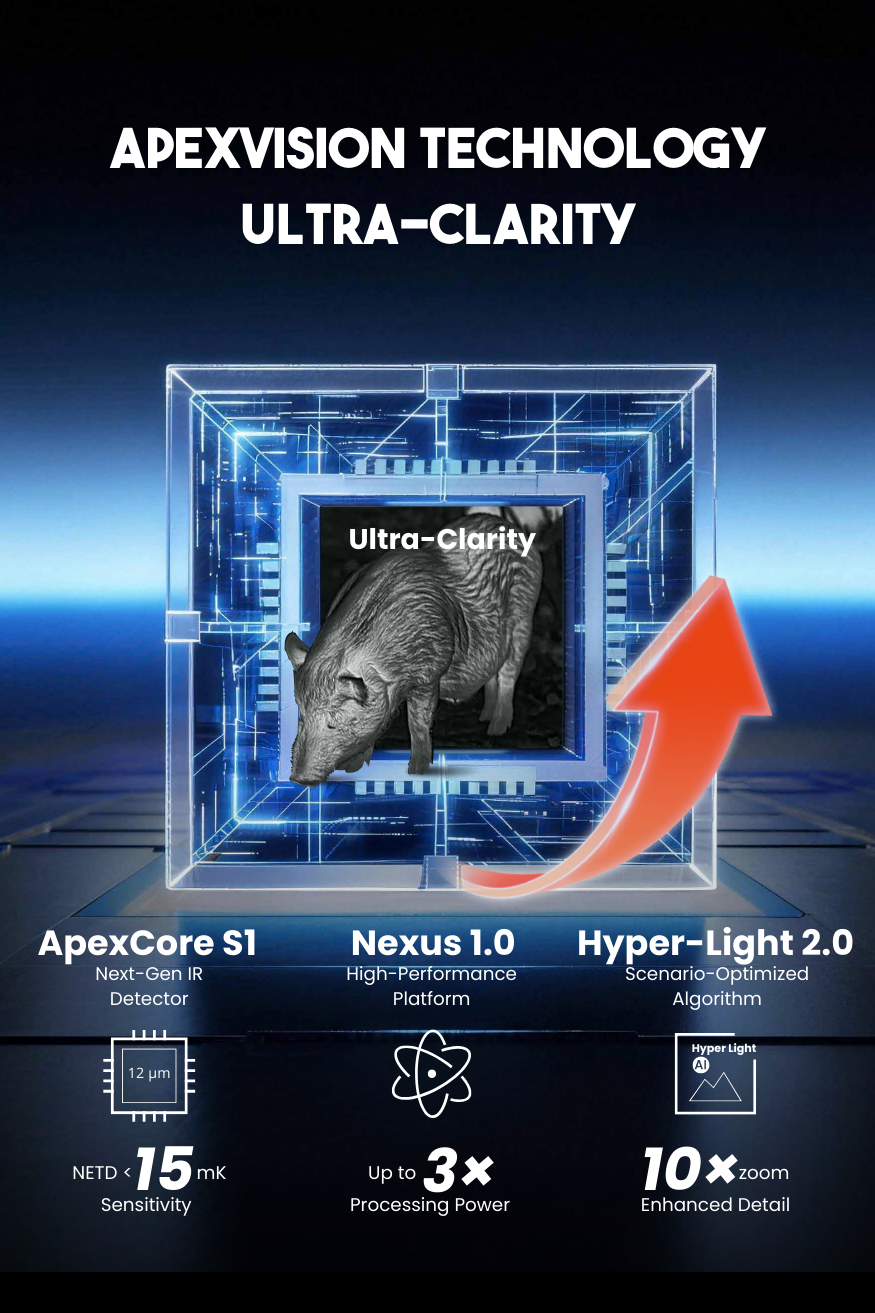

AI-Powered Visual Clarity
Experience next-level thermal imaging with the Hyper-Light 2.0 AI algorithm. This advanced technology enhances:
Contrast & brightness for sharper details, Target highlighting for quick identification, Tone balance for natural, high-definition imaging

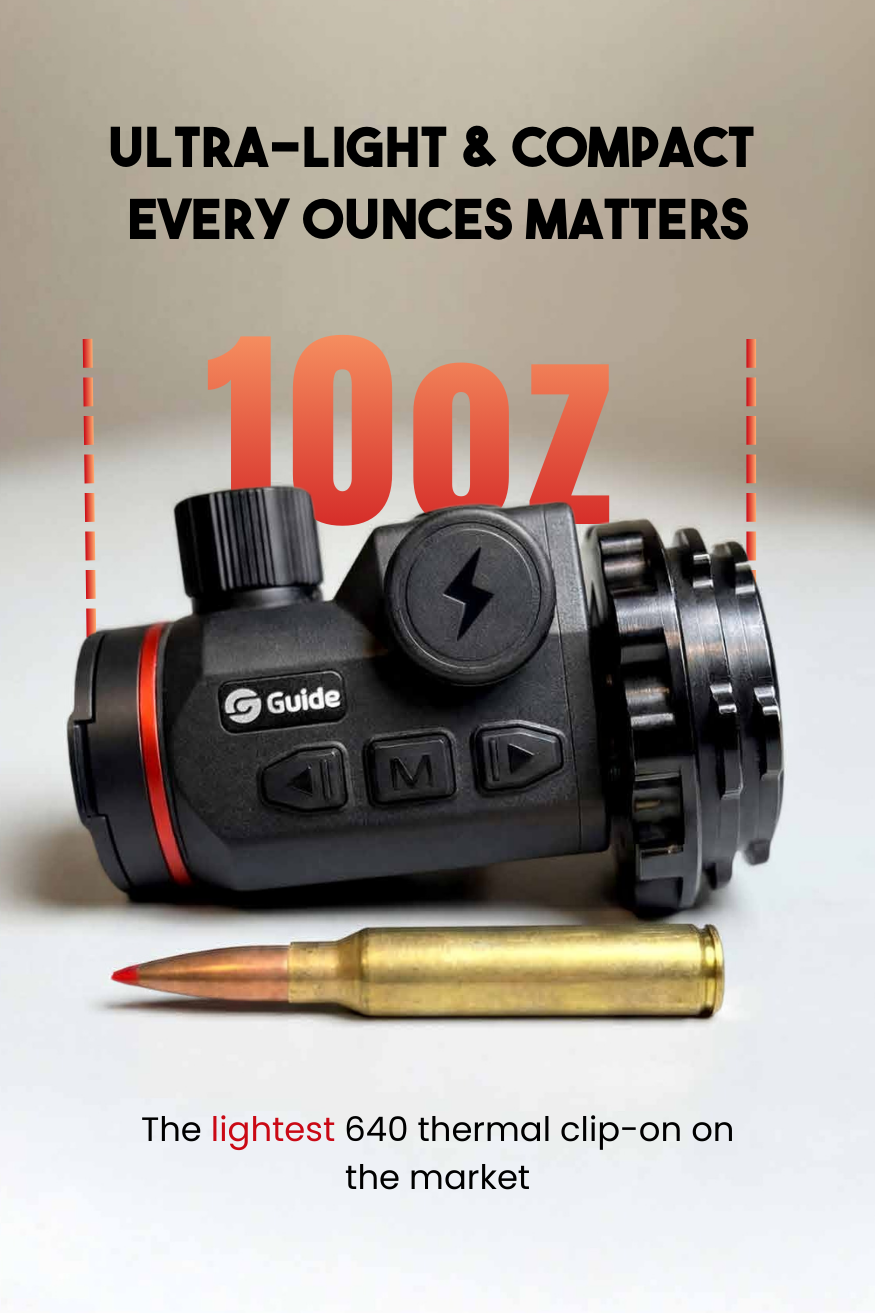

Ultra-Light & Compact
Every ounces counts when you’re in the field. The Orion C is engineered for extreme weight and size optimization, making it one of the lightest 400×300 thermal clip-ons available at 10 ounces. Its compact design reduces setup weight, improves balance, and ensures a more comfortable, stable hunting experience.
Ultra-Low Power Consumption
Hunt all night long with optimized power efficiency. A single 18500 battery provides up to 7 hours of runtime, while two batteries easily last through an entire night of hunting. No more worrying about power—just focus on your hunt.
Built for Real Hunting Conditions
The Orion C is built tough to handle the demands of real-world hunting:
Recoil-resistant up to 6000 J – Stays stable even under heavy recoil, IP67 waterproof rating – Reliable performance in rain, fog, and harsh environments, No matter the conditions, the Orion C delivers stability and reliability when it matters most.
10-Year Warranty – Your Peace of Mind
We stand behind our products with an industry-leading 10-year warranty. If you ever encounter an issue, we’re here to support you. Your satisfaction and confidence are our top priorities.
400x300 @15mK
Thermal Sensor
Why using a thermal clip-on?
A thermal clip-on offers unmatched versatility and cost-efficiency compared to a dedicated thermal scope.
Clip-ons attach directly to your existing daytime optic, allowing you to switch seamlessly between thermal and traditional viewing without re-zeroing or carrying extra gear.
Whether you’re scanning for game at dawn or navigating low-light conditions, a thermal clip-on like the new Guide Orion delivers performance, convenience, and value
Why Choose the Orion C?
✔ 2-in-1 functionality – Clip-on and handheld monocular
✔ AI-enhanced thermal imaging for superior clarity
✔ Ultra-lightweight & compact for easy portability
✔ All-night battery life for uninterrupted hunting
✔ Rugged & weatherproof for real-world durability
✔ 10-year warranty for long-term reliability
Upgrade your hunting gear with the Orion C—where innovation meets performance.
