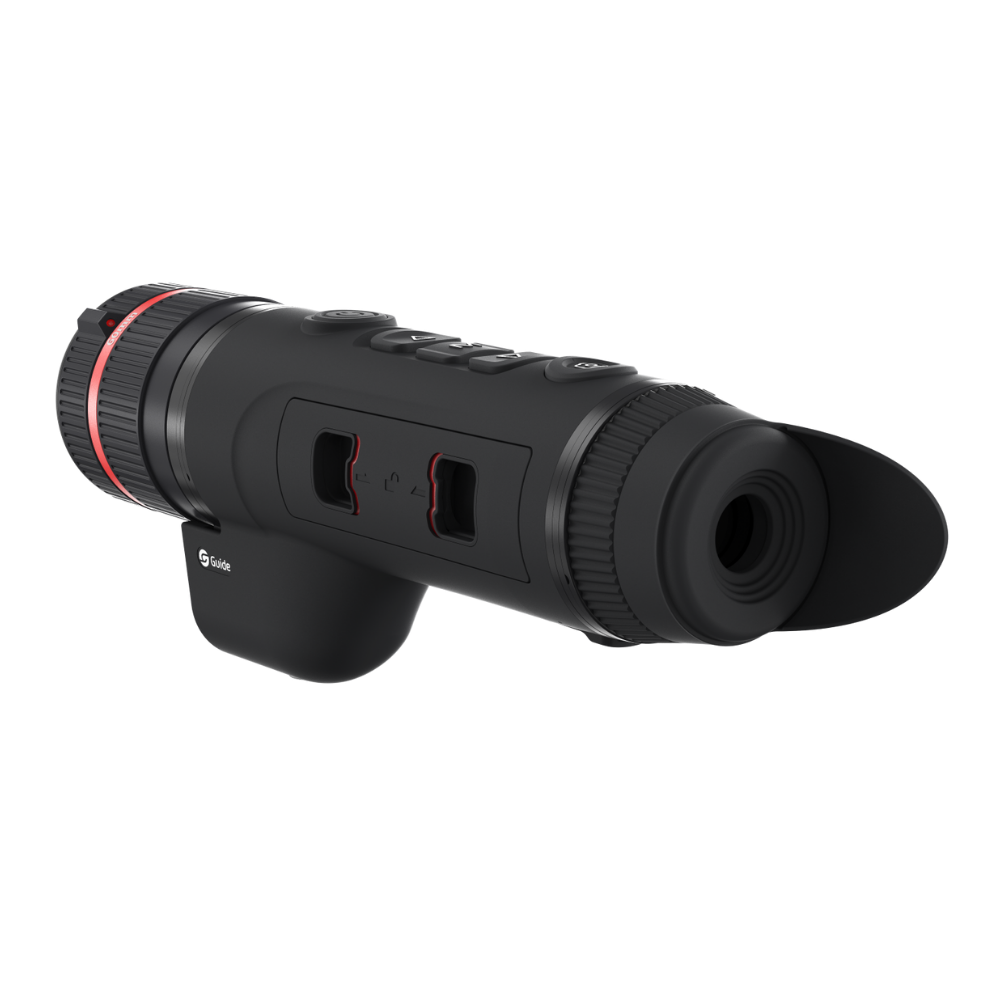

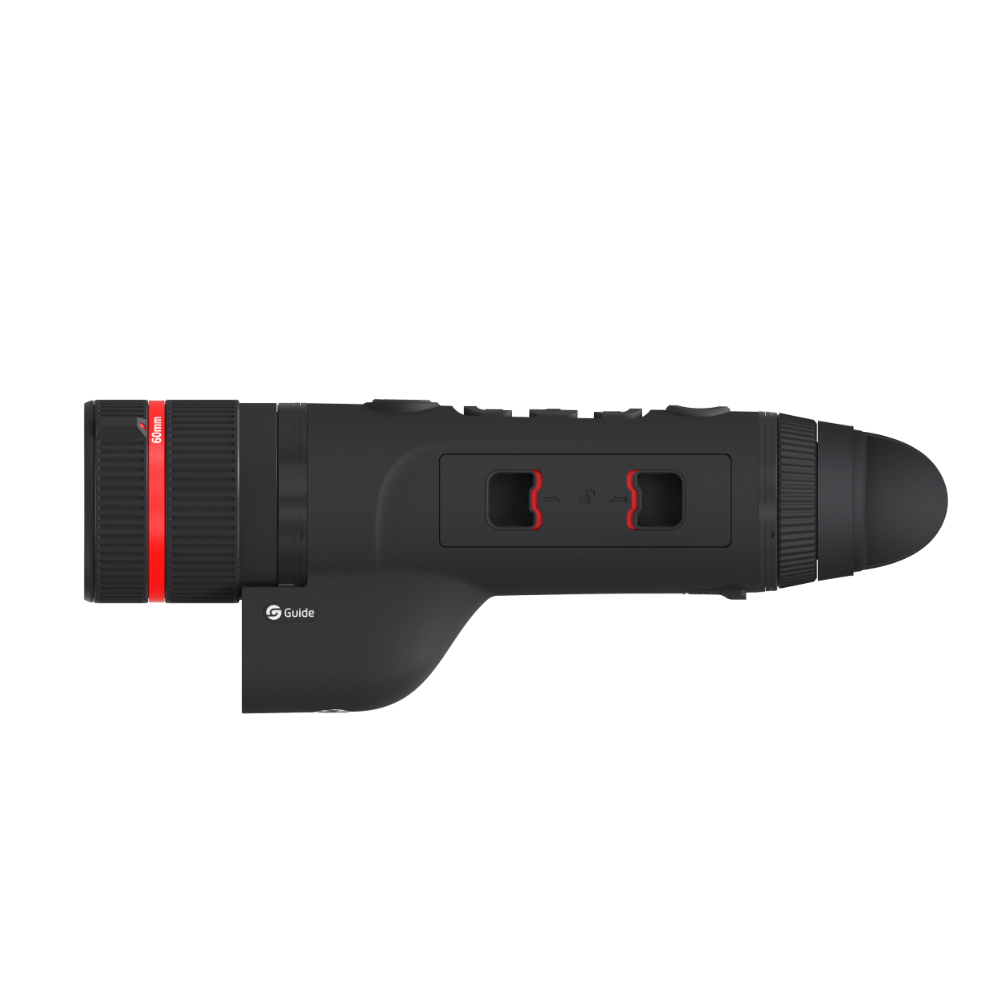

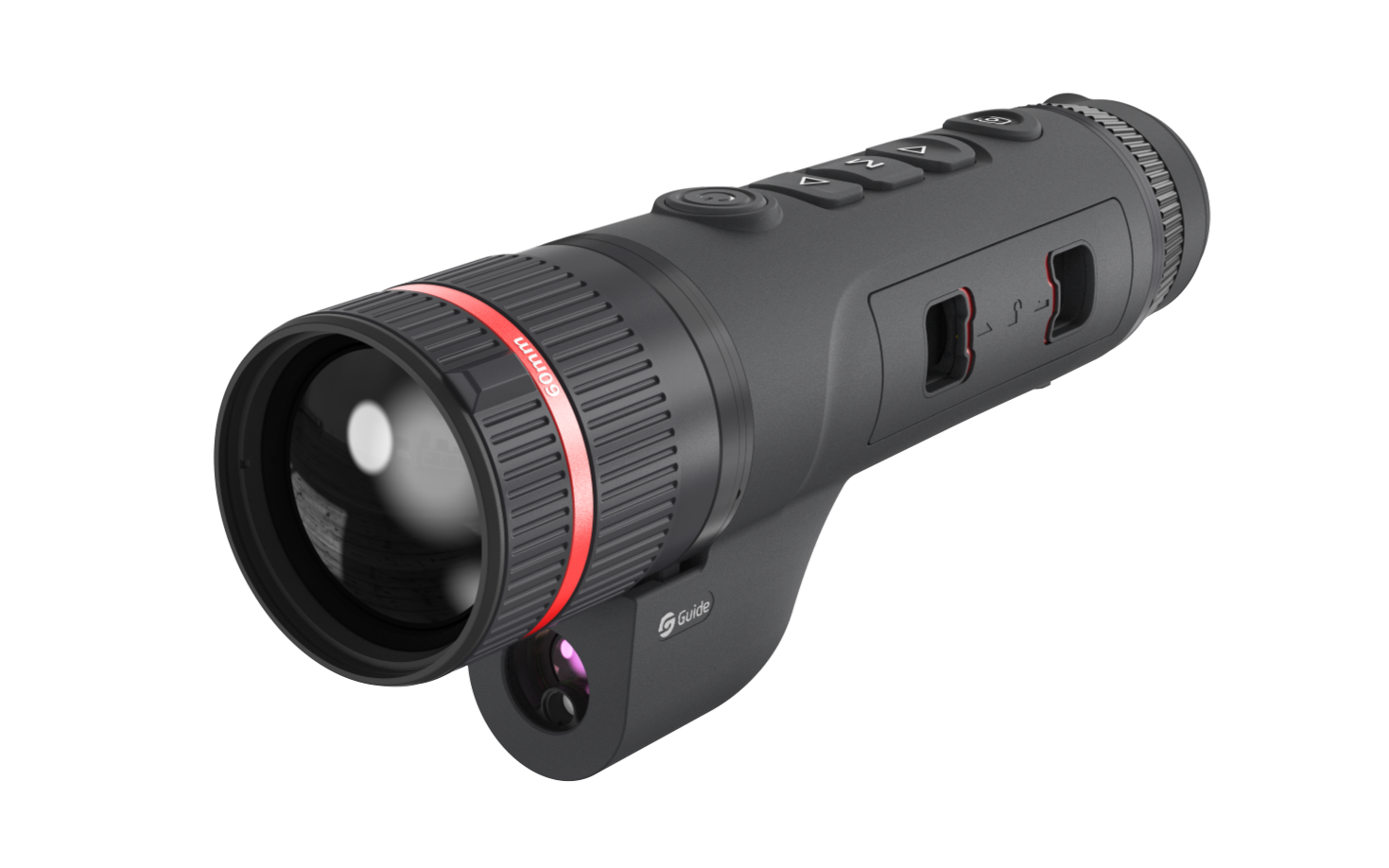

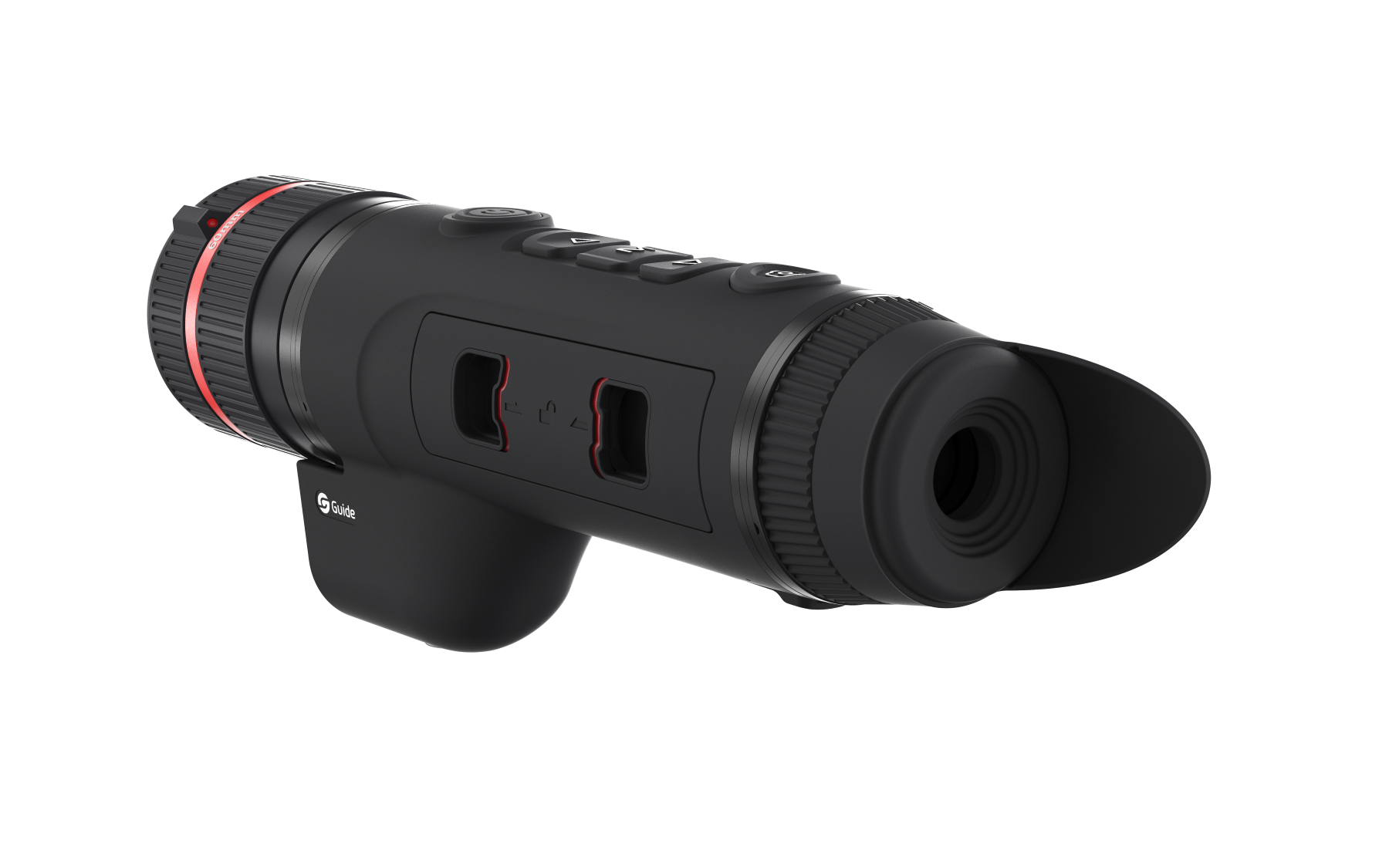

TJ 660 LRF ZOOM - DUAL Focus 20-60mm
Tax excluded. Shipping calculated at checkout
- Dual Field Of View
- 640×512@12μm Sensor Resolution
- 1090yd to 3350yd Detection Range
- 20mm, F0.9; 60mm, F1.1 Focal length
- 20Mk NETD
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||
| Resolution | 640×512@12μm | |||
| NETD | 20mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 20mm, F0.9; 60mm, F1.1 | |||
| Field of view | 21.7×17.5; 7.3×5.9 | |||
| FOV m@100m | 38×31; 13×10 | |||
| Magnification | 1.5x~12.0x; 4.5x~36x | |||
| Detection range | 1090yd; 3350yd | |||
| Display | ||||
|---|---|---|---|---|
| Display type | 0.39'' AMOLED 1920×1080 | |||
| Color palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia | |||
| Eyepiece | Eye relief: 16 mm; Diopter: -6 to +6; Zoom: 18x | |||
| Hardware | ||||
|---|---|---|---|---|
| Laser rangefinder | 1000m/1090yd | |||
| WIFI | 2.4G, 5G | |||
| Interface | USB Type-C (Power supply/USB2.0) | |||
| Others | Microphone, Compass, Gyroscope, Bluetooth | |||
| System | ||||
|---|---|---|---|---|
| Recording function | Photo/Video (Audio recording included) | |||
| Memory capacity | 64GB | |||
| Power | ||||
|---|---|---|---|---|
| Battery type | 2 replaceable 18650 batteries | |||
| Operating time | 10 hours | |||
| Environmental | ||||
|---|---|---|---|---|
| Operating temp. | -20°C to 50°C / -4°F to +122°F | |||
| Encapsulation | IP67 | |||
| Physical | ||||
|---|---|---|---|---|
| Weight (g/oz) | 784/27.65 | |||
| Size (mm/in) | 259×97×66/10.20×3.82×2.60 | |||
| Standard | A device, Wrist strap, Battery charger, 18650 battery×2, 5V2A adapter (US, Britain, Australia and Europe), USB Type-C cable, Quick use guide, Warranty card | |||
| Optional | Bluetooth remote control, 18650 battery | |||
1090 Yd
Integrated Laser rangefinder
3350 Yd
High-precision detection range
12um High sensitivity infrared detector
By utilizing a highly sensitive IR detector with a NETD<20mK, even the slightest temperature differences, can be distinguished resulting in sharper and clearer imaging.
1090 Yard laser ranging
The built-in laser rangefinder provides a long detection range up to 1090Yd, improving the capability to obtain the target distance and the long-distance perception.

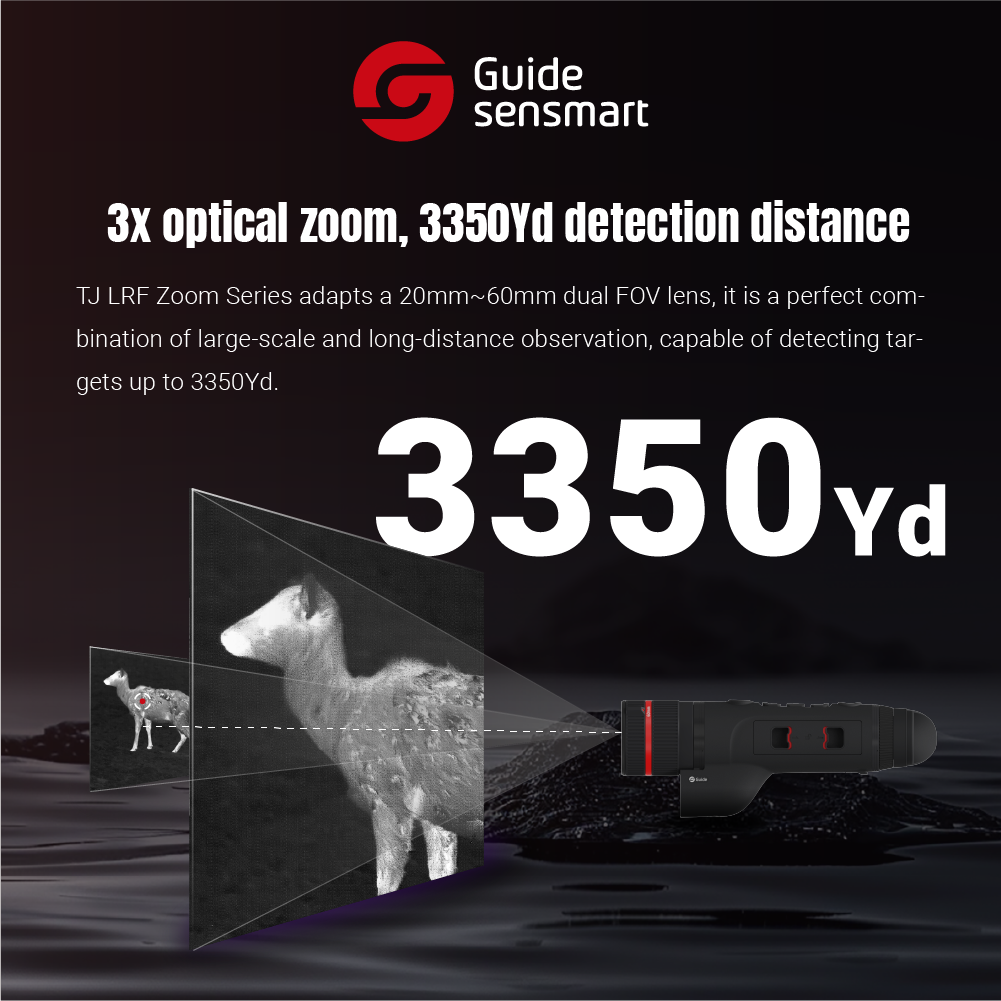

3x Opitcal Zoom, 3350 Yard detection distance
The TJ LRF ZOOM series adapts a 20mm to 60mm dual FOV lens, it is a perfect combination of large-scale and long-distance observation, capable of detecting targets up to 3350 Yard.
Ultra-large display, Optimal visual experiences
To present a better visual experience, hence improving the efficiency and comfort of outdoor exploration, the TJ LRF ZOOm has upgraded the display to provide a stunning visual effect like a 70-inch home theater at 2.5m distance
Easily change the focal lenghts
The TJ LRF ZOOM Series and its well-designed focus ring allow users to smoothly switch the focal lenghts from 20mm to 60mm within 1 second, and fine-tune the focus to get the perfect image of your targets.

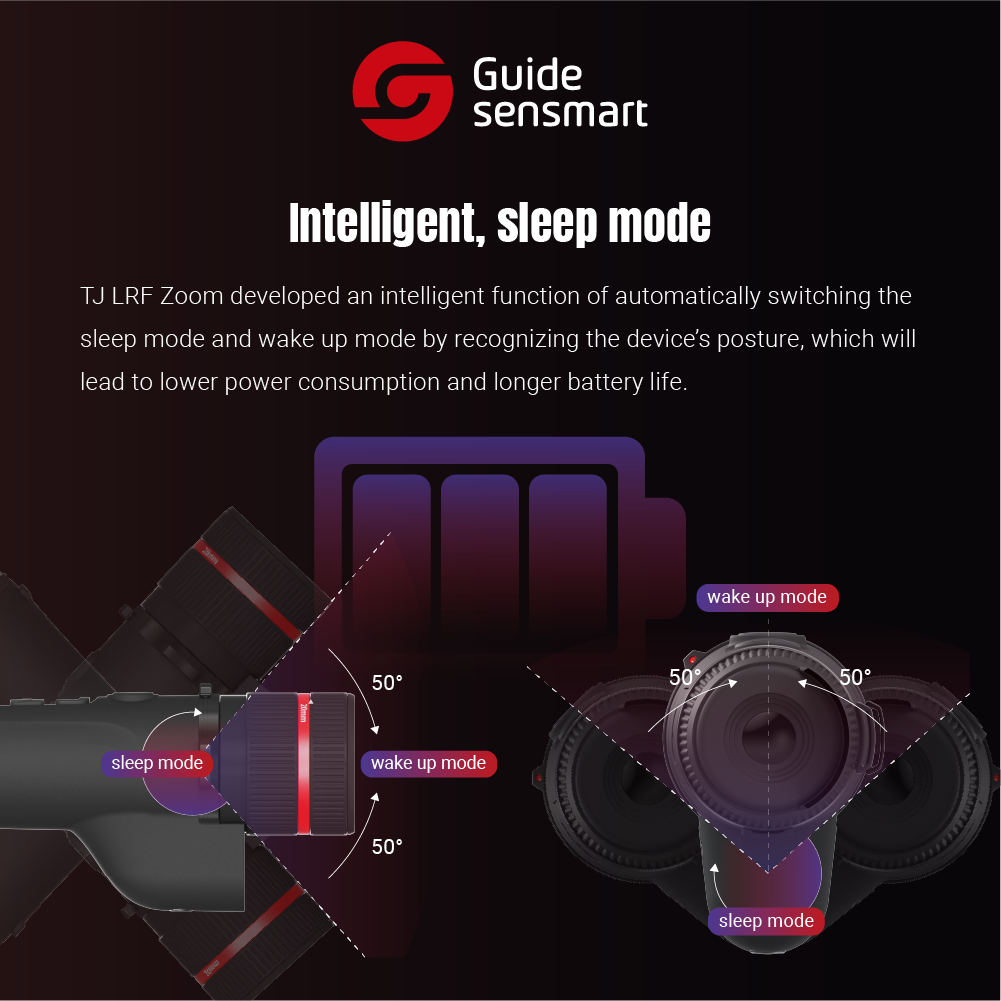

Intelligent sleep mode
The TJ LRF ZOOM developed an intelligent function of automatically switching the sleep mode and wake up mode by recognizing the device's posture, which will lead to lower power consumption and longer battery life.
