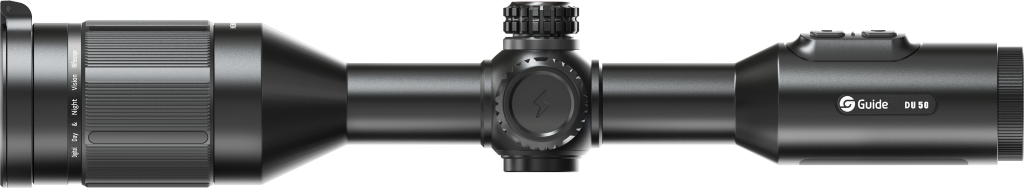

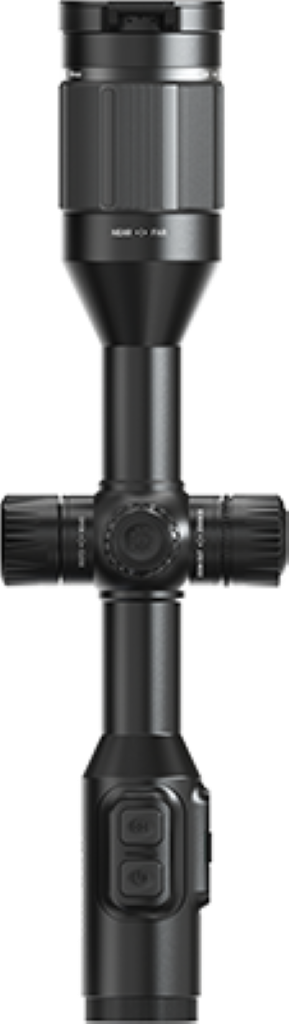

DU 50 - Night Vision Riflescope
| Sensor | ||||
|---|---|---|---|---|
| Type | CMOS | |||
| Resolution | 1920×1080@4μm | |||
| Frame rate | 50 Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 50mm, F1.2 | |||
| Field of view | 9°×5.2° | |||
| FOV m@100m | 16×9 | |||
| Magnification | 3.125x~25x | |||
| Detection range | 600m/650yd (850nm); 550m/600yd (940nm) | |||
| Display | ||||
|---|---|---|---|---|
| Display type | 0.39'' AMOLED 1920×1080 | |||
| Scene modes | Day, Night, Low-light | |||
| Eyepiece | Eye relief: ≥ 48 mm; Diopter ± 4; Zoom: 14x | |||
| Hardware | ||||
|---|---|---|---|---|
| IR illuminator | 850nm/940nm (Alternative) | |||
| WIFI | 2.4G | |||
| Interface | USB Type-C | |||
| Tube diameter | Standard 30 mm | |||
| System | ||||
|---|---|---|---|---|
| Recording function | Photo/Video | |||
| Memory capacity | 32 GB | |||
| Power | ||||
|---|---|---|---|---|
| Battery type | Single 18650 battery (built-in) and customized battery (external) | |||
| Operating time | 15 hours | |||
| Environmental | ||||
|---|---|---|---|---|
| Operating temp. | -30°C to 50°C / -22°F to +122°F | |||
| Shock | 800G at 1ms half sine pulse (as per IEC60068-2-27) | |||
| Encapsulation | IP67 | |||
| Physical | ||||
|---|---|---|---|---|
| Weight (g/oz) | 980/34.57 | |||
| Size (mm/in) | 371×107×68/14.61×4.21×2.68 | |||
| Standard | Device, Lens cover, Eye mask, 5V2A adapter (US, Britain, Australia and Europe), Customized battery×2, Customized battery charger, USB Type-C cable, Micro HDMI cable, Clip×2, IR illuminator, IR illuminator bracket, Quick start guide, Warranty card | |||
| Optional | Customized battery, Bluetooth controller, Laser rangefinder, Dovetail rail | |||
656 yd
Up to 656 yard of detection range with a 850 nm invisible IR illuminator
Day & Night use

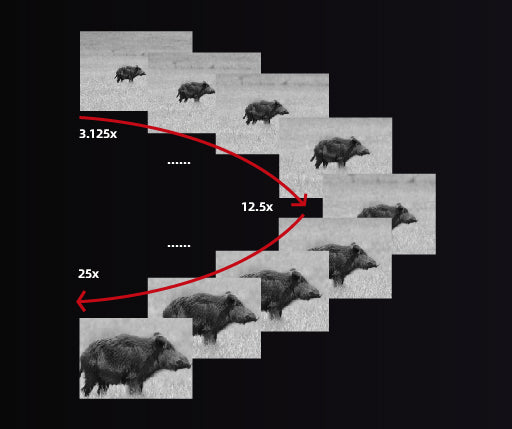

Flexible magnification from 3.125x to 25x
The Guide DU50 scope exhibits enhanced flexibility in search capabilities through an eightfold increase in base magnification, ranging from 3.125x to 25x. This augmentation enables expedited target acquisition, particularly advantageous during hunting scenarios.
TargetIR APP
Connecting your smartphone (Android or IOS) to your riflescope, thanks to the TargetIR APP via built-in WIFI, will allow you to share captured moment in real time.
15 Hours Super Long Battery Life
A single charge ensures a battery life of up to 15 hours, ample for prolonged and intensive use of the scope.
Flexible magnification from 3.125x to 25x
The Guide DU50 scope exhibits enhanced flexibility in search capabilities through an eightfold increase in base magnification, ranging from 3.125x to 25x. This augmentation enables expedited target acquisition, particularly advantageous during hunting scenarios.
TargetIR APP
Connecting your smartphone (Android or IOS) to your riflescope, thanks to the TargetIR APP via built-in WIFI, will allow you to share captured moment in real time.
15 Hours Super Long Battery Life
A single charge ensures a battery life of up to 15 hours, ample for prolonged and intensive use of the scope.
Day & Night Use
With 3 different viewing modes, ensure you will capture and display every detail
Day Mode
Night Mode
